VNA GUI reference

R&S

ZNL/ZNLE

465User Manual 1178.5966.02 ─ 20

Marker Config...

Opens the Multiple Marker Config dialog.

All Markers Off

See "All Off" on page 451.

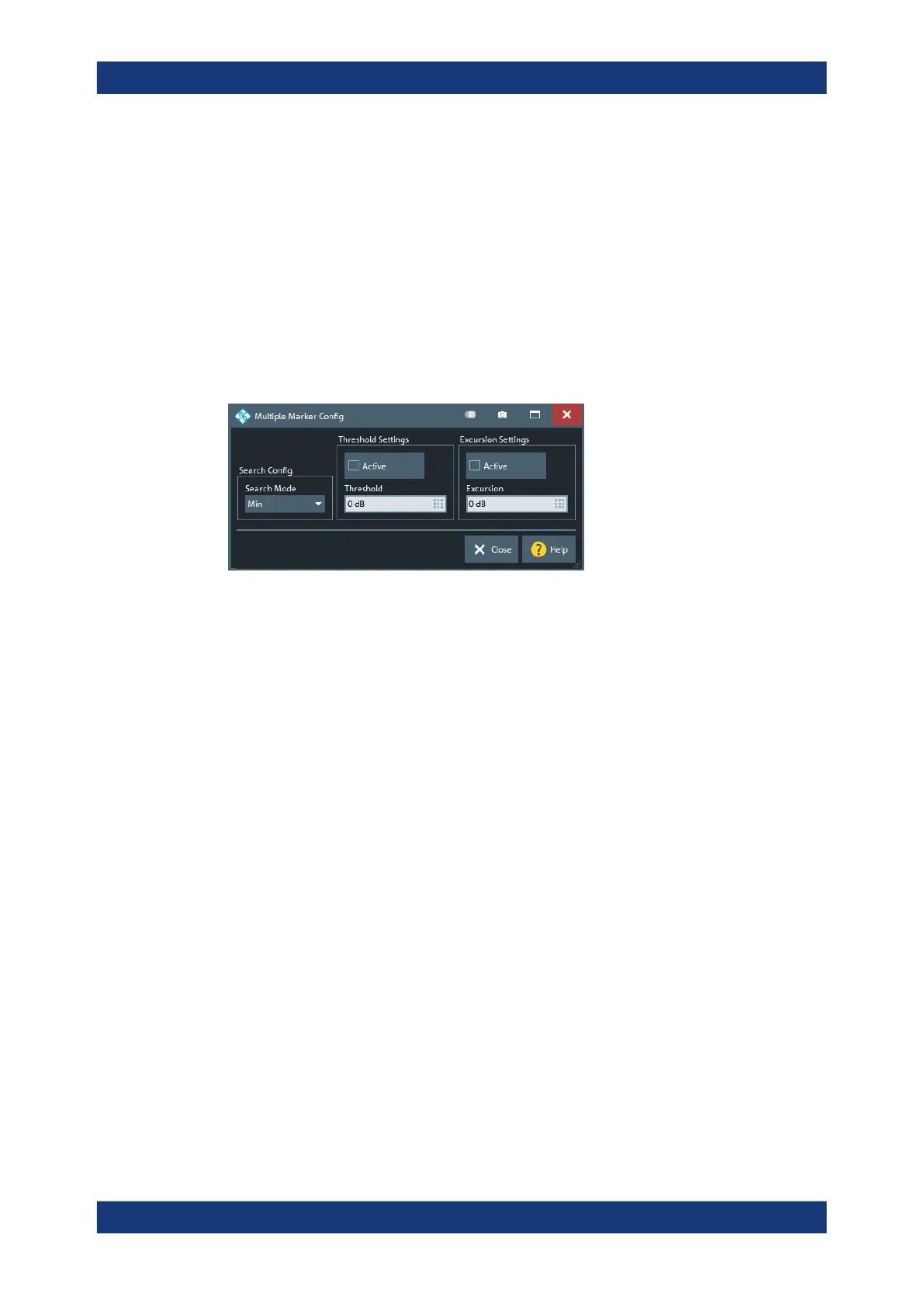

10.11.2.2 Multiple Marker Config dialog

The "Multiple Marker Config" dialog allows you to configure the multiple peak searches

for the active trace.

Access: [Mkr->] > "Multiple Peak" > "Marker Config..."

Search Config

Same as selecting Max / Min.

Remote command:

CALCulate<Chn>:MARKer<Mk>:FUNCtion:EXECute MMAXimum | MMINimum

CALCulate<Chn>:MARKer<Mk>:REFerence:FUNCtion:EXECute MMAXimum |

MMINimum

Threshold Settings

Defines a threshold for multiple peak searches and activates it.

If "Active", only maxima above and minima below the configured "Threshold" are con-

sidered.

The unit is derived from the active trace format and cannot be modified. Changing the

trace format resets the "Threshold" to a format-specific default value.

Remote command:

CALCulate<Chn>:MARKer:MPEak:THReshold

CALCulate<Chn>:MARKer:MPEak:THReshold:STATe

Excursion Settings

Defines a minimum excursion for multiple peak searches and activates it.

If "Active", only peaks with an excursion above the configured "Excursion" value are

considered. By definition, the excursion of a peak is the smaller of the absolute differ-

ences in measured values from the adjoining peaks of opposite polarity.

The unit is derived from the active trace format and cannot be modified. Changing the

trace format resets the "Excursion" to a format-specific default value.

Marker Search softtool
