For details, refer to "Connecting to power" on page 14 and Chapter 4.1.5, "Connecting
to power", on page 26.
4.2.2.2 Li-Ion battery packs and DC power connector
The Li-Ion battery pack and DC power connector are available as an optional acces-
sory (R&S FPL1-B31 and R&S FPL1-B30).
With the Li-ion battery pack, the R&S ZNL can be operated independently of an AC or
DC power supply. The instrument can house 2 Li-ion batteries which can be charged
both via AC or DC power supply.
For safety information concerning batteries, see "Handling batteries safely"
on page 15.
As an alternative, a DC power supply connector is available. DC power supplies from
+12 V to +24 V and from 13 A to 6.5 A can be used. Connect the connector according

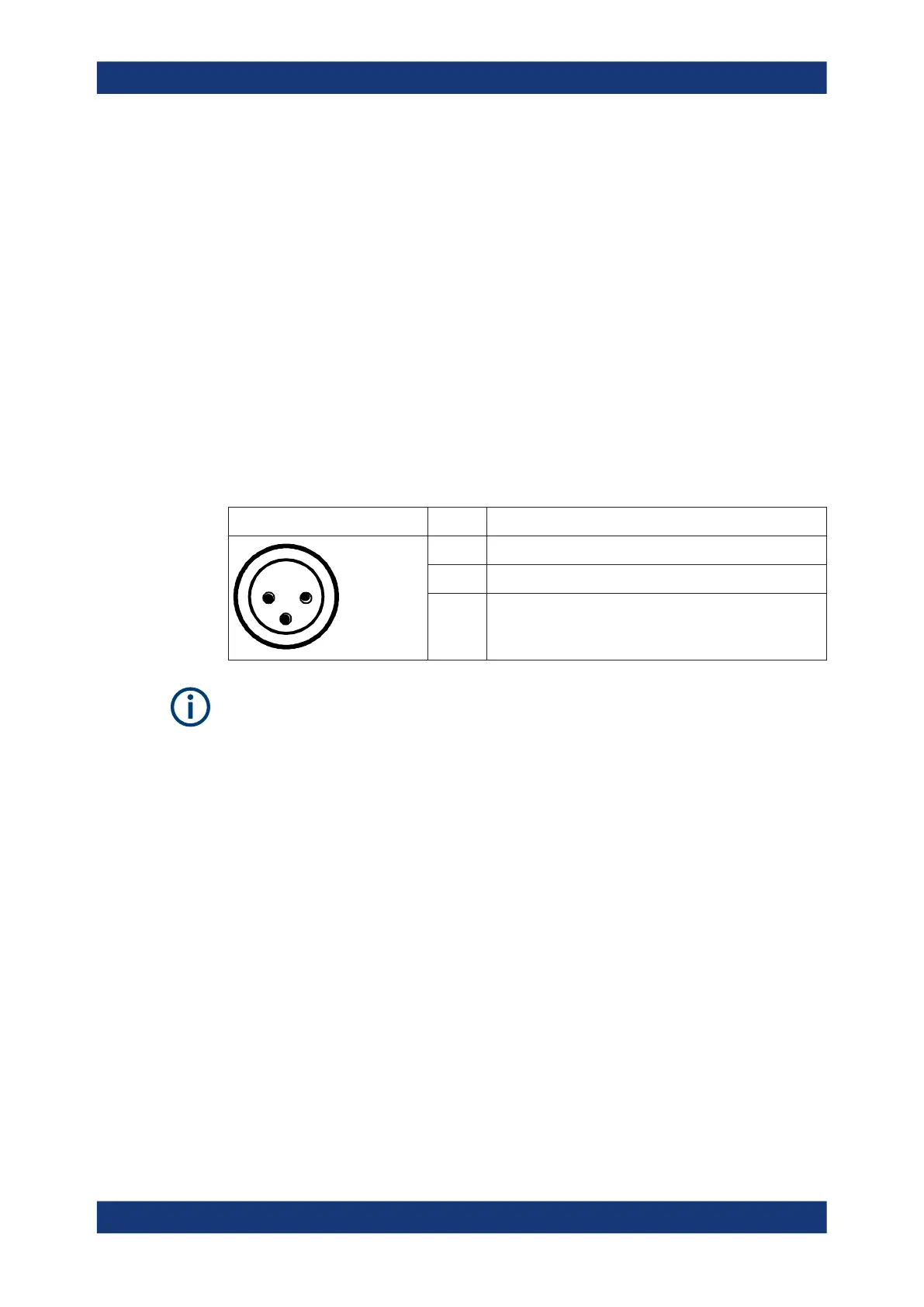

to the following diagram:
Pin Description
1 2
3
1 Plus
2 Ground
3 Not used
These options are not available for the R&S ZNLE.
If you use an external power supply unit to supply safety extra-low DC voltage (SELV)
to the instrument, be sure to meet the requirements for reinforced/double insulation in
accordance with DIN/EN/IEC 61010 (UL 3111, CSA C22.2 No. 1010.1) or DIN/EN/IEC
60950 (UL 1950, CSA C22.2 No. 950). Provide current limitation in accordance with
DIN EN 61010-1 Appendix F2.1.
Also see "Connecting to power" on page 14.
4.2.2.3 GPIB interface
The GPIB interface is available as an optional feature (R&S FPL1-B10).
The optional GPIB interface is in compliance with IEEE488 and SCPI. A computer for
remote control can be connected via this interface. To set up the connection, a shiel-
ded cable is recommended.
For details, see "Interfaces and Connectors" in the appendix of the user manual or
online help.
For details, see Chapter 14.2.2, "GPIB interface", on page 1112.
