VNA GUI reference

R&S

ZNL/ZNLE

508User Manual 1178.5966.02 ─ 20

Take OSM / Take All OSM and Through

"Take OSM" starts a calibration sweep for the related port. "Take All OSM and

Through" initiates a series of calibration sweeps; the R&S ZNL/ZNLE acquires a full set

of one-port and two-port data. The latter is required for the transmission normalizations

and for a "One Path Two Ports" calibration; see "Dependency between calibration

types and characterization data" on page 266.

Remote command:

[SENSe<Ch>:]CORRection:COLLect:AUTO

[SENSe<Ch>:]CORRection:COLLect:AUTO:PORTs

[SENSe:]CORRection:COLLect:AUTO:PORTs:CONNection?

Proceeds to Step 2: Save Characterization Data . Next is available when the R&S ZNL/

ZNLE has acquired characterization data for a single port.

Step 2: Save Characterization Data

Saves the characterization data to the calibration unit.

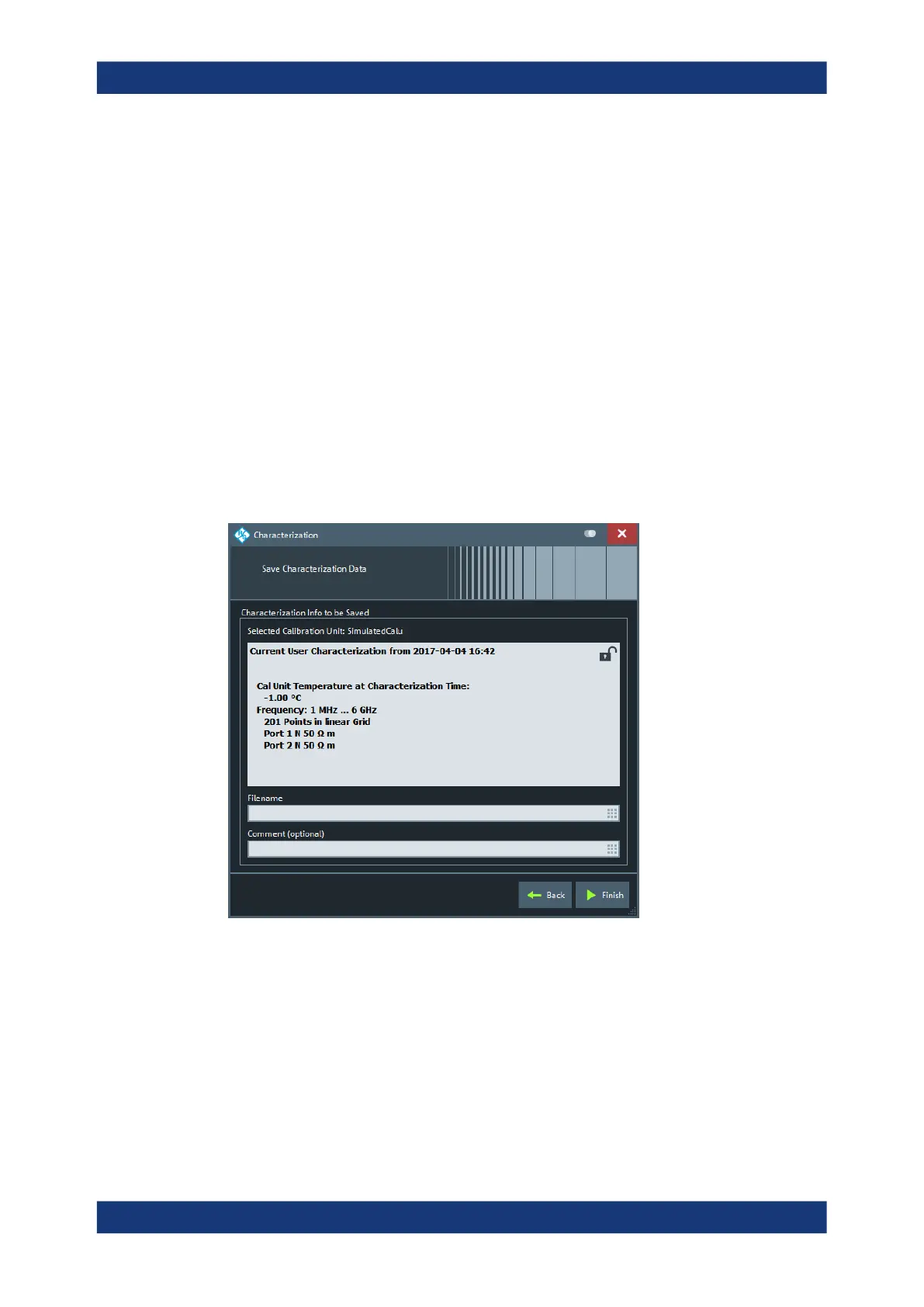

Figure 10-21: Save Characterization Data

Save File to SD Card

For all calibration units, characterization data can be saved to the calibration unit's

internal flash memory. For some calibration units (e.g. the new models R&S ZN-Z5x

and R&S ZN-Z15x), they can also be saved to an SD card inserted at the calibration

unit. Activate this checkbox to save the characterization data to the SD card.

Tip: If the characterized calibration unit does not have an SD card slot, the checkbox is

hidden. If the calibration unit has an SD card slot but the SD card is not accessible, the

checkbox is grayed out.
