Getting Started

R&S

ZNL/ZNLE

76User Manual 1178.5966.02 ─ 20

See Chapter 4.4.5, "Getting help", on page 82

Disconnect RF2

RF2 input off: Signal applied to the RF2 input is not measured (instead the signal path

of the calibration signal is used).

Frequency lock

Frequency does not change when you turn the rotary knob.

Only applies to the frequency. You can still change other parameters with the rotary

knob.

Windows

Displays the Windows "Start" menu and task bar.

See "To access the "Start" menu" on page 35.

4.4.2.2 Softtools

Softtools display groups of related settings as a tabbed panel. They can be opened via

function keys on the (virtual) front panel, or via context menu items.

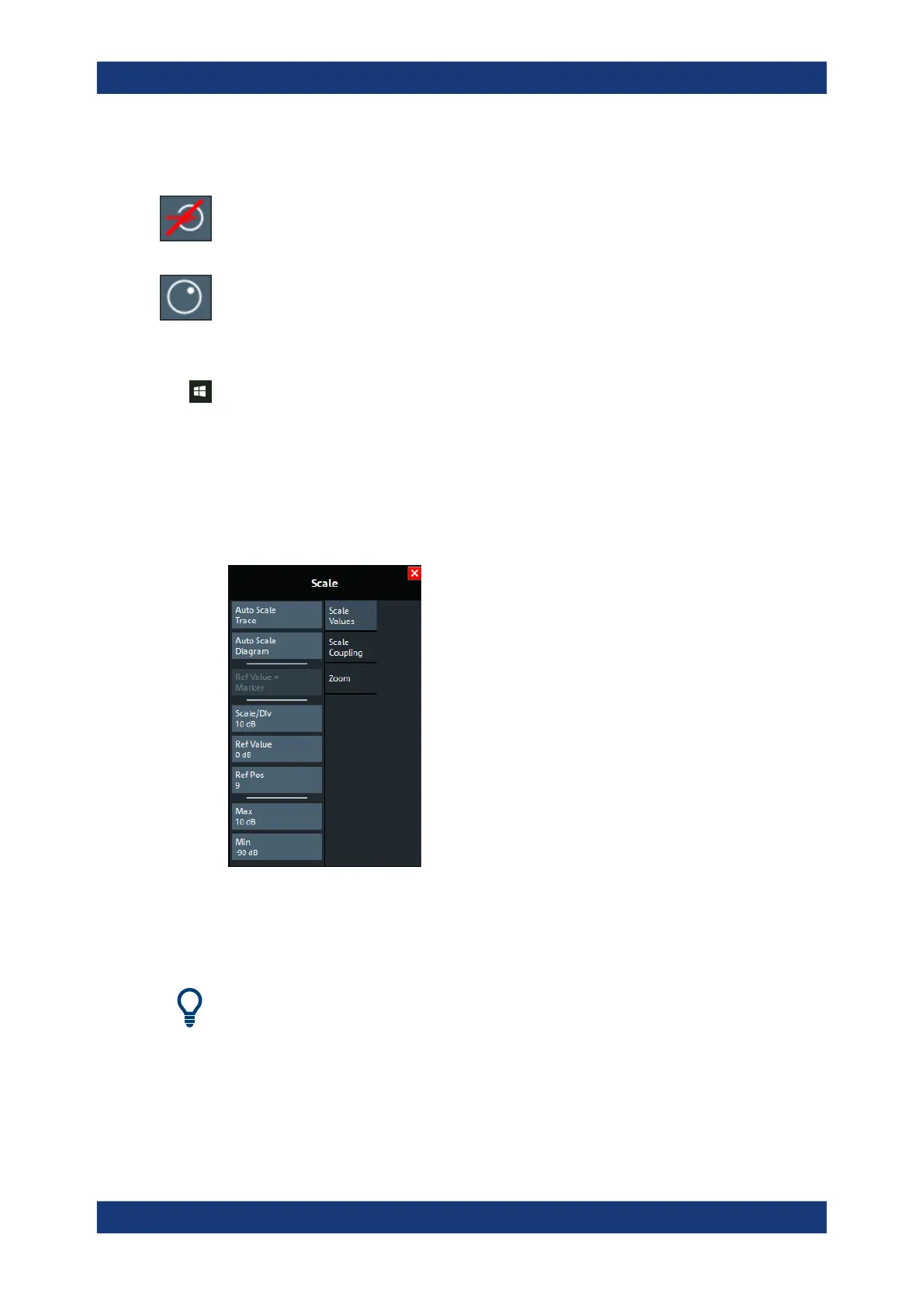

Figure 4-17: Scale softtool

The softtools are displayed in the softkey bar of the instrument. The title area of the

softkey bar displays the name of the currently opened softtool.

If you close the softkey bar using its close icon, it is automatically reopened the next

time a function key is pressed. You can change this behavior in the "User Interface" tab

of the "VNA Setup" dialog.

See "Pressing Hardkey Reactivates Softkey Bar" on page 142.

Operating the instrument
