Several Traces with Different Channel Settings...
Programming task: Create three channels with 3, 1 and 2 traces, respectively, and display the traces in
two diagram areas.
Important remote control features for this program example

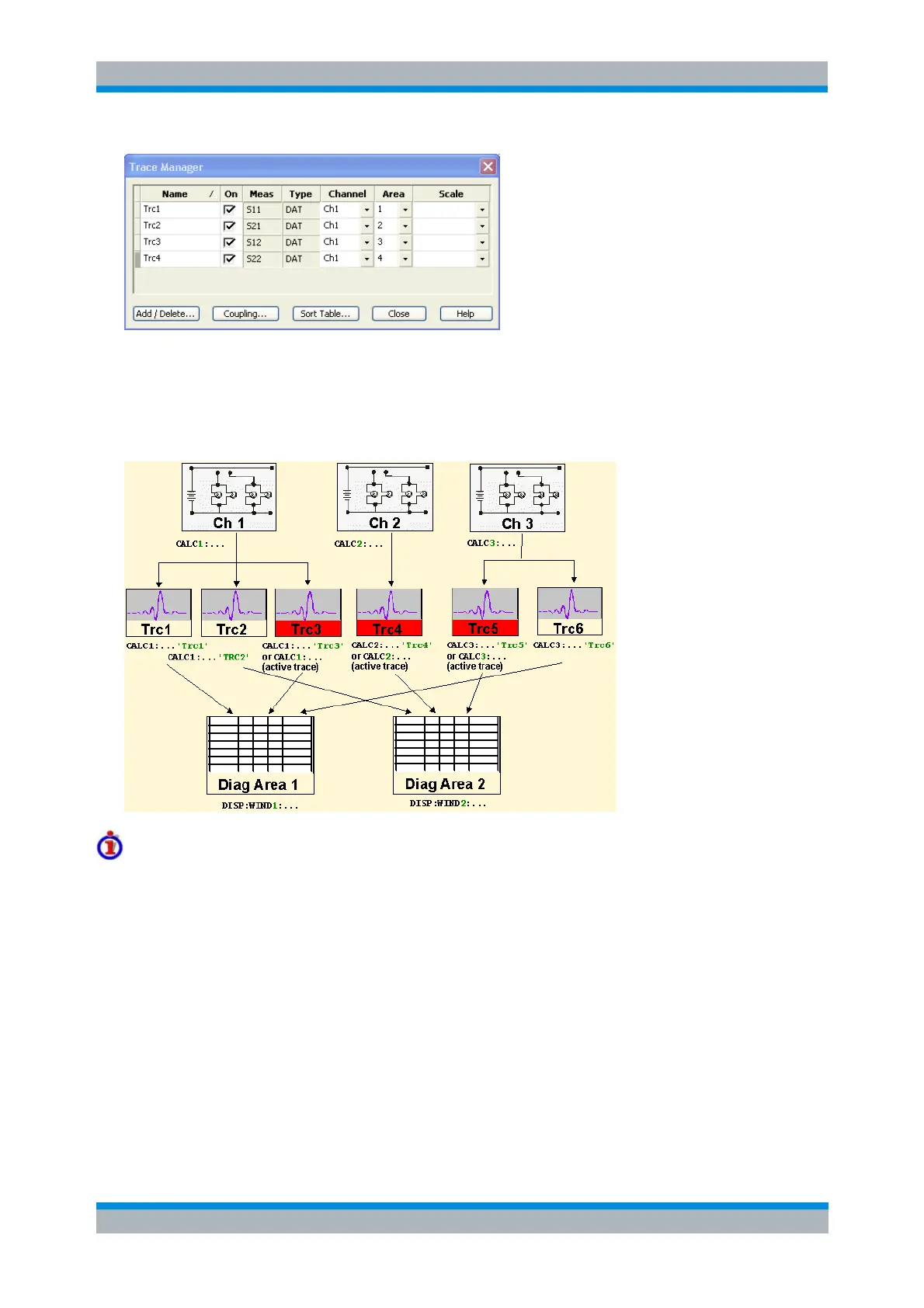

The following command sequence illustrates the structure of the remote commands discussed in section
Basic Remote Control Concepts. In particular it shows that:
 Channels are always referenced by a channel suffix.
 Traces are referenced by trace names. The active trace of a channel is often referenced by the
channel suffix.
 Diagram areas are referenced by a window suffix <Wnd>. An additional suffix <WndTr> in the
DISPlay:WINDow<Wnd>:TRACe<WndTr>... commands numbers the different traces in a
diagram area.
 The analyzer provides several commands allowing a smooth transition between remote and
manual control.
//
// 1. Create all channels and traces
