Channel Menu
Operating Manual 1145.1084.12 – 30 285
preparation and subsequent data processing stages.
Remote control:
OUTPut<Ch>:UPORt:BUSY:LINK

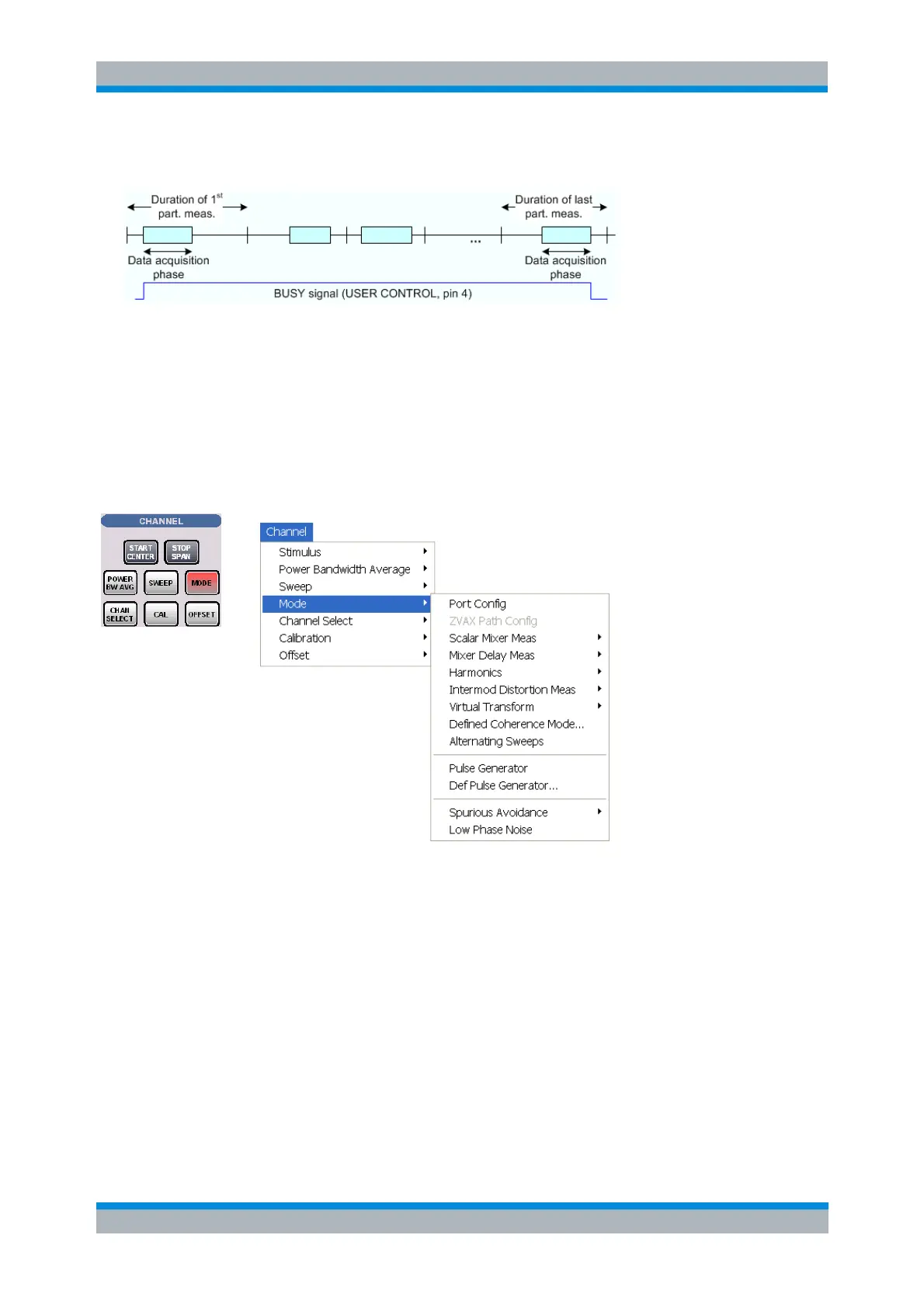

Mode
The Mode menu defines the properties of the physical and logical (balanced) test ports, configures the
source signals and the receiver, and provides special measurement modes. Many of the measurement
modes require option R&S ZVA-K4, Arbitrary Generator and Receiver Frequencies.
The items in the submenu depend on the analyzer type and on the installed options.
 Port Config... opens a dialog to define the properties of the test ports, the source and the receiver.
 Scalar Mixer Meas measures the mixing products generated by an external mixer that is supplied
with two independent RF signals.
 Mixer Delay Meas gives access to the measurement of the absolute or relative group delay of a
mixer.
 Harmonics provides arbitrary harmonic distortion measurements including power calibration.
 Intermod Distortion Meas opens a submenu to control intermodulation distortion measurements
including power calibration.
 Noise Figure Meas configures and activates the measurement of the noise figure of a DUT.
 Virtual Transform defines the parameters of a virtual matching network to be used for
