System Menu
Operating Manual 1145.1084.12 – 30 562

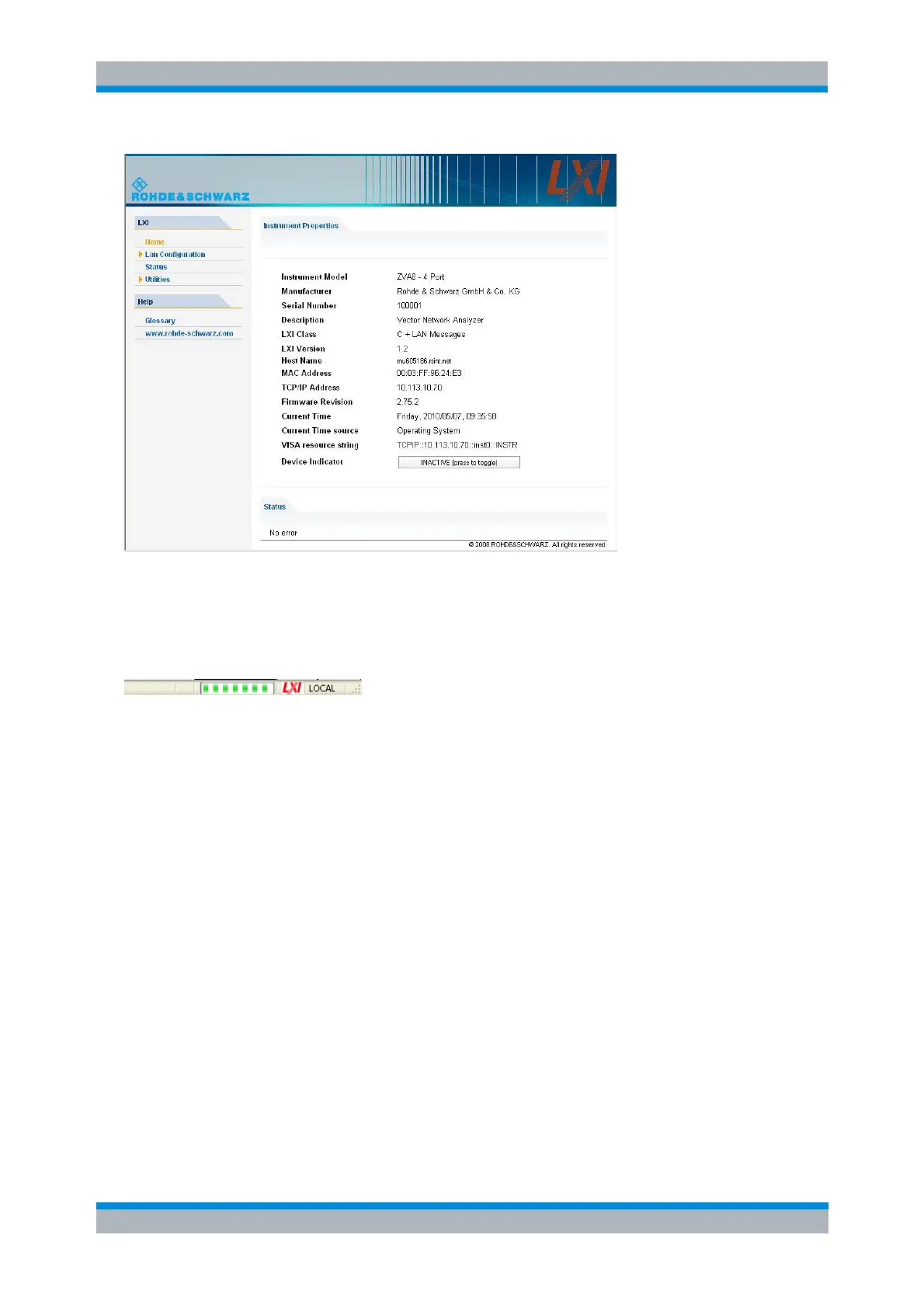

The instrument home page displays the device information required by the LXI standard including the
VISA resource string in read-only format. The Device Indicator toggle button causes the LXI symbol in the
status bar of the analyzer to blink (if active). A green LXI status symbol indicates that a LAN connection
has been established; a red symbol indicates that no LAN cable is connected. The Device Indicator setting
is not password-protected.
The navigation pane of the browser interface contains the following control elements:
 Lan Configuration opens the LAN Configuration page.
 Glossary opens a document with a glossary of terms related to the LXI standard.
 Status displays information about the LXI status of the instrument.
LAN Configuration
The Lan Configuration web page displays all mandatory LAN parameters and allows their modification.
