Universal Interface (R&S ZVA and R&S ZVB)
Operating Manual 1145.1084.12 – 30 1152
Data ports and related signals
Combined ports (Port E and Port F)
A combination of ports A / B and ports C /D provides two additional 16-bit and 8-bit-wide bidirectional
ports. The combined ports are termed ports E and F, respectively.

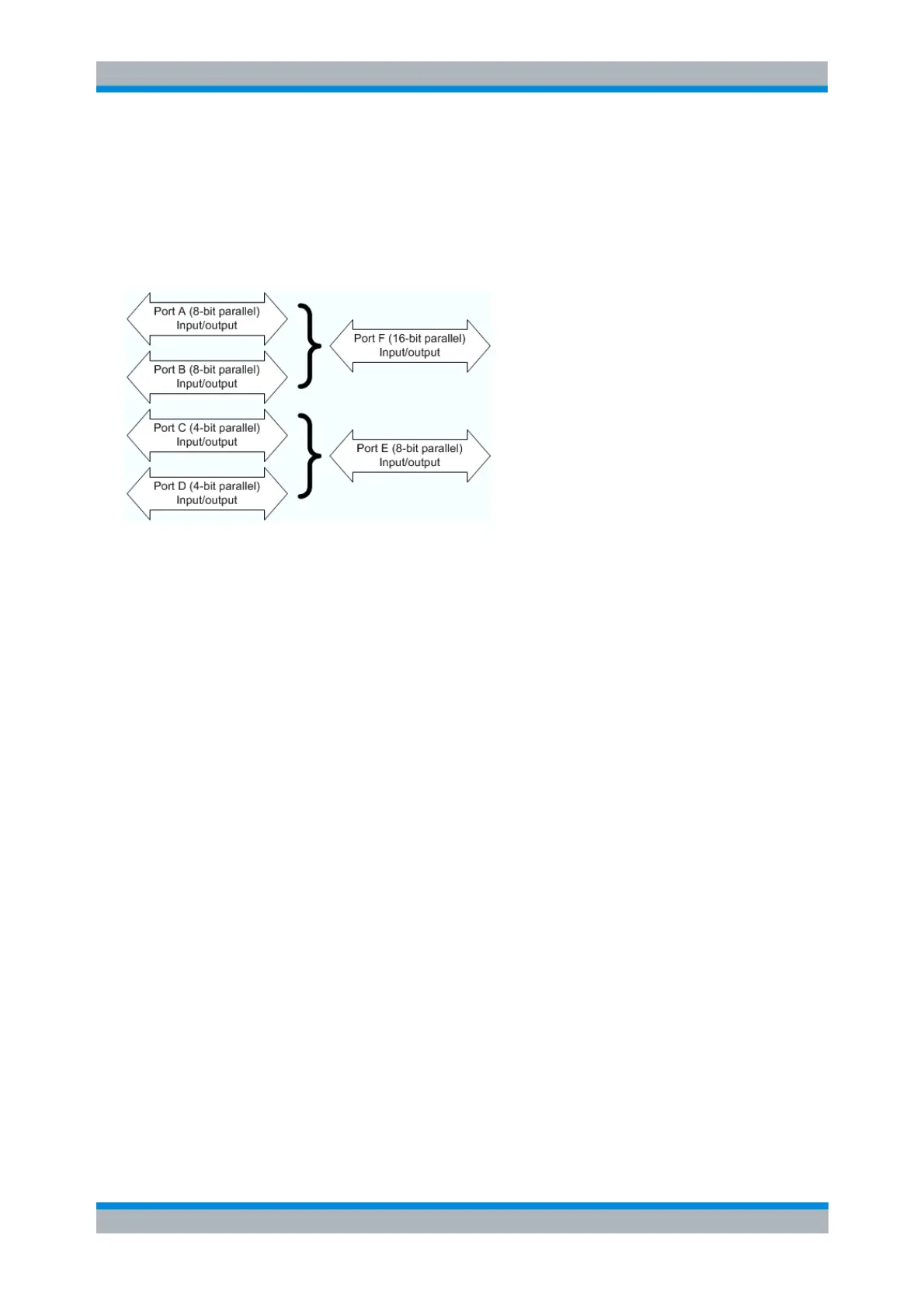

Definition of port E and port F
The properties of the combined ports are as follows:
 The signal direction (input or output) is according to the configuration of ports A, B, C, and D. To
write data to port E (F), both port C and port D (A and B) must be configured as output ports.
 Data can be read and written using the CONTrol:HANDler:E[:DATA] and
CONTrol:HANDler:F[:DATA] commands.
 The bit order is D3 ... D0 C3 ... C0 (port E) and B7 ... B0 A7 ... A0 (port F).
Remote control:
CONTrol:HANDler...
Universal Interface Connector
Option R&S ZVAB-B14, Universal Interface, must be installed by an R&S service representative. The
option includes a Centronics 36 input/output connector which is placed in the top left panel of the rear
panel. The pin assignment of the connector is shown below. A slash (/) at the beginning of the signal
name indicates that it is an active low (negative logic) signal.
