R&S
®
ZVA / R&S
®
ZVB / R&S
®
ZVT GUI Reference
Channel Menu
Operating Manual 1145.1084.12 – 30 347

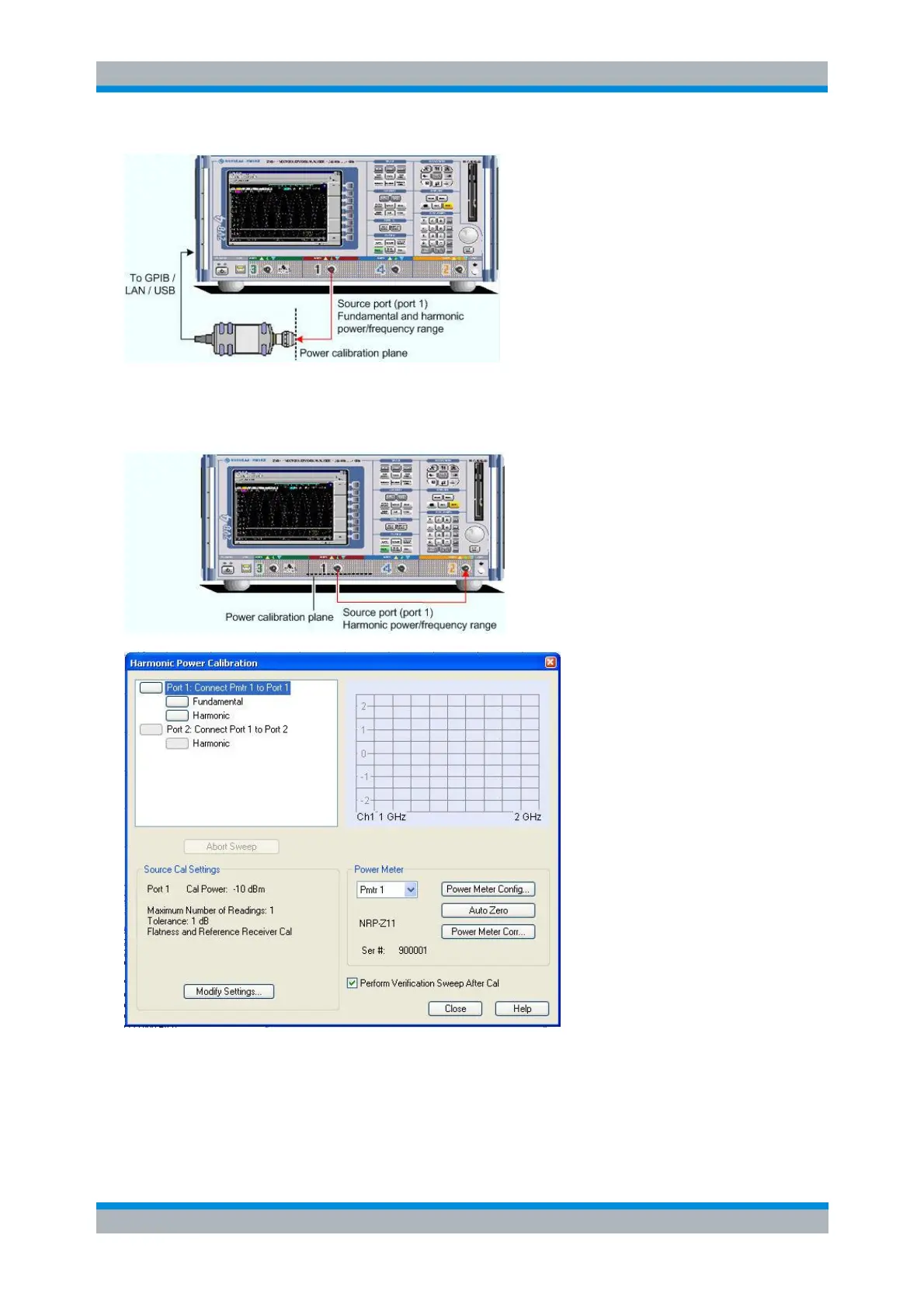

2. Receiver power calibration for the selected harmonic. No external device is needed. The receiver (port
2) is calibrated at the harmonic frequency using the source signal from port 1 (red) calibrated in the first
step.
A click in one of the boxes in the list of calibrations in the upper left part of the dialog starts the
calibration sweeps for the source and receiver calibrations, respectively. The measured power is
shown in the diagram to the right and the sweep progress in the message field below.
If a calibration cannot be performed using the currently selected settings, the respective box is
marked with an exclamation mark and an error description is shown in the lower left part of the
