R&S ZVB - Page 552

R&S
®
ZVA / R&S
®
ZVB / R&S
®
ZVT GUI Reference
System Menu
Operating Manual 1145.1084.12 – 30 537
The multiport test set can be configured to provide several channel-specific port groups. The "input" ports
(numbered 1 to 4) are connected to the corresponding network analyzer ports. The signal at each "input"
port is routed to one of the "output" ports 1 to 4, to be connected to the DUT. Signal routing is channel-
dependent, which makes it possible to connect and measure several DUTs in parallel.
Example: Create four analyzer channels no. 1 to 4. Use the "output" connectors A1, B1, C1, D1 for
channel no. 1, A2, B2, C2, D2 for channel no. 2 and so forth. This configuration allows you to perform
simultaneous four-port measurements on four DUTs.
The switch matrices are configured and operated using SCPI commands. A separate tool for LAN
configuration is supplied with the switch matrices. For details refer to the relevant operating manuals.

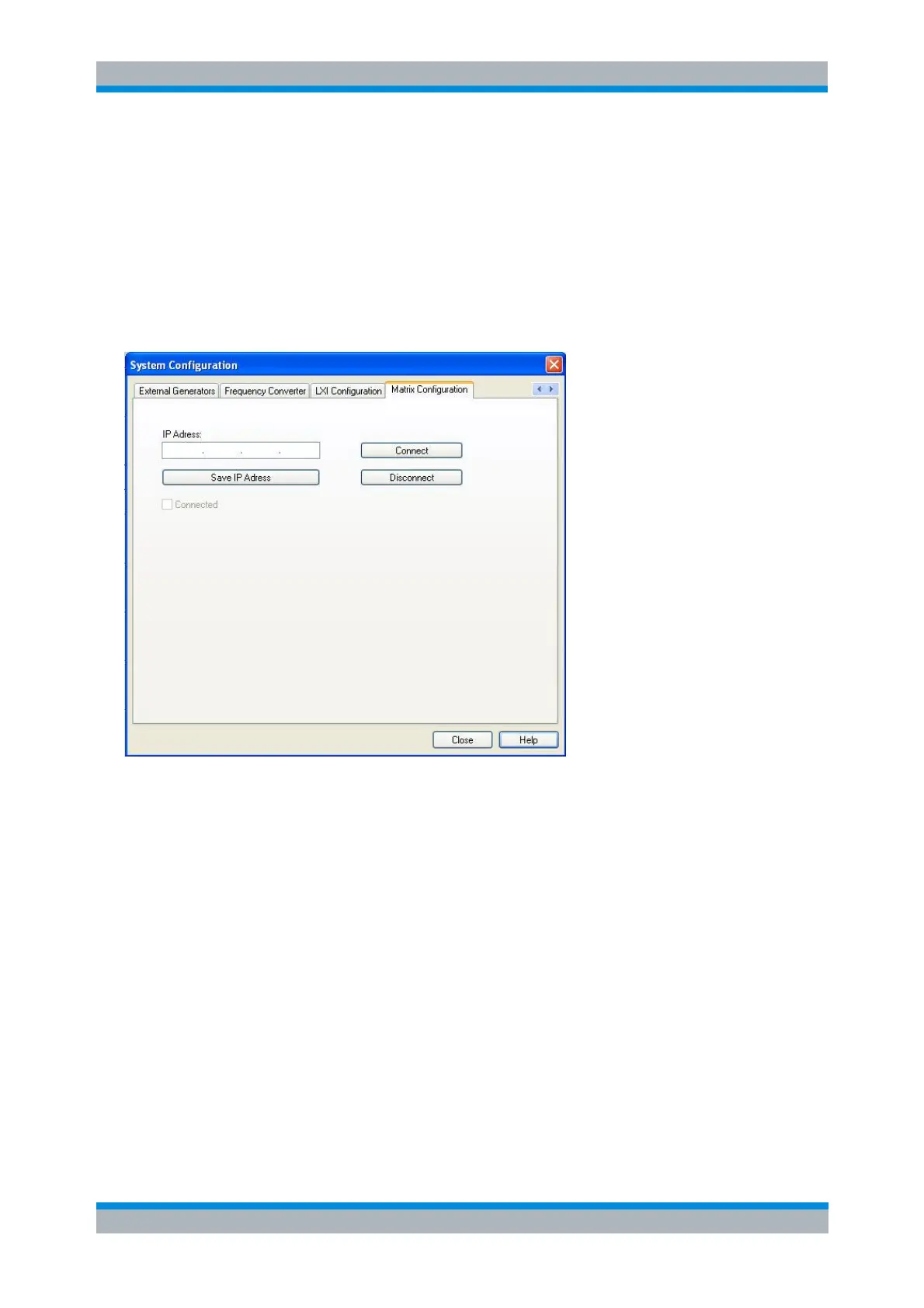

 The IP Address setting must correspond to the IP address of the multiport test set. Use the
LANCONFIG.EXE tool (supplied with the switch matrix/multiport test set) to determine the current
IP address. Press Save IP Address if you want to keep the current address for later connections.
 Connect/Disconnect establishes or closes the connection.
 The Connected box is checked while a connection is active. Unchecking the box is equivalent to
Disconnect.
Remote
control:
n/a
For internal path configuration of the switch matrix/multiport test set see ROUTe...
commands.
