System Menu
Operating Manual 1145.1084.12 – 30 566
 Flush logfile to disk / Clear current logfile writes the logging entries to an xml file on the internal
hard disk / clears the file. Use Download current logfile to load the xml contents into the browser
and save a copy.
 Dump the current state into a file creates a status file for debugging purposes.
 Get next displays the next entry in the log file.

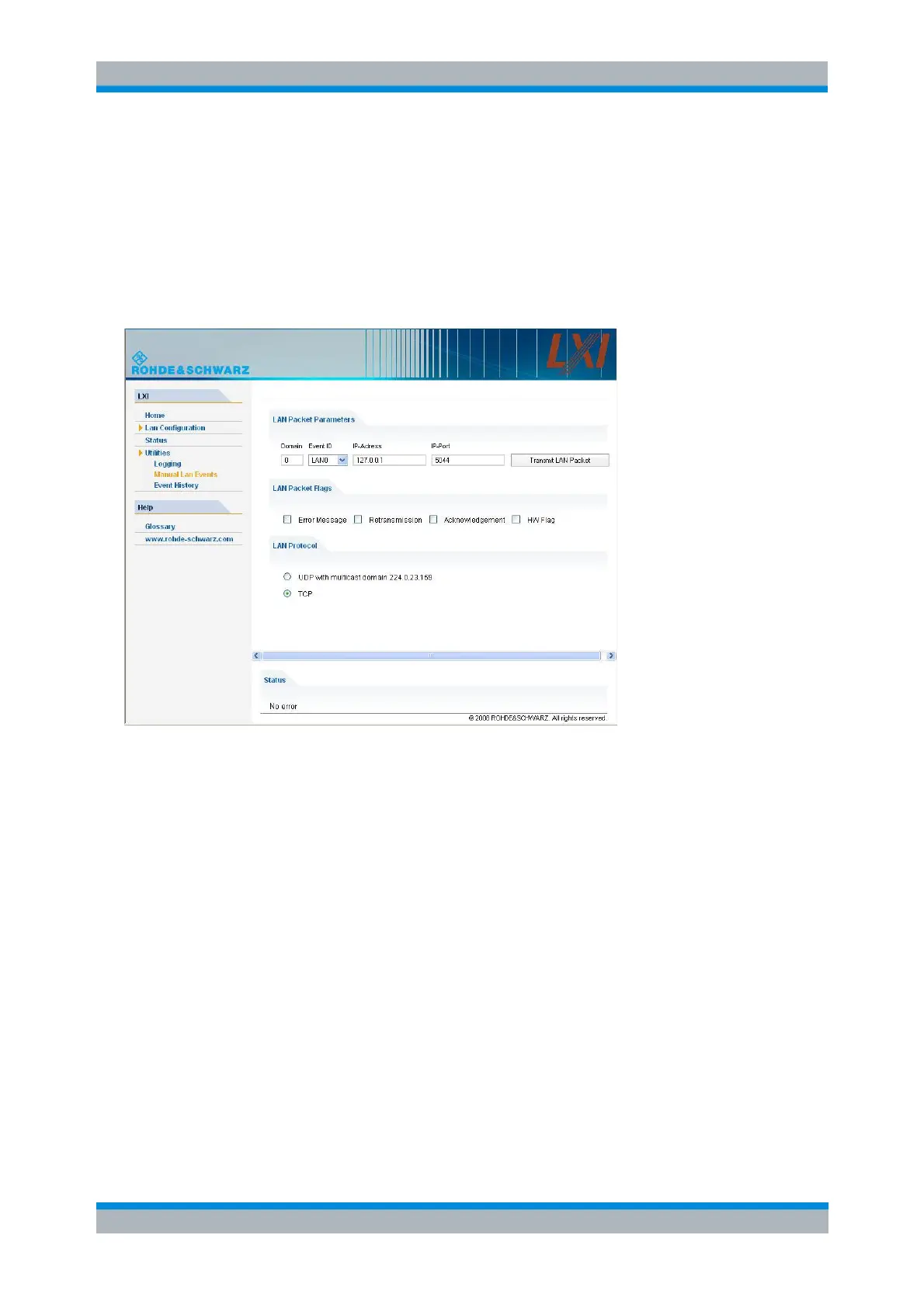

The Manual Lan Events page allows you to configure and transmit LAN packets. This can be used for
connection tests, similar to the ping functionality.
 Transmit LAN Packet transmits a single LAN packet to the selected IP address (for connections
using TCP) or port (for UDP-based connections).
 The LAN packet parameters and flags are described in the LXI standard.
The Event History page lists all received events, together with the event status. Transmit a LAN packet to
the network analyzer's own TCP address to test this functionality.
