R&S
®
ZVA / R&S
®
ZVB / R&S
®
ZVT Measurement Examples
Calibration
Operating Manual 1145.1084.12 – 30 78

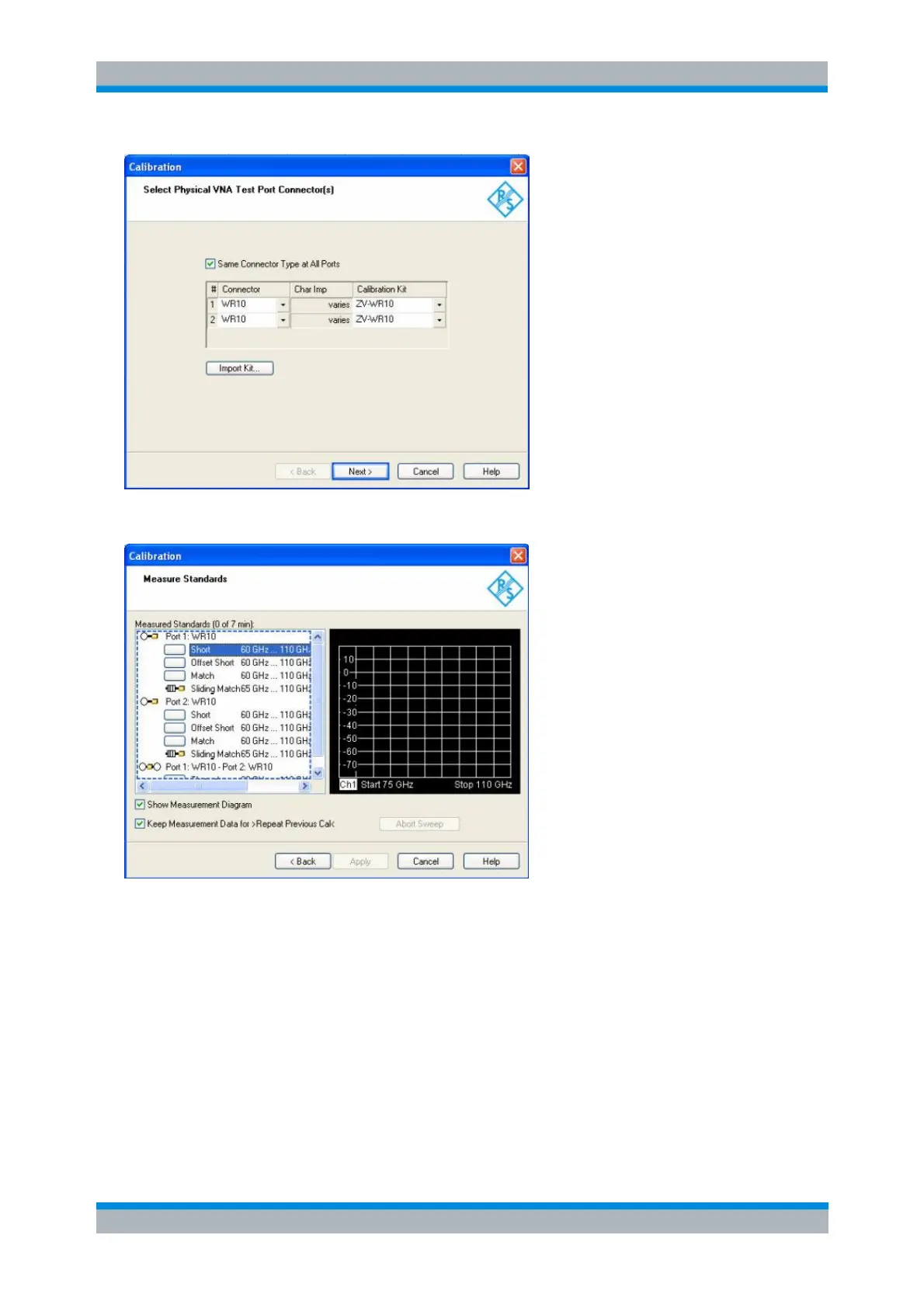

3. Click “Next” to proceed to the “Measure Standards” dialog.
4. Connect the Short standard from the calibration kit to the frequency converter no. 1 (the converter
with RF IN connected to the analyzer port no. 1) and click “Port 1: WR10” > “Short” to initiate the
calibration sweep.
5. Proceed in a similar way, using the Short and the Shim in the calibration kit (producing an “Offset
Short”) and the fixed Match.
6. Repeat the three one-port calibration sweeps at frequency converter no. 2 (the converter with RF
IN connected to the analyzer port no. 2).
7. Connect the two waveguide flanges directly and click “Port 1: WR10 – Port 2: WR10” > “Through”
to initiate the transmission calibration sweep.
8. Click “Apply” to calculate and apply the system error correction data and close the wizard.
