4-21

EIT

32180 Group User’s Manual (Rev.1.0)

4.12 Example of EIT Processing

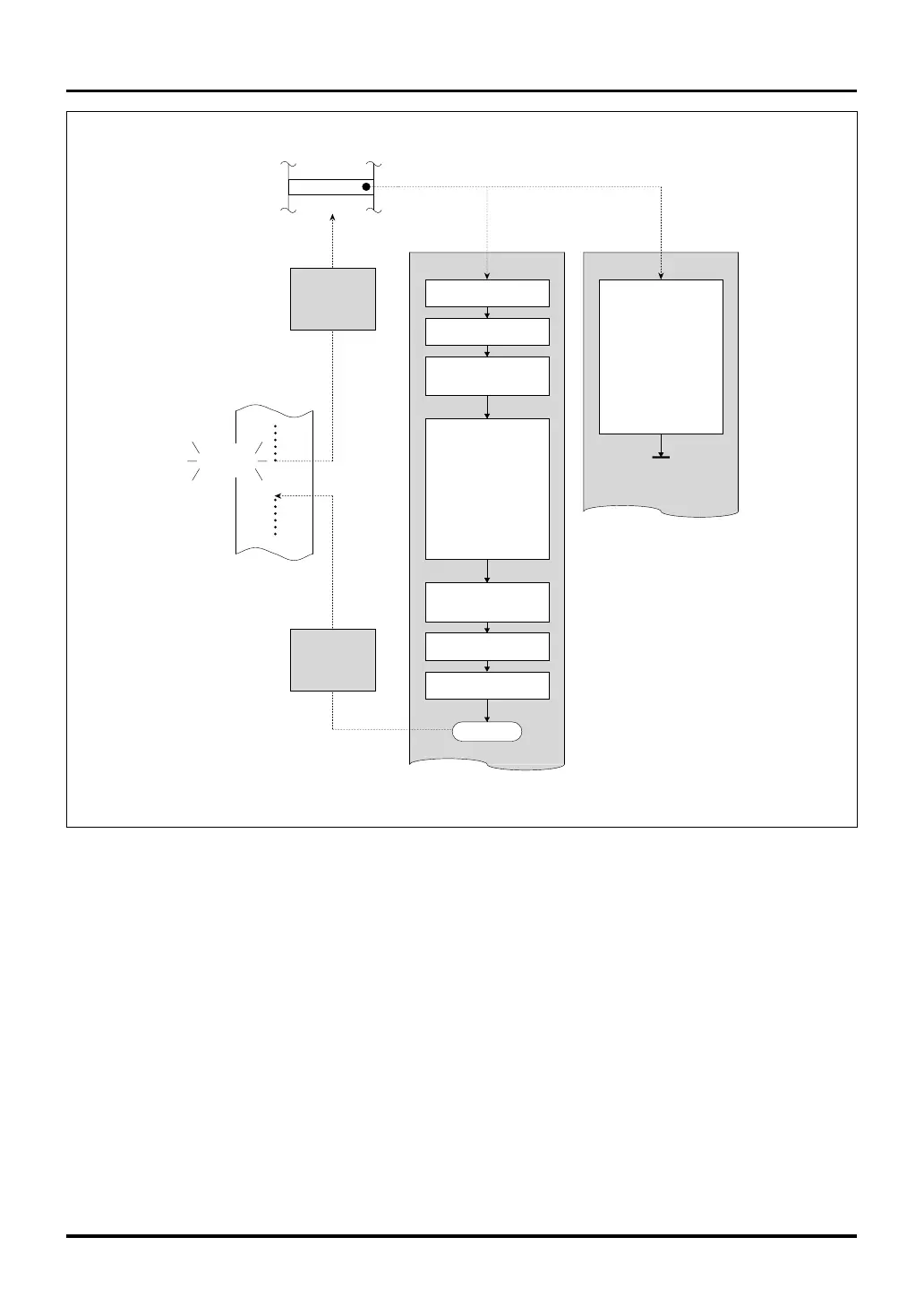

Figure 4.12.3 Example of EIT Processing

BRA instruction

RTE

EIT handler

EIT vector entry

Program being

executed

Save BPC to the stack

Save PSW to the stack

Save general-purpose

registers to the stack

Processing by

EIT handler

Restore general-purpose

registers from the stack

Restore PSW from the stack

Restore BPC from the stack

EIT event

occurs

(SBI)

System Break Interrupt

(SBI) processing

Program terminated

or system reset

(Other than SBI)

PC→BPC

PSW→BPSW

Hardware

preprocessing

Hardware

postprocessing

BPSW→PSW

BPC→PC

(Note 1)

Note 1: Indicates saving and restoring the PSW register bits between its PSW and BPSW fields.
