4.4 EIT Processing Mechanism

The EIT processing mechanism consists of the M32R CPU core and the interrupt controller for internal peripheral I/

Os. It also has the backup registers for the PC and PSW (the BPC register and the BPSW field of the PSW

4.4 EIT Processing Mechanism

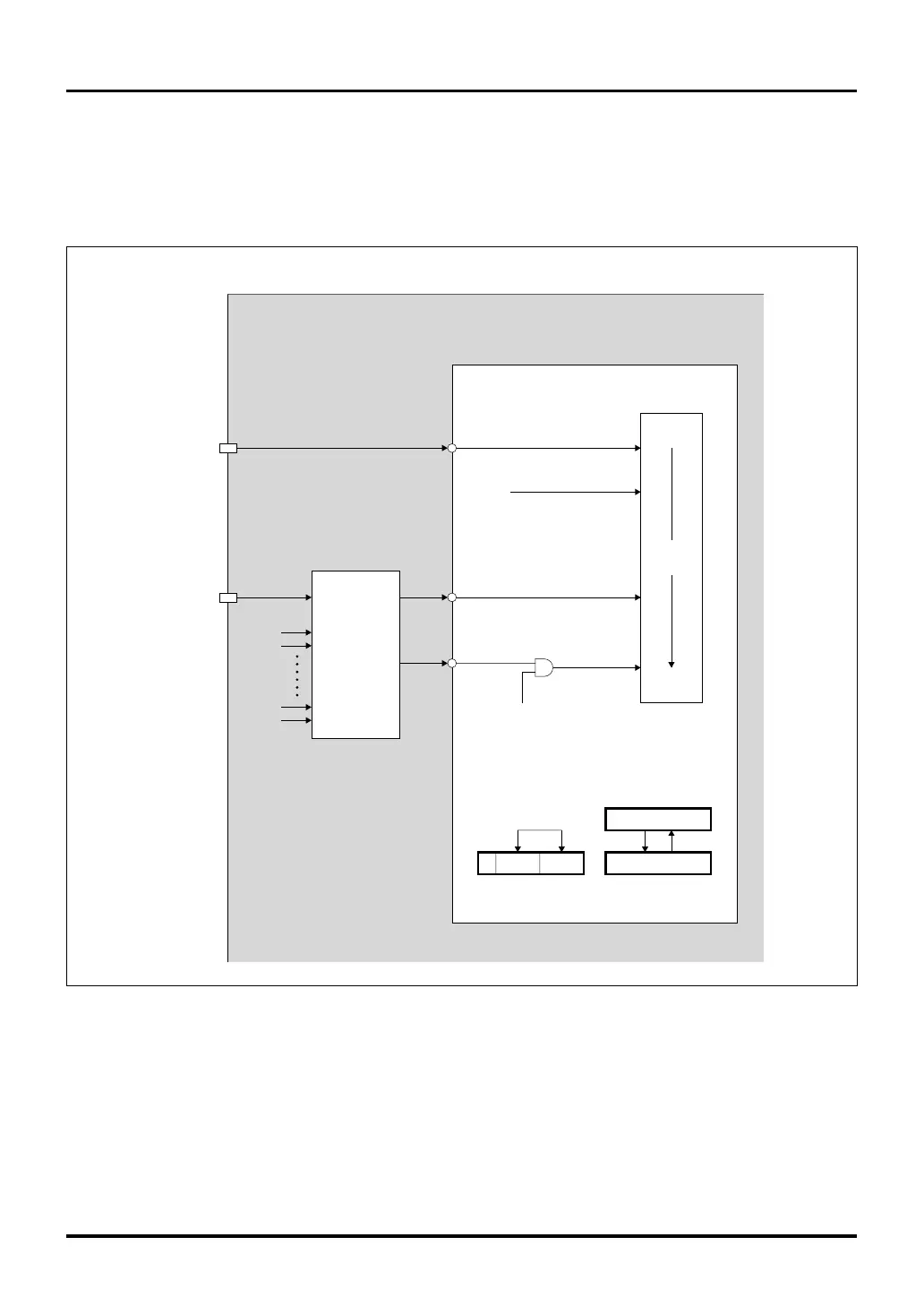

Figure 4.4.1 EIT Processing Mechanism

Interrupt

controller

(ICU)

SBI

Internal

peripheral

I/Os

RESET#

AE, RIE, FPE, TRAP

IE flag

(PSW)

M32R CPU core

SBI#

Low

High

Priority

SBI

M32R/ECU

PSW register

PSWBPSW

BPC register

PC register
