Renesas M32R/ECU Series - CAN Message Slots

13-57
13
32180 Group User’s Manual (Rev.1.0)
13.2 CAN Module Related Registers
CAN MODULE
13.2.15 CAN Message Slots
CAN0 Message Slot 0 Standard ID0 (C0MSL0SID0) <Address: H’0080 1100>
CAN0 Message Slot 1 Standard ID0 (C0MSL1SID0) <Address: H’0080 1110>
CAN0 Message Slot 2 Standard ID0 (C0MSL2SID0) <Address: H’0080 1120>
CAN0 Message Slot 3 Standard ID0 (C0MSL3SID0) <Address: H’0080 1130>
CAN0 Message Slot 4 Standard ID0 (C0MSL4SID0) <Address: H’0080 1140>
CAN0 Message Slot 5 Standard ID0 (C0MSL5SID0) <Address: H’0080 1150>
CAN0 Message Slot 6 Standard ID0 (C0MSL6SID0) <Address: H’0080 1160>
CAN0 Message Slot 7 Standard ID0 (C0MSL7SID0) <Address: H’0080 1170>
CAN0 Message Slot 8 Standard ID0 (C0MSL8SID0) <Address: H’0080 1180>
CAN0 Message Slot 9 Standard ID0 (C0MSL9SID0) <Address: H’0080 1190>
CAN0 Message Slot 10 Standard ID0 (C0MSL10SID0) <Address: H’0080 11A0>
CAN0 Message Slot 11 Standard ID0 (C0MSL11SID0) <Address: H’0080 11B0>
CAN0 Message Slot 12 Standard ID0 (C0MSL12SID0) <Address: H’0080 11C0>
CAN0 Message Slot 13 Standard ID0 (C0MSL13SID0) <Address: H’0080 11D0>
CAN0 Message Slot 14 Standard ID0 (C0MSL14SID0) <Address: H’0080 11E0>
CAN0 Message Slot 15 Standard ID0 (C0MSL15SID0) <Address: H’0080 11F0>
CAN1 Message Slot 0 Standard ID0 (C1MSL0SID0) <Address: H’0080 1500>
CAN1 Message Slot 1 Standard ID0 (C1MSL1SID0) <Address: H’0080 1510>
CAN1 Message Slot 2 Standard ID0 (C1MSL2SID0) <Address: H’0080 1520>
CAN1 Message Slot 3 Standard ID0 (C1MSL3SID0) <Address: H’0080 1530>
CAN1 Message Slot 4 Standard ID0 (C1MSL4SID0) <Address: H’0080 1540>
CAN1 Message Slot 5 Standard ID0 (C1MSL5SID0) <Address: H’0080 1550>
CAN1 Message Slot 6 Standard ID0 (C1MSL6SID0) <Address: H’0080 1560>
CAN1 Message Slot 7 Standard ID0 (C1MSL7SID0) <Address: H’0080 1570>
CAN1 Message Slot 8 Standard ID0 (C1MSL8SID0) <Address: H’0080 1580>
CAN1 Message Slot 9 Standard ID0 (C1MSL9SID0) <Address: H’0080 1590>
CAN1 Message Slot 10 Standard ID0 (C1MSL10SID0) <Address: H’0080 15A0>
CAN1 Message Slot 11 Standard ID0 (C1MSL11SID0) <Address: H’0080 15B0>
CAN1 Message Slot 12 Standard ID0 (C1MSL12SID0) <Address: H’0080 15C0>
CAN1 Message Slot 13 Standard ID0 (C1MSL13SID0) <Address: H’0080 15D0>
CAN1 Message Slot 14 Standard ID0 (C1MSL14SID0) <Address: H’0080 15E0>
CAN1 Message Slot 15 Standard ID0 (C1MSL15SID0) <Address: H’0080 15F0>

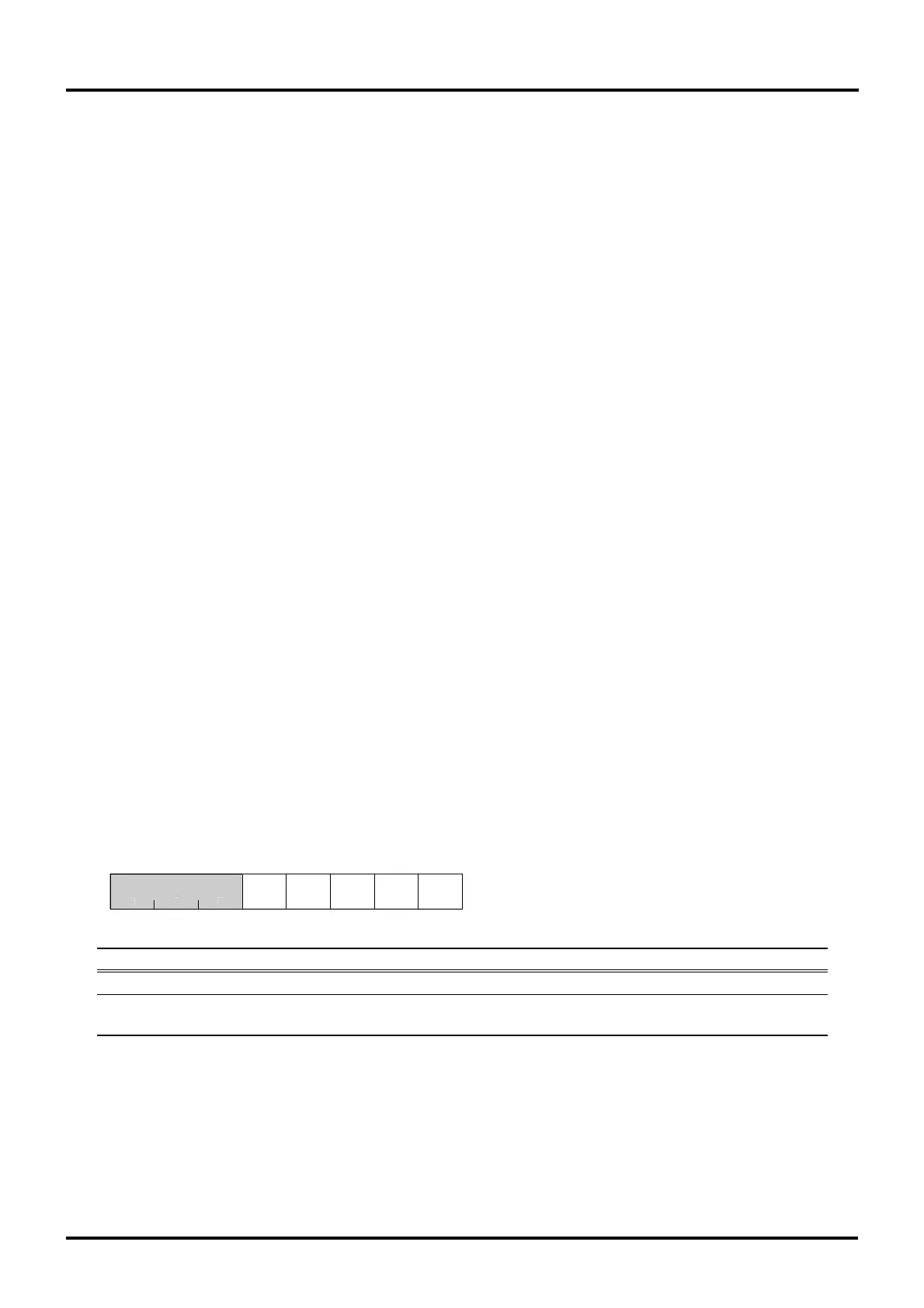

123456b7b0
SID1SID0 SID2 SID3 SID4
?????
?
?
?
<After reset: Undefined>
b Bit Name Function R W
0–2 No function assigned. Fix to "0". 00
3–7 SID0–SID4 Standard ID0–standard ID4 R W
(Standard ID0–standard ID4)
These registers are the memory space for transmit and receive frames.
