4.2 EIT Events

4.2.1 Exception

(1) Reserved Instruction Exception (RIE)

Reserved Instruction Exception (RIE) occurs when execution of a reserved instruction (unimplemented

instruction) is detected.

(2) Address Exception (AE)

Address Exception (AE) occurs when an attempt is made to access a misaligned address in Load or Store

instructions.

(3) Floating-point Exception (FPE)

Floating-point Exception (FPE) occurs when Unimplemented Exception (UIPL) or one of the five exceptions

specified in the IEEE 754 standard (OVF/UDF/IXCT/DIV0/IVLD) is detected. Each exception processing is

outlined below.

1) Overflow Exception (OVF)

The exception occurs when the absolute value of the operation result exceeds the largest describable

precision in the floating-point format. The following table shows the operation results when an OVF oc-

curs.

Table 4.2.1 Operation Results When an OVF Occurred

Operation Result (Content of the Destination Register)

When the OVF EIT processing is

masked (Note 1)

When the OVF EIT processing is

executed (Note 2)

+ +MAX

- -Infinity

+ +Infinity

- -MAX

+ +MAX

- -MAX

+ +Infinity

- -Infinity

No change

Sign of the Result

-Infinity

+Infinity

Rounding Mode

Nearest















Note 1: When the overflow exception enable (EO) bit (FPSR register bit 20) = "0"

Note 2: When the overflow exception enable (EO) bit (FPSR register bit 20) = "1"

Note: • If an OVF occurs while EIT processing for OVF is masked, an IXCT occurs at the same time.

• +MAX = H’7F7F FFFF, –MAX = H’FF7F FFFF

2) Underflow Exception (UDF)

The exception occurs when the absolute value of the operation result is less than the largest describable

precision in the floating-point format. The following table shows the operation results when a UDF occurs.

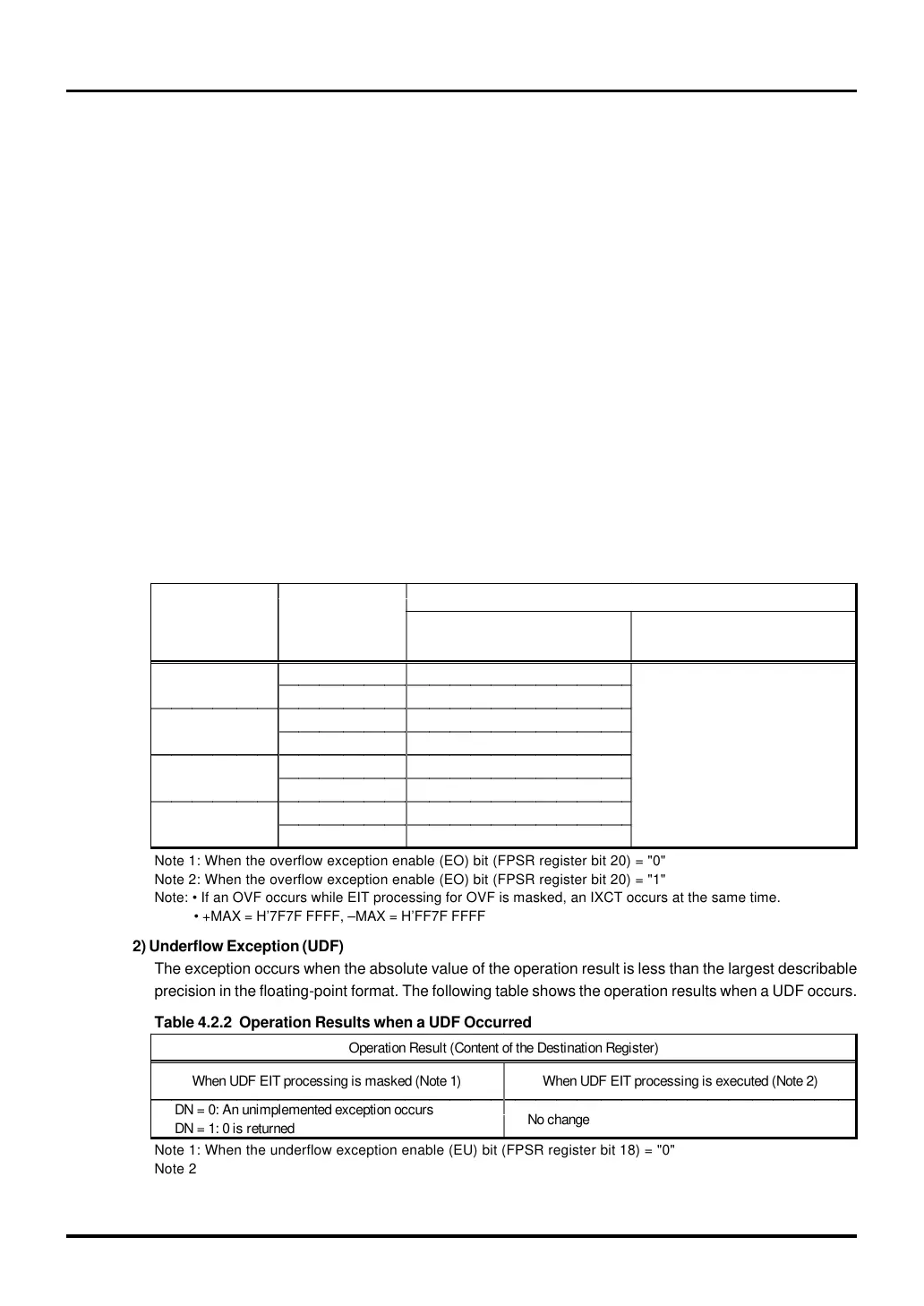

Table 4.2.2 Operation Results when a UDF Occurred

Operation Result (Content of the Destination Register)

When UDF EIT processing is masked (Note 1) When UDF EIT processing is executed (Note 2)

DN = 0: An unimplemented exception occurs

DN = 1: 0 is returned

No change





Note 1: When the underflow exception enable (EU) bit (FPSR register bit 18) = "0"

Note 2: When the underflow exception enable (EU) bit (FPSR register bit 18) = "1"
