10-125

10.4 TIO (Input/Output-Related 16-Bit Timer)

MULTIJUNCTION TIMERS

32180 Group User’s Manual (Rev.1.0)

H'FFFF

H'0000

H'E000

H'A000

H'E000

H'DFFF H'DFFF

(Unused)

Data inverted by

enable

Data inverted by

underflow

Data inverted by

underflow

Count clock

F/F output

TIO interrupt request

due to underflow

Enable bit

Note: • This diagram does not show detailed timing information.

Reload 0 register

Counter

Reload 1 register

Underflow

(first time)

Count down from

thecounter set

value

Underflow

(second time)

Count down from the

reload 0 register

set value

Enabled

(by writing to the enable bit

or by external input)

Count down from the

reload 0 register

set value

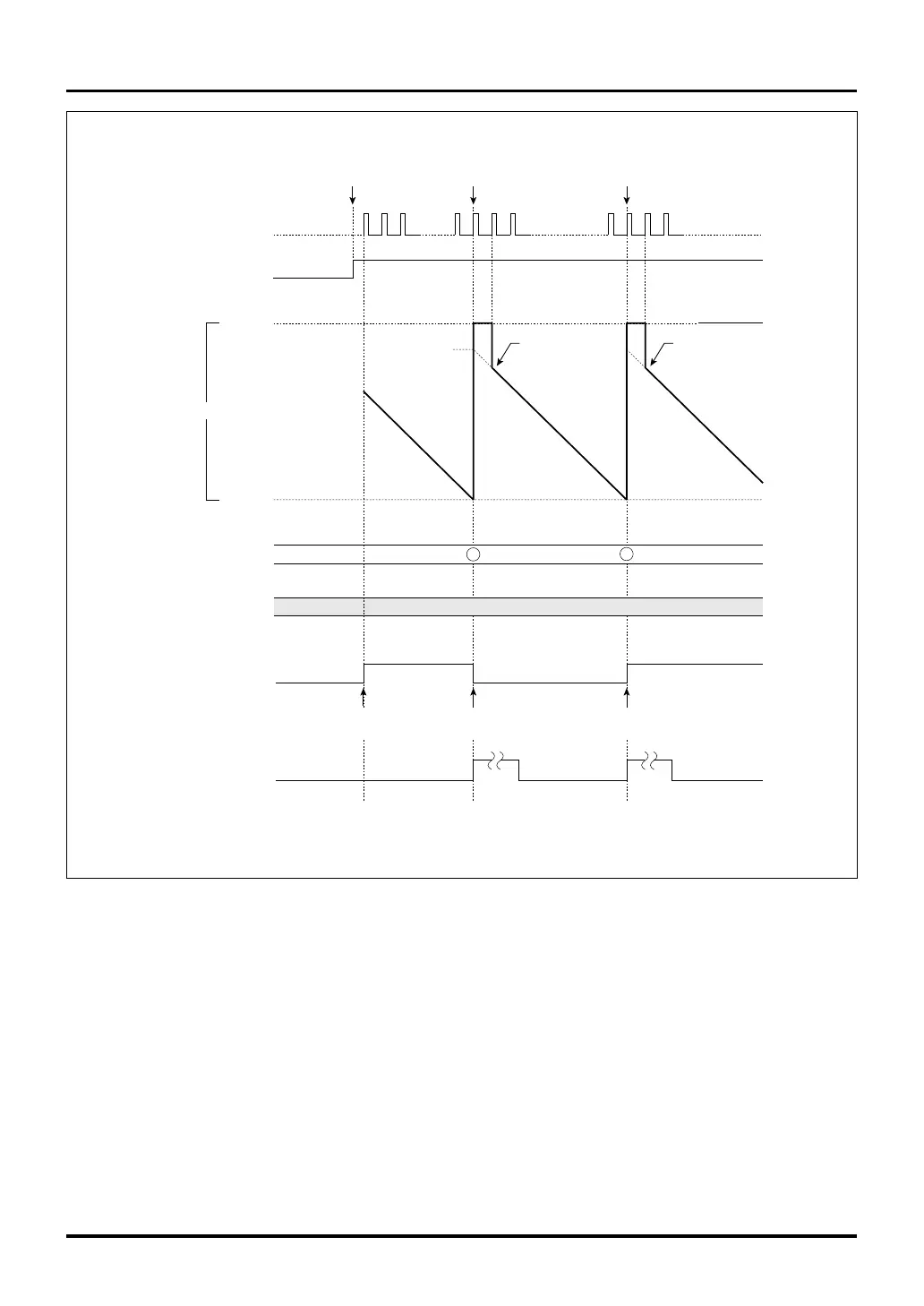

Figure 10.4.14 Typical Operation in TIO Continuous Output Mode (without Correction Function)
