MULTIJUNCTION TIMERS
10.8 TOU (Output-Related 24-Bit Timer)
32180 Group User’s Manual (Rev.1.0)

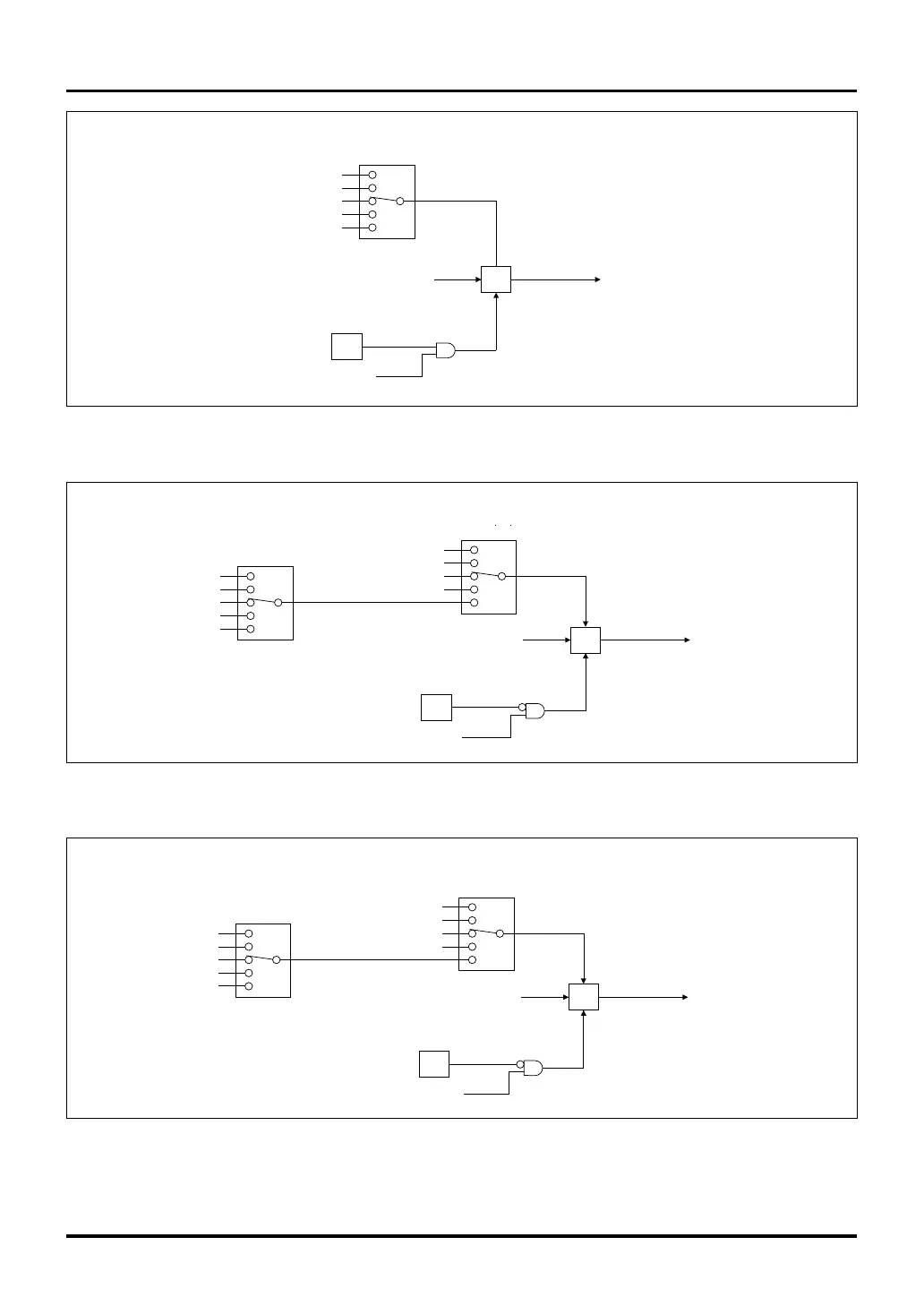

Figure 10.8.6 Configuration of the TOU2 Enable Circuit
Figure 10.8.4 Configuration of the TOU0 Enable Circuit
WR
bn
TOU0m enable protect
(TOU0mPRO)
WR
TOU0m enable
TOU0 enable source selection
(TOU0ENS)
(TOU0mCEN)
TOU0m enable control
F/F
F/F
Event enable disable
TID0_udf/ovf
TOU0_7udf
Output event bus 0
TIN25S
EN-ON
WR
bn
(TOU1mPRO)
WR
EN-ON
(TOU1mCEN)
F/F
F/F
TID1_udf/ovf
TOU1_7udf
TIN27S
TID0_udf/ovf
TOU0_7udf
TIN25S
TOU1m enable protect
TOU0 enable source selection
(TOU0ENS)
Event enable disable
Output event bus 0
Event enable
disable
TOU1 enable source selection
(TOU1ENS)
TOU1m enable
TOU1m enable control
Figure 10.8.5 Configuration of the TOU1 Enable Circuit
WR
bn
(TOU2mPRO)
WR
EN-ON
(TOU2mCEN)
F/F
F/F
TID2_udf/ovf
TOU2_7udf
TIN29S
TID0_udf/ovf
TOU0_7udf
TIN25S
TOU2m enable protect
TOU0 enable source selection
(TOU0ENS)
Event enable disable
Output event bus 0
Event enable
disable
TOU2 enable source selection
(TOU2ENS)
TOU2m enable
TOU2m enable control
