MULTIJUNCTION TIMERS
10.8 TOU (Output-Related 24-Bit Timer)
32180 Group User’s Manual (Rev.1.0)

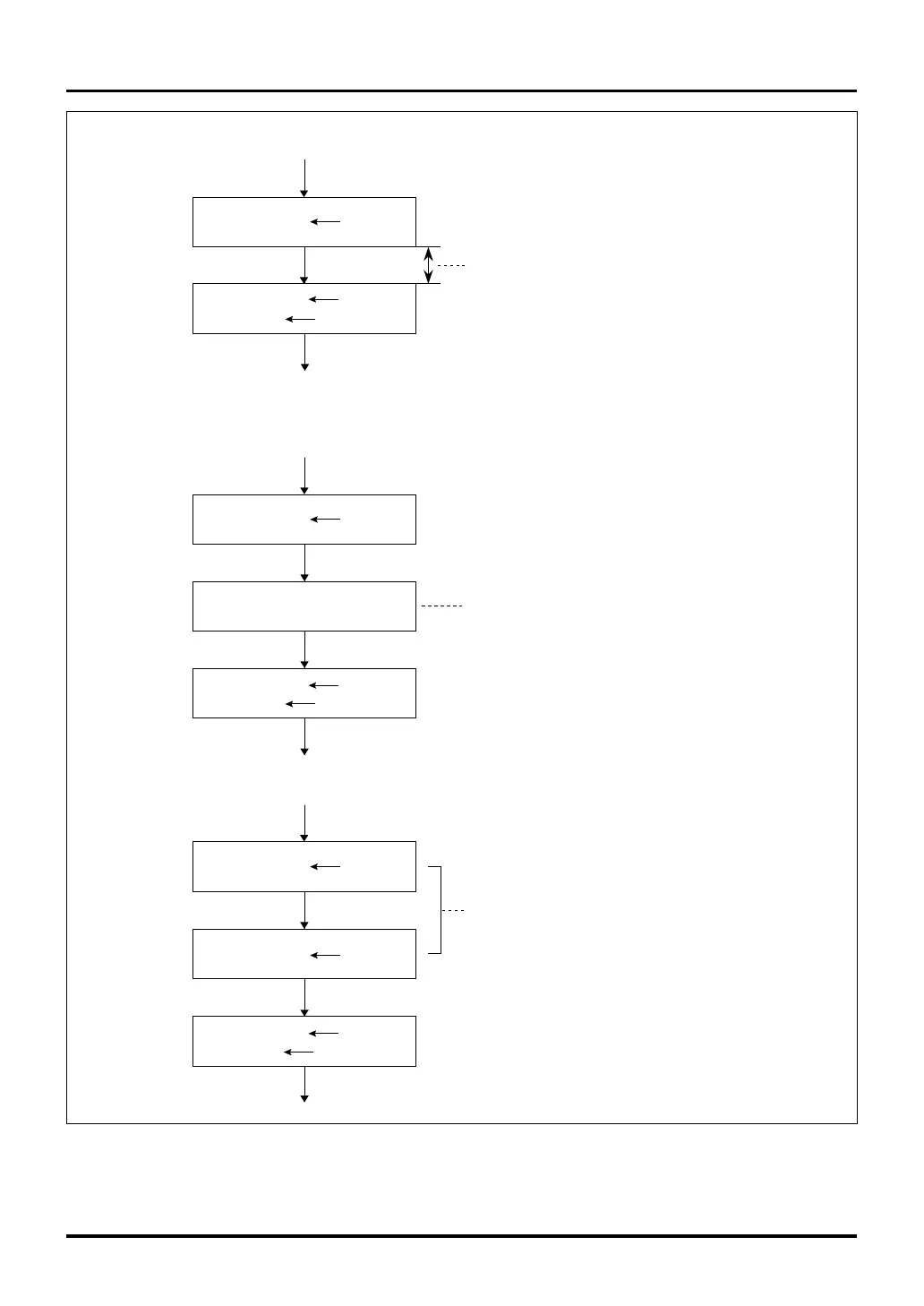

Figure 10.8.8 POnDIS Setting Procedure
If a write cycle to any other area occurs during
this interval, the value that was set in the POnDIS
bit is not reflected.
POnDISP "1"
POnDISP "0"
POnDIS
Set value
• Example of correct settings
• Cases where settings have no effect
Because a write cycle to other area exists,
the set value is not reflected.
POnDISP "1"
Write to other area
POnDISP "0"
POnDIS Set value
(1)
(2)
POnDISP "1"
POnDISP "1"
POnDISP "0"
POnDIS Set value
Because these two consecutive writes comprise a pair,
the next set value is not reflected.
