A-D Converters
32180 Group User's Manual (Rev.1.0)
11.1 Outline of A-D Converters
(3) Conversion restart
In this special operation mode, operation being executed in single or scan mode is stopped in the middle and
reexecuted from the beginning.
When in single mode, set the A-D Single Mode Register 0 A-D conversion start bit to "1" again or enter a
hardware trigger during A-D conversion or comparate operation, and the operation that was stopped during
execution is executed over again.
When in scan mode, set the A-D Scan Mode Register 0 A-D conversion start bit to "1" again or enter a
hardware trigger signal during scan operation, and the channel being converted is canceled and A-D conver-
sion is performed from channel 0 over again.

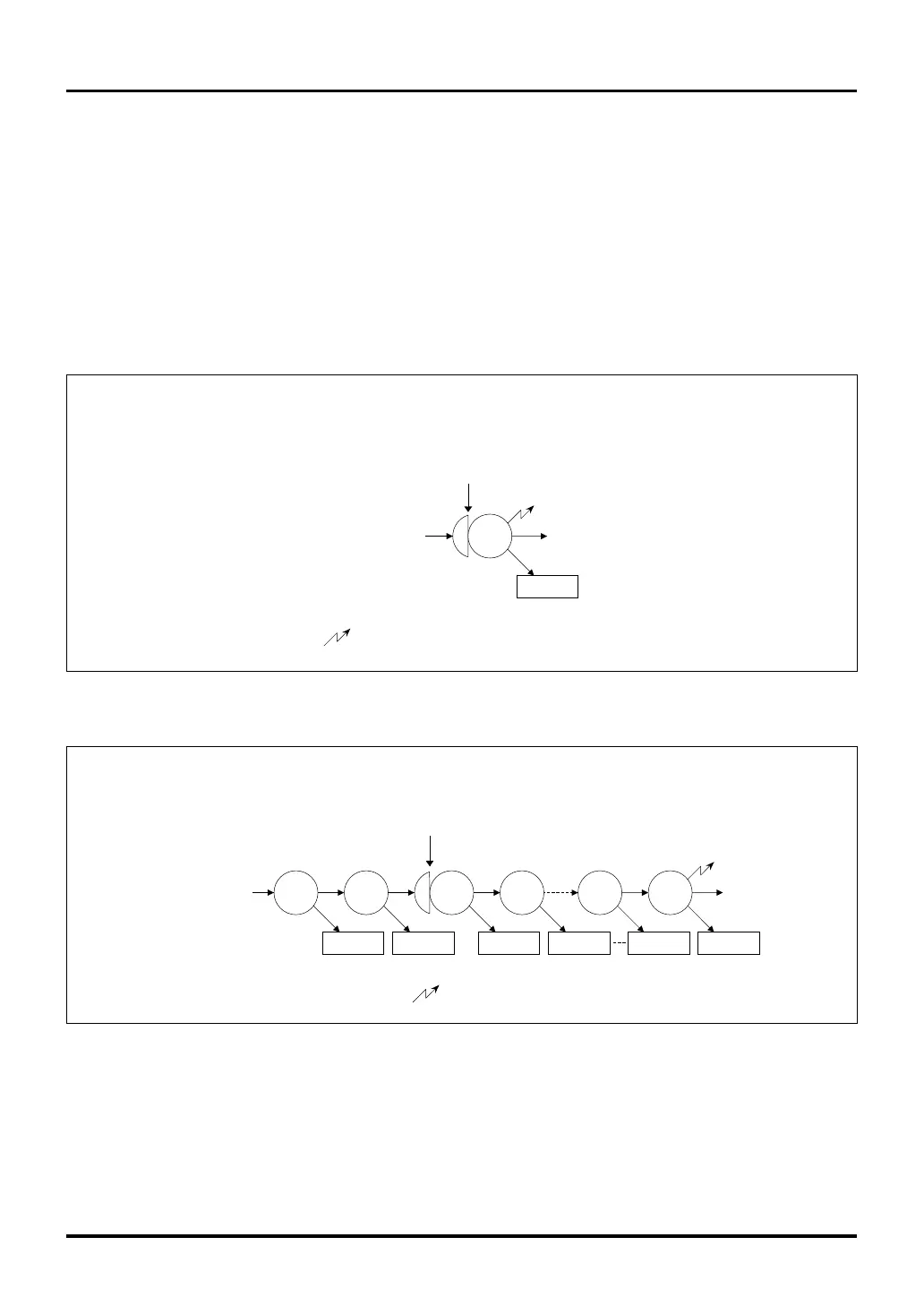

Figure 11.1.8 Conversion Restart during Single Mode Operation
A-D conversion interrupt or DMA transfer request
Single mode
ADiIN5 conversion
starts
ADiDT5
<To restart single mode ADiIN5 conversion>
Completed
Single mode ADiIN5
restarts
ADiIN5
ADiIN5
10-bit A-Di Data Register
i=0, 1
Figure 11.1.9 Conversion Restart during Scan Operation
A-D conversion interrupt or DMA transfer re
uest
ADiIN0
ADiDT0
10-bit A-Di Data Register
Scan mode
conversion starts
ADiIN1
ADiDT1
<To restart during ADiIN2 conversion in n-channel single-shot scan mode>
Completed
ADiINn-1 ADiINn
ADiDTn-1 ADiDTn
Scan mode
restarts
ADiIN2
ADiIN0
ADiDT0
ADiIN1
ADiDT1
i=0, 1
n=0–15
