Renesas M32R/ECU Series User Manual

12
12-7
Serial I/O
12.2 Serial I/O Related Registers
32180 Group User's Manual (Rev.1.0)

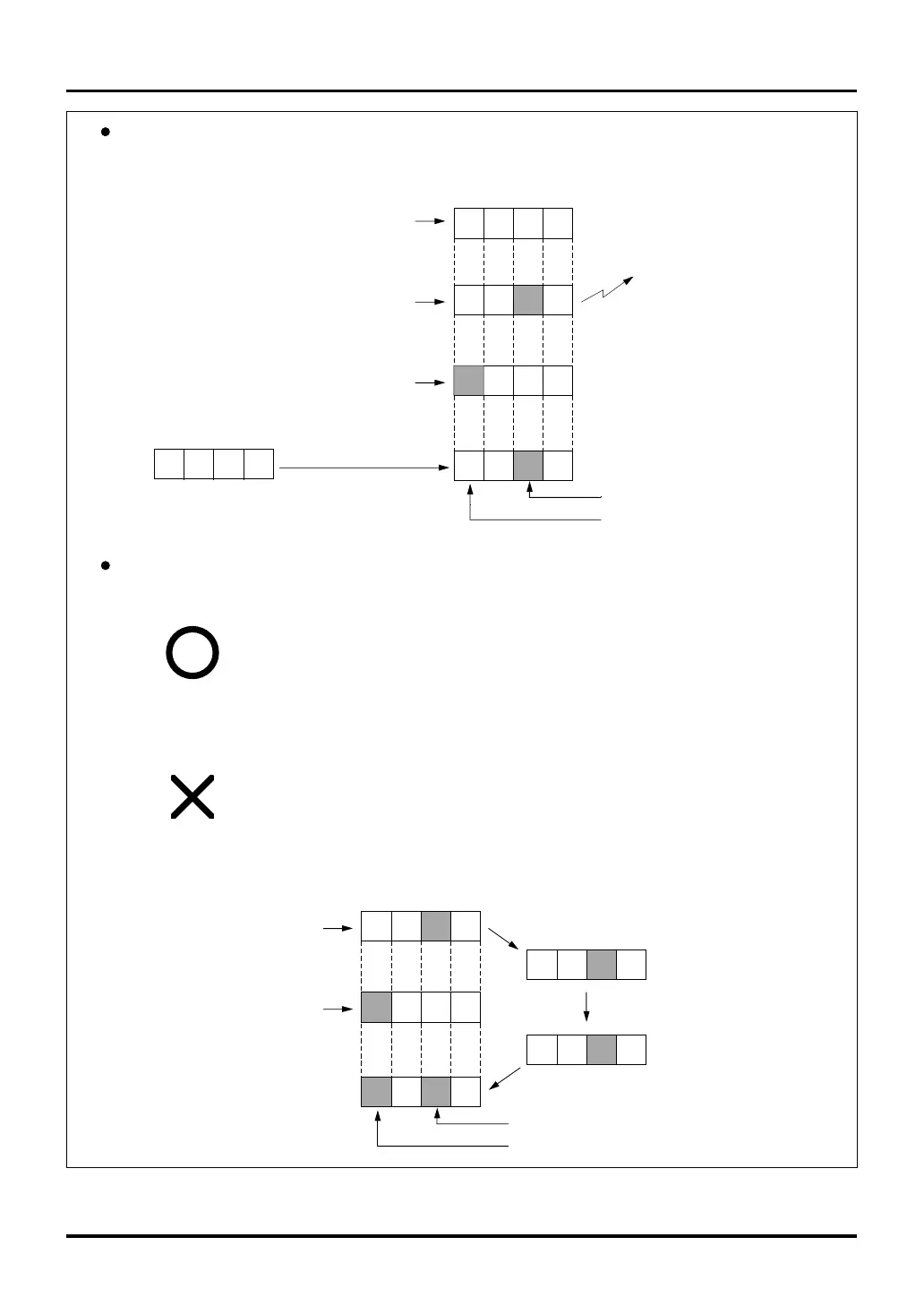

Figure 12.2.2 Example for Clearing Interrupt Request Status
b4 5 b7
Interrupt request status
Initial state
Bit 6 event occurs
Interrupt request
Bit 4 event occurs
Only bit 6 cleared
Bit 4 data retained
b4 5 b7
1 1 0 1
Write to the interrupt request status
Example for clearing interrupt request status
0 0 0 0
0 0 1 0
1 0 1 0
1 0 0 0
Program example
ISTREG = 0xfd; /* Clear ISTAT1 (0x02 bit) only */
• To clear the Interrupt Request Status Register 0 (ISTREG) interrupt request status 1: ISTAT1 (0x02 bit)
To clear an interrupt request status, always be sure to write 1 to all other interrupt request status bits. At this time,
avoid using a logic operation like the one shown below. Because it requires three step-ISTREG read, logic operation
and write, if another interrupt request occurs between the read and write, status may be inadvertently cleared.
b4 5 6 b7
Interrupt request status
Bit 6 event occurs
Bit 4 event occurs
Only bit 6 cleared
Bit 4 also cleared
0 0 1 0
1 0 1 0
0 0 0 0
Read
0 0 1 0
0 0 0 0
Clear bit 6 (ANDing with 1101)
Write
6
6
ISTREG &= 0xfd; /* Clear ISTAT1 (0x02 bit) only */
