13-51
13
32180 Group User’s Manual (Rev.1.0)
13.2 CAN Module Related Registers
CAN MODULE
Slot 0
Slot 1
Slot 2
Slot 13
Slot 14
Slot 15
Slots controlled by
the global mask register
Slot controlled by local mask register A
Slot controlled by local mask register B
ID of received
frame ID set in slot
Mask register
set value
0: The received message and slot IDs are
not checked for matching and handled as
"Don't care" (masked)
1: The received message and slot IDs are
checked for matching
Mask bit value
Acceptance judgment signal
Acceptance judgment signal
0: The received message is ignored
(not stored in any slot)
1: The received message is stored in
the slot that has the matching ID

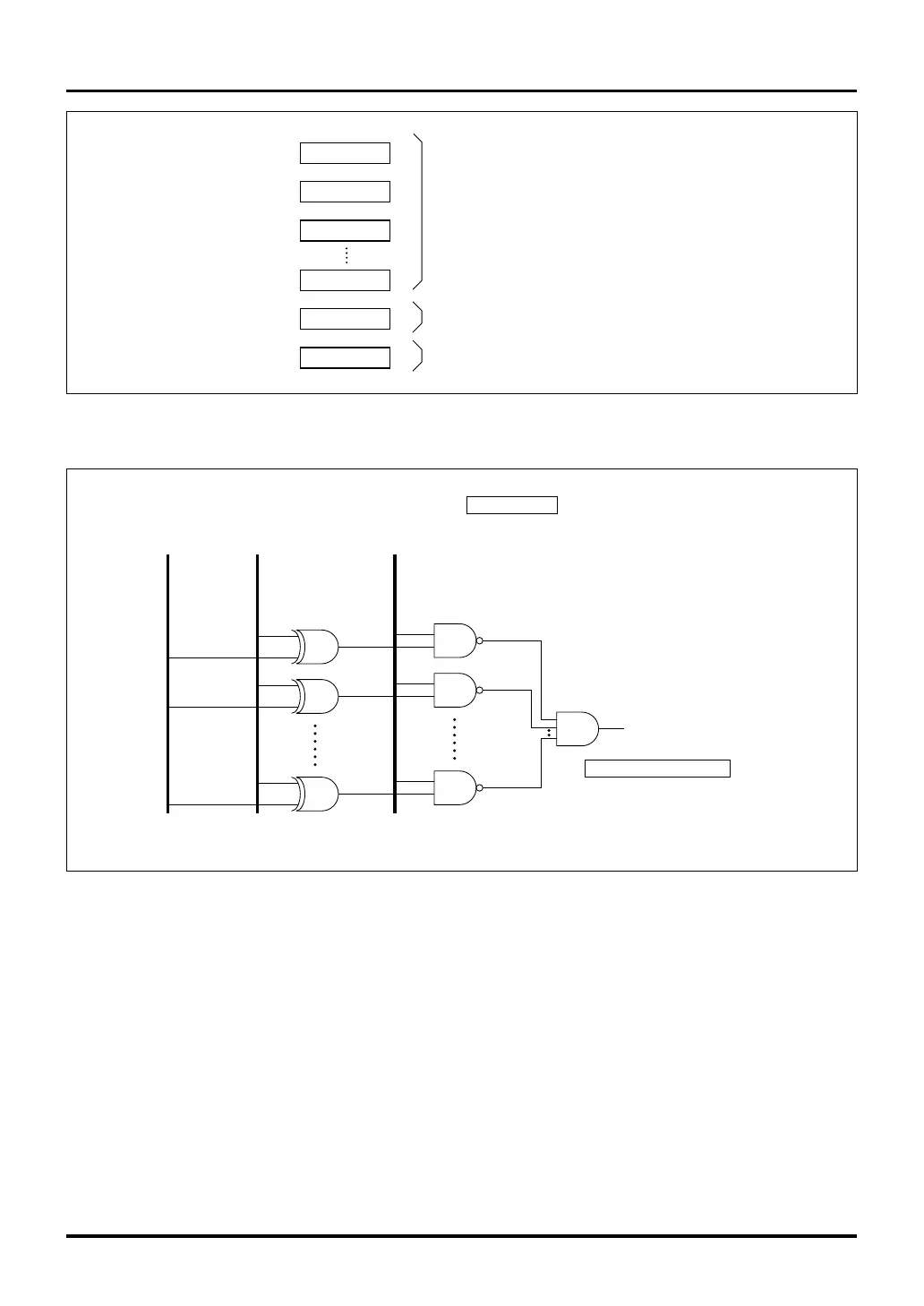

Figure 13.2.14 Relationship between the Mask Registers and the Controlled Slots
Figure 13.2.15 Concept of Acceptance Filtering
To Next Page
