Rolls-Royce Corniche - Belt Layout and Tension Checking Points

Workshop Manual
Rolls- Royce Silver Shadow B Bentley T Series
Chapter L

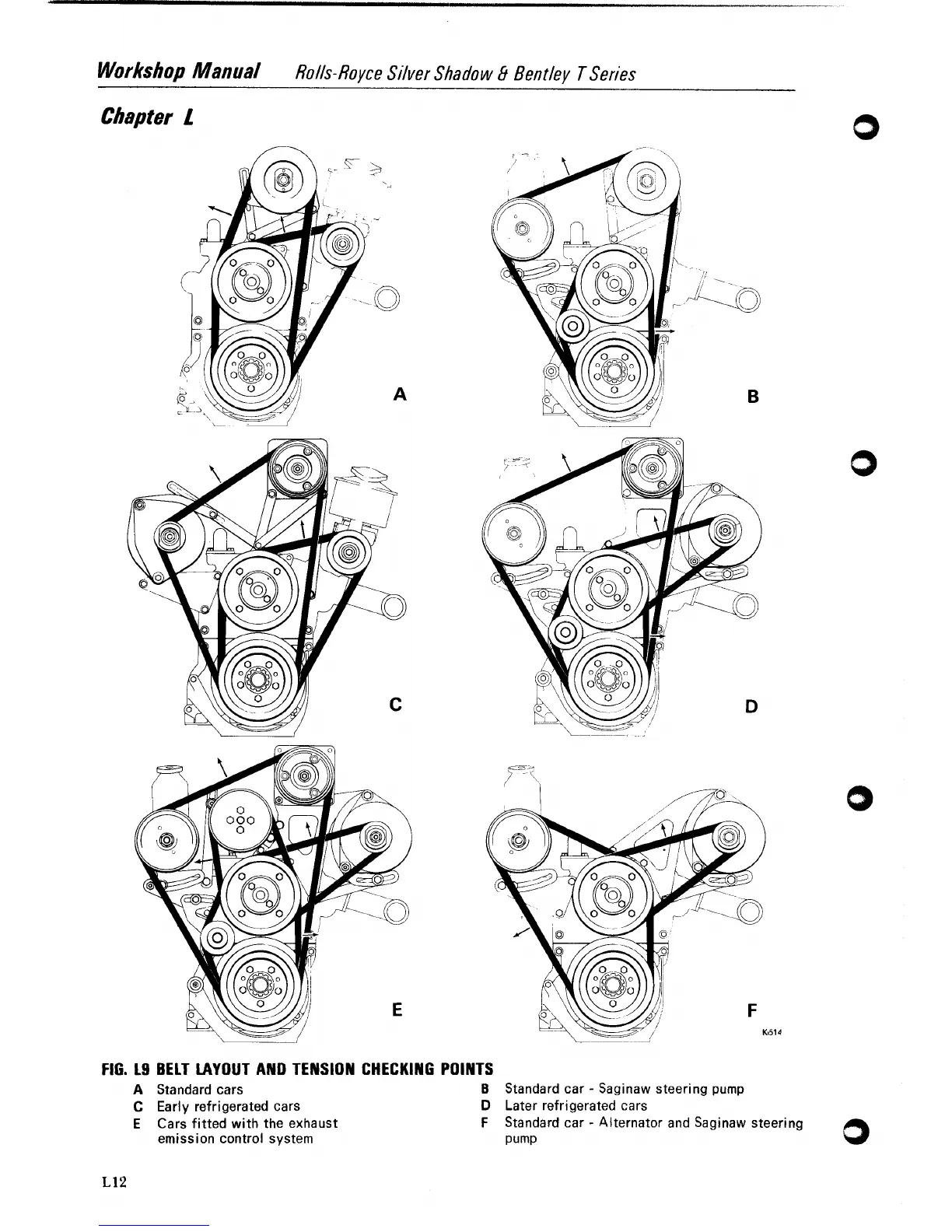

FIG. 19 BELT LAYOUT AND TENSION CHECKING POINTS
A Standard cars
B Standard car - Saginaw steering pump
C Early refrigerated cars
D Later refrigerated cars
E Cars fitted with the exhaust
F Standard car - Alternator and Saginaw steering
emission control system
Pump
