Rolls- Royce Silver Shadow & Bentley T Series
Workshop Manual
The fuse panel is situated below the facia on the
driver's side of the car
(see Figs. M2 6. M3).
To gain access to the fuse panel, unscrew the
knurled retaining screw and lower the panel; an
identification plate is fitted between the padded
housing and supporting framework.
Important It is important to note that if new
glass fuses are required, they
should be of
' Bulgin' manufacture
and of the correct rating.
Chapter M
Section M2
FUSE PANEL
The fuse panel also houses the direction
indicators flasher unit, the thermal cut-out button
for the transmission actuator and the thermal cut-
out for the headlamps protection circuit.
If a refrigeration unit is fitted to the car, the fuse
panel has seven small diodes fitted to prevent feed-
back from the electric actuators
(see Fig. M4). The
diodes have the following identification numbers:
DD 000 or 49453A. The identification plate clearly
shows the positions.

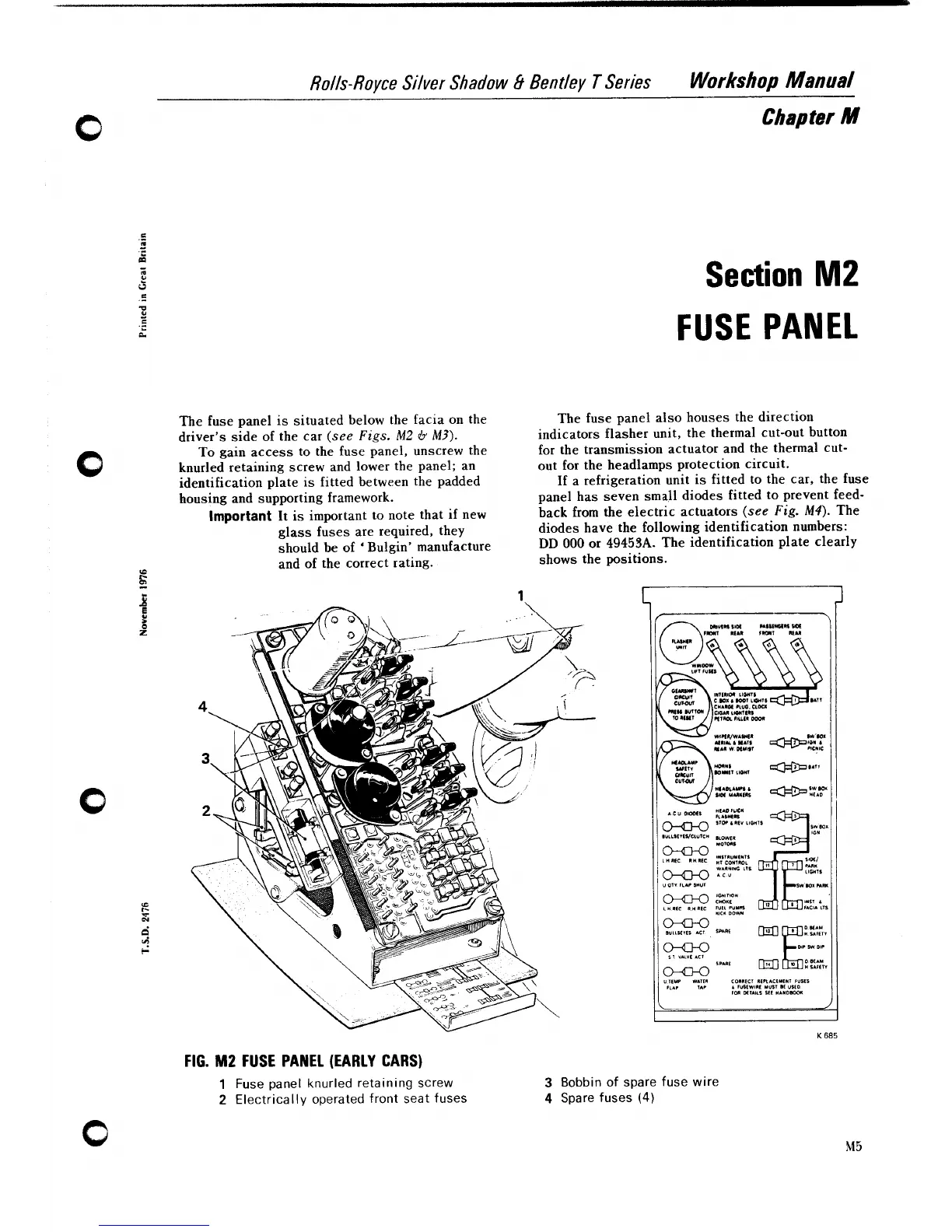

FIG. M2 FUSE PANEL (EARLY CARS)
1 Fuse panel knurled retaining screw
3 Bobbin of spare fuse wire
2 Electrically operated front seat fuses
4 Spare fuses (4)
