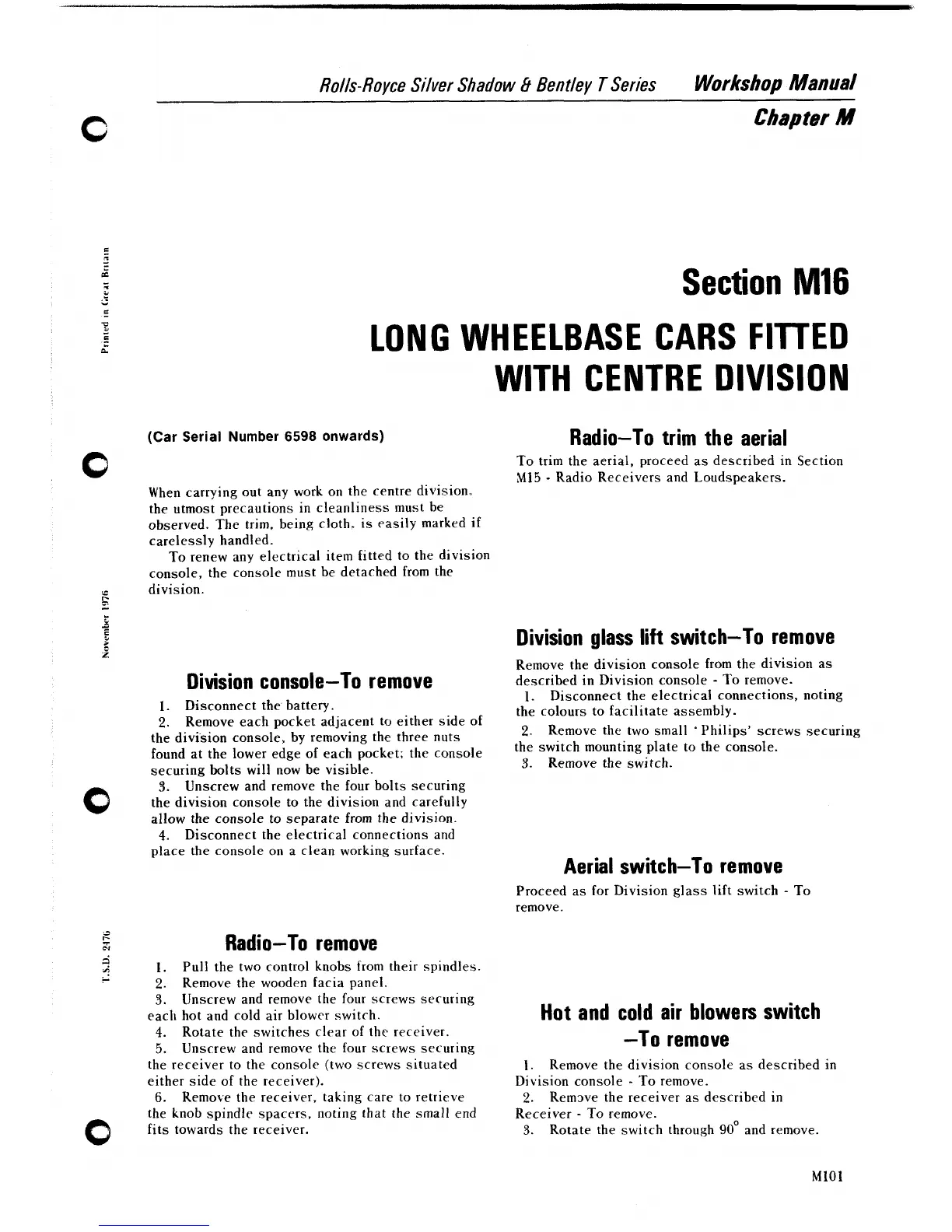

Rolls-Royce Corniche - Division Console;Radio-To Remove; Division Glass Lift Switch-To Remove; Hot and Cold Air Blowers Switch-To Remove; Long Wheelbase Cars Fitted with Centre Division

Rolls-Royce Silver Shadow & Bentley T Series
Workshop Manual
(Car Serial Number 6598 onwards)
Section MI6
LONG WHEELBASE CARS FITTED
WITH CENTRE DIVISION
Chapter M
When carrying out any work on the centre division.
the utmost precautions in cleanliness must be
observed. The trim, being cloth. is easily marked if
carelessly handled.
To renew any electrical item fitted to the division
console, the console must be detached from the
division.
Division console-To remove
1. Disconnect the battery.
2.
Remove each pocket adjacent to either side of
the
divi'sion console, by removing the three nuts
found at the lower edge of each pocket; the console
securing bolts will now be visible.
3.
Unscrew and remove the four bolts securing
the division console to the division and carefully
allow the console to separate from the division.
4.
Disconnect the electrical connections and
place the console on a clean working surface.
Radio-To remove
1.
Pull the two control knobs from their spindles.
2.
Remove the wooden facia panel.
3.
Unscrew and remove the four screws securing
cacli hot and cold air blower switch.
4.
Rotate the switches clear of the receiver.
5.
Unscrew and remove the four screws securing
the receiver to the console (two screws situated
either side of the receiver).
6.
Remote the receiver, taking care to retrieve
the knob spindle spacers,
noting that the small end
fits towards the receiver.
Radio-To trim the aerial
To trim the aerial, proceed as described in Section
M15 - Radio Receivers and Loudspeakers.
Division glass lift switch-To remove
Remove the division console from the division as
described in Division console
- To remove.
1.
Disconnect the electrical connections, noting
the colours to facilitate assembly.
2.
Remove the two small * Philips' screws securing
the switch mounting plate to the console.
3. Remove the switch.
Aerial switch-To remove
Proceed as for Division glass lift switch - To
remove.
Hot and cold air blowers switch
-To remove
1.
Remove the division console as described in
Division console
- To remove.
2.
Rem~ve the receiver as described in
Receiver
- To remove.
3.
Rotate the switch through 90' and remove.
