Workshop Manual
Rolls- Royce Silver Shadow B Bentley T Series
Chapter M
Window lift motor-To remove
All cars from Car Serial Number 6000
(see Fig. M100)
If the window lift motor is found to be faulty, it
must be replaced with a new unit.
1. Disconnect the battery.
2.
Remove the two screws securing the emergenry
winder embellisher; remove the embellisher.
3.
Lift off the door arm rest.
4.
Renrove the two arm rest mounting plate
securing screws; remove the plate.
5.
Remove the six sclews located at the lower
edge of the door trim pad.
6.
Remove the three screws securing the door
garnish rail.
7.
Lifting vertically, remove the garnish rail.
8.
Remove the door trim pad by placing the hands
at the centre of the upper and lower edges of the
door trim pad. Exert pressure at these points
causing the trim pad to
' bell-out'. This operation
releases the door
trill1 pad from the two stainless
steel retainers at the leading and trailing edges of
the door; remove the dust cover.
9.
Remove the setscrew securing the drop
window to the pick-up plate.
Note It is advisable to tape the glass over
the window frame to prevent the glass
from suddenly dropping (2-Door Saloons
only).
10. Remove the screws securing the chainguard
to
tl~e inner door panel.
11. Disconnect the elertrical connections from
the terminal box situated on the face of the motor
assembly, noting the positions to facilitate fitting.
12. Remove the two setscrews securing the
window lift motor to the base of the door.
13 Remove the window lift motor.
Window lift motor-To remove
All cars prior to Car Serial Number 6000
1. Disconnect the battery.
2.
Remove the ventilator window knob by un-
screwing the small grub screw situated on the knob
shaft.
3.
Remove by carefully prising away, the window
lift switch finisher.
4.
Remove the switch embellisher by removing
the two screws.

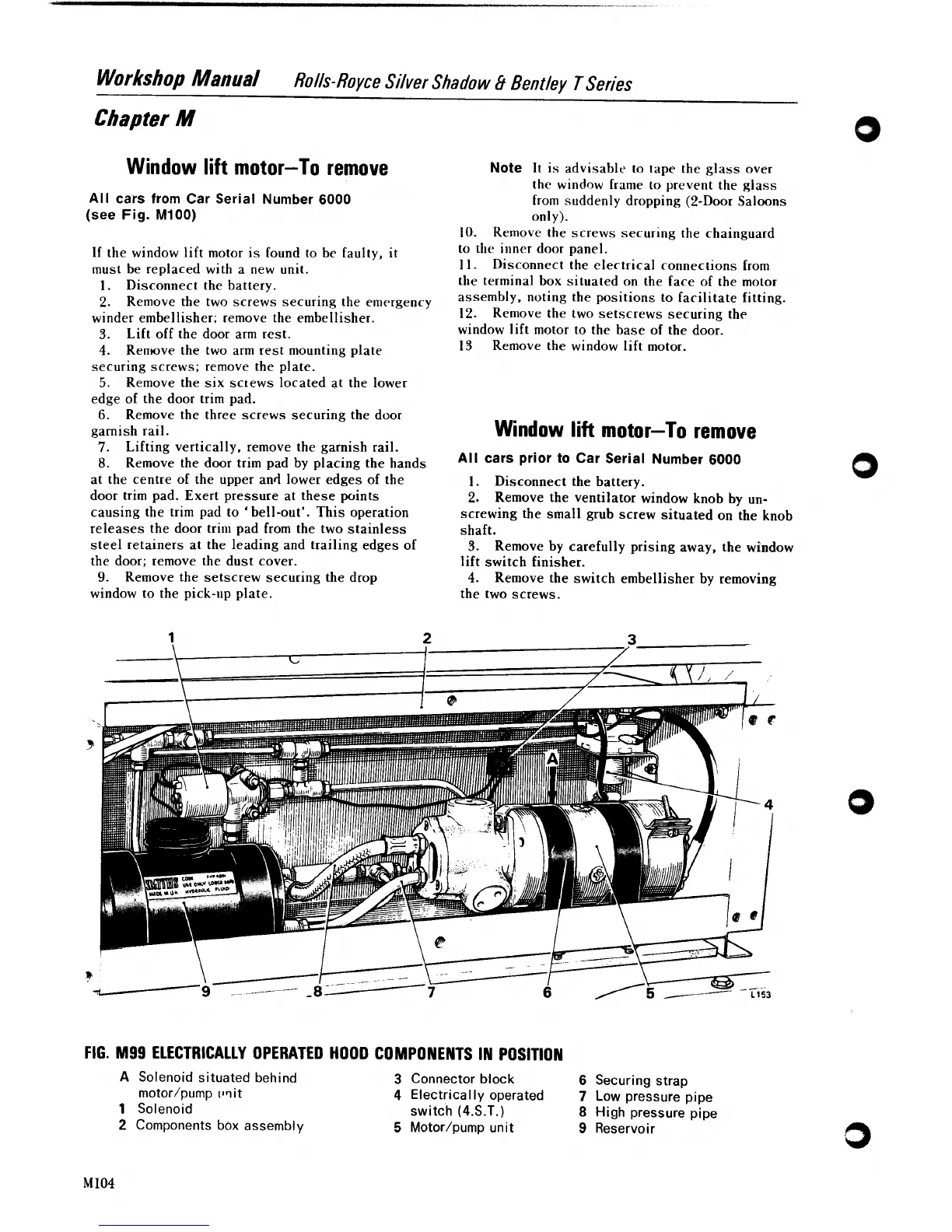

FIG. M99 ELECTRICALLY OPERATED HOOD COMPONENTS IN POSITION
A Solenoid situated behind 3 Connector block 6 Securing strap
motor/pump 111it
4 Electrically operated 7 Low pressure pipe
1 Solenoid
switch (4.S.T.)
8 High pressure pipe
2 Components box assembly
5 Motor/pump unit 9 Reservoir
