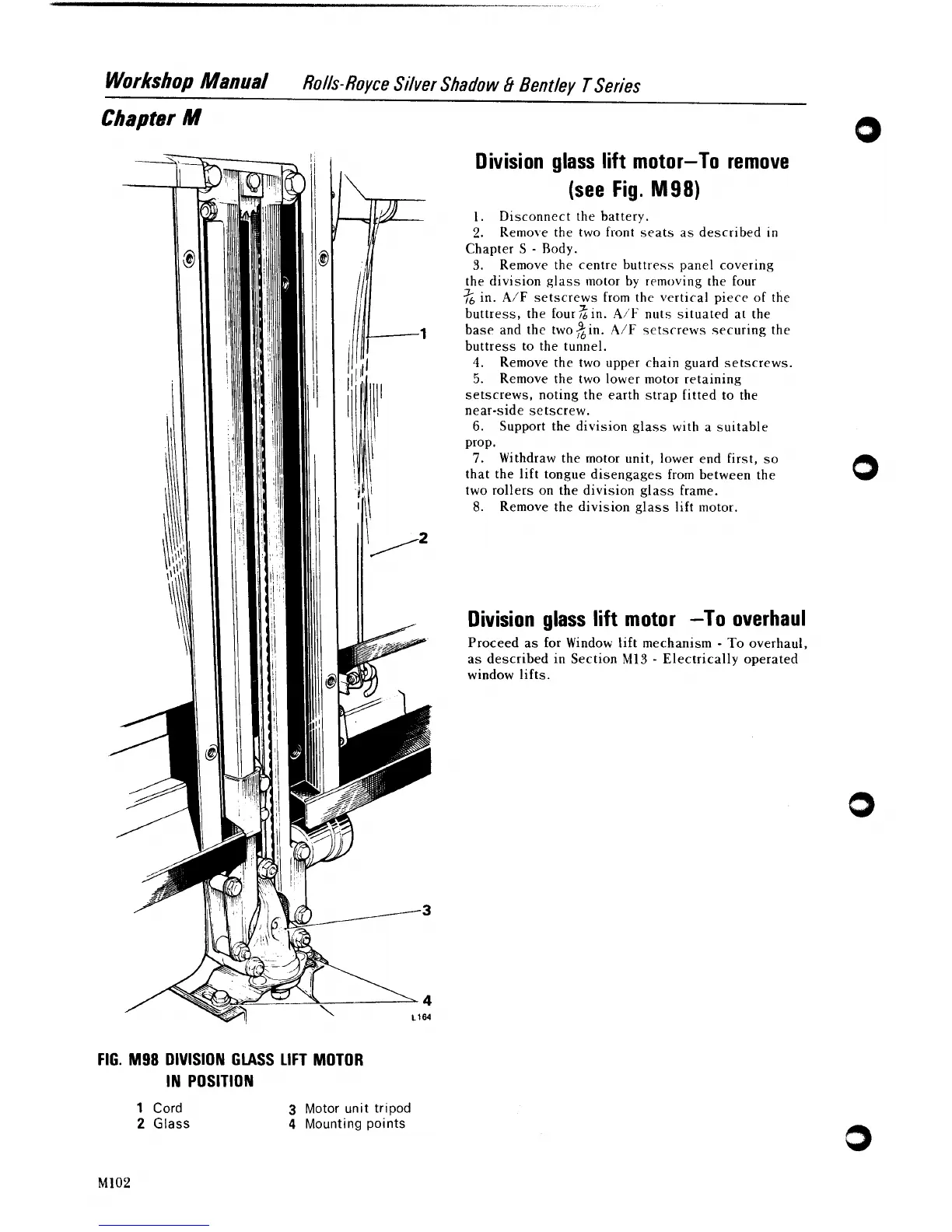

FIG. M98 DIVISION GLASS LIFT MOTOR
IN POSITION
1 Cord
2 Glass
3 Motor unit tripod
4 Mounting points
Division glass lift motor-To remove
(see Fig.
M98)
1. Disconnect the battery.
2.
Remove the two front seats as described in
Chapter
S - Body.
3.
Remove the centre buttress panel covering
the division glass
rnotor by removing the four
& in. A/F setscrews from the vertical piece of the
buttress, the four
%in. A/'F nuts situated at the
base and the
two3in. A/F setscrews securing the
buttress to the tunnel.
4.
Remove the two upper chain guard setscrews.
5.
Remove the two lower motor retaining
setscrews, noting the earth strap fitted to the
near-side setscrew.
6. Support the division glass with a suitable
prop.
7. Withdraw the motor unit, lower end first, so
that the lift tongue disengages from between the
two rollers on the division glass frame.
8. Remove the division glass lift motor.
Division glass lift motor -To overhaul
Proceed as for Window lift mechanism - To overhaul,
as described in Section
M13 - Electrically operated
window lifts.
