Workshop

Manual

Rolls- Royce Silver Shadow

Bentley

Series

Chapter

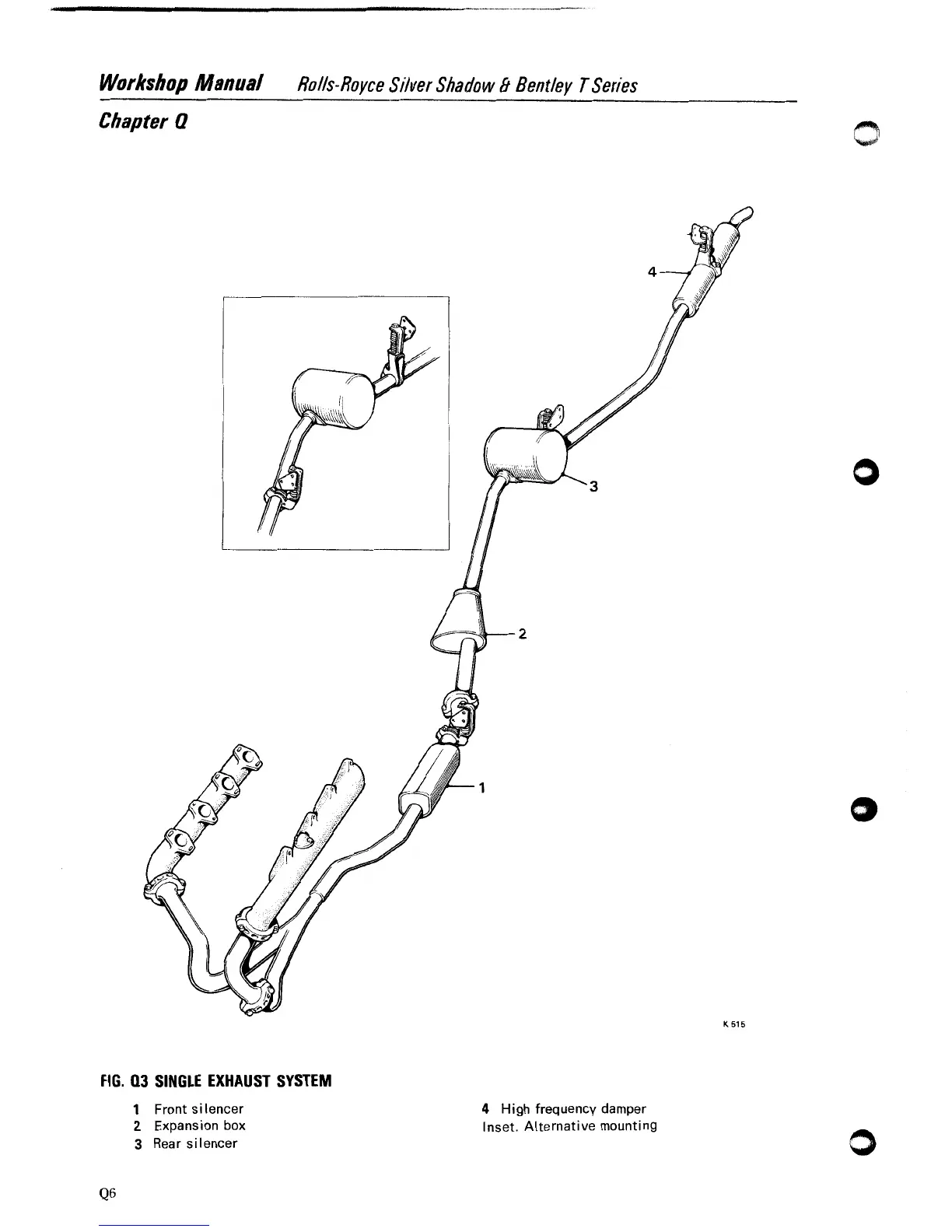

FIG.

SINGLE EXHAUST SYSTEM

Front silencer

Expansion box

Rear silencer

High

frequency damper

Inset. Alternative mounting
