Rolls-8:~yce Silver Shadow 8 Bentley T Series
Workshop Manual
Chapter
Q
0
Section 03
EXHAUST PIPES and SILENCERS
(Twin pipe, six box system)
Introduction
than Australia, Canada, Japan and the U.S.A., from
The pipes and silencers of this system are fitted
car serial numbers 22583 to
30000 (including
to Corniche cars only, destined for countries other
21729 and 21998).

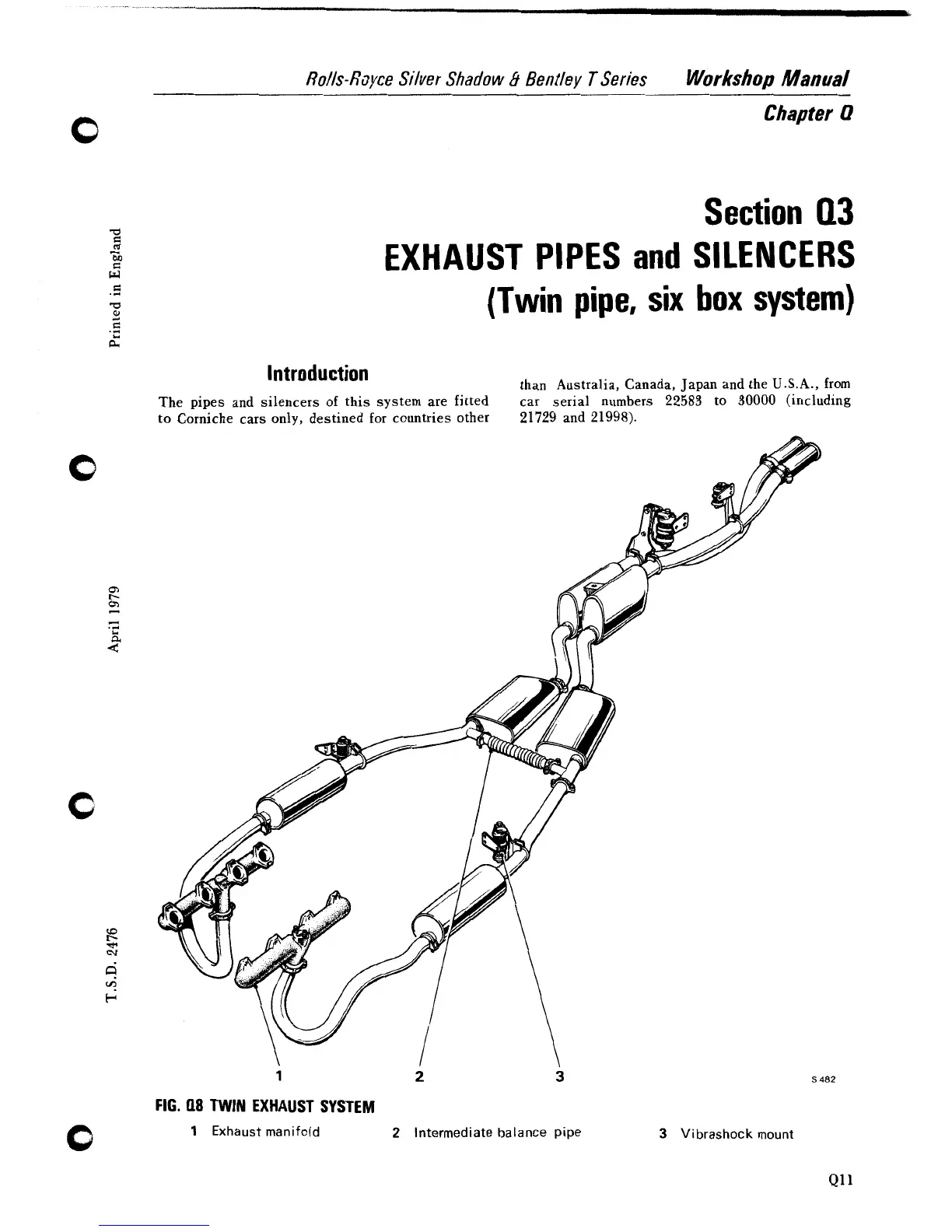

FIG. Q8 TWIN EXHAUST SYSTEM
1 Exhaust manifold 2 Intermediate balance pipe
3 Vibrashock mount
Q11
