Rolls-Royce Silver Shadow & Bentley T Series
Workshop Manual
Chapter M
4. Remove the two circular fresh air outlet control
Interior lamp bulb-TO renew
knob grub screws; remove the centre facia board.
1. Disconnect the battery.
5.
Unscrew and remove the two screws securing
the clock to the
facia.
2.
Remove the lamp bezel together with the lens;
6.
Disconnect the cables from the terminals on the
the unit is held in position with two spring clips.
rear of the clock; withdraw the clock.
3. Renlove the bulb.
Bulb renewal-Instrument and
warning lamp
1. Disconnect the battery.
2.
Remove the appropriate indicator (gauge).
3.
Withdraw the bulb holder and renew the faulty
bulb.
Gear range indicator illumination
bulb-To renew
1. Disconnect the battery.
2.
Remove the upper section of the cowl by
releasing the four screws in the lower section of the
cowl; slacken the screws securing the lower half,
which are the longer of the screws; carefully lift off
the upper section.
Note On left-hand drive cars from Car Serial
Number
6000 the steering column cowl
trim finisher must be removed.
3.
Remove the screw at each end of the indicator
scale, then remove the scale and filter, taking care
not to damage the indicator needle.
4.
Move the gear range selector switch so that the
needle is at either of the two extremities. Remove
the two screws securing the bulb holder bracket.
The bulb can then be removed from its holder.
Facia compartment illumination
-Bulb renewal
1. Disconnect the battery.
2.
Unscrew and remove the screw at each end of
the lens; then withdraw the lens.
3. Remove the festoon bulb.
Rear armrest lamp bulb-To renew
Left and right-hand drive cars prior to
Car Serial Number 6000
& 6791 respectively
1. Disconnect the batt~ry.
2.
Unscrew and remove the two screws securing
the lens beneath the arm rest.
3. Remove the festoon bulb.
Rear armrest lamp bulb-To renew
Left and right-hand drive cars from Car
Serial Numbers 6000
81 6791
1. Disconnect the battery.
2.
Gently pull the capless bulb, situated beneath
the rear arm rest, from its holder.
Ignition switch illumination -Bulb renewal
Cars prior to Car Serial Number 6000

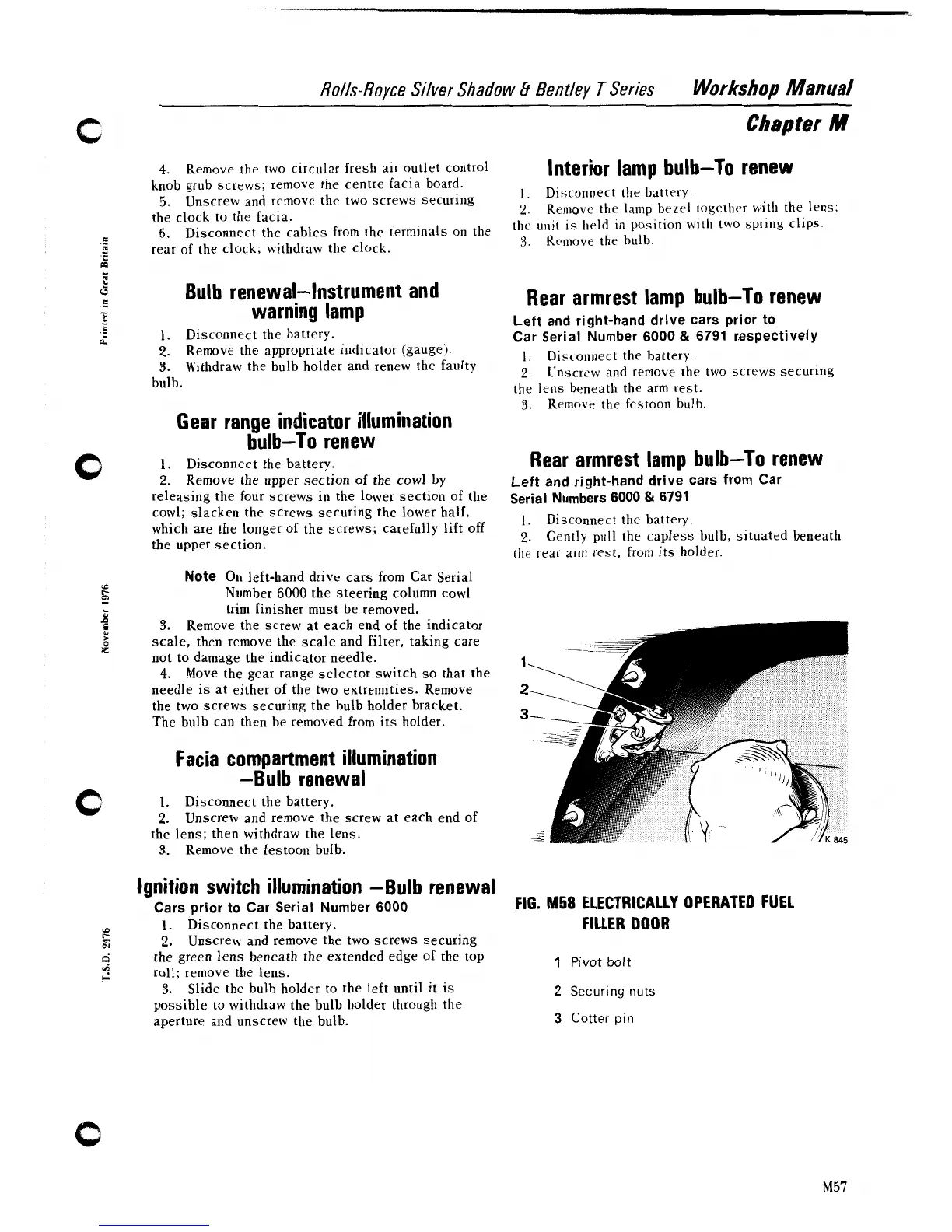

FIG. M58 ELECTRICALLY OPERATED FUEL
1. Disconnect the battery. FILLER DOOR
2.
Unscrew and remove the two screws securing
the green lens beneath the extended edge of the top
1 Pivot bolt
roll; remove the lens.
3.
Slide the bulb holder to the left until it is
2 Securing nuts
possible to withdraw the bulb holder through the
aperture and unscrew the bulb.
3 Cotter p~n
