Rolls-Royce Corniche - Exhaust System Configurations

Rolls-Rovce Silver Shadow 8 Bentley T Series
Workshop Manual
Chapter Q

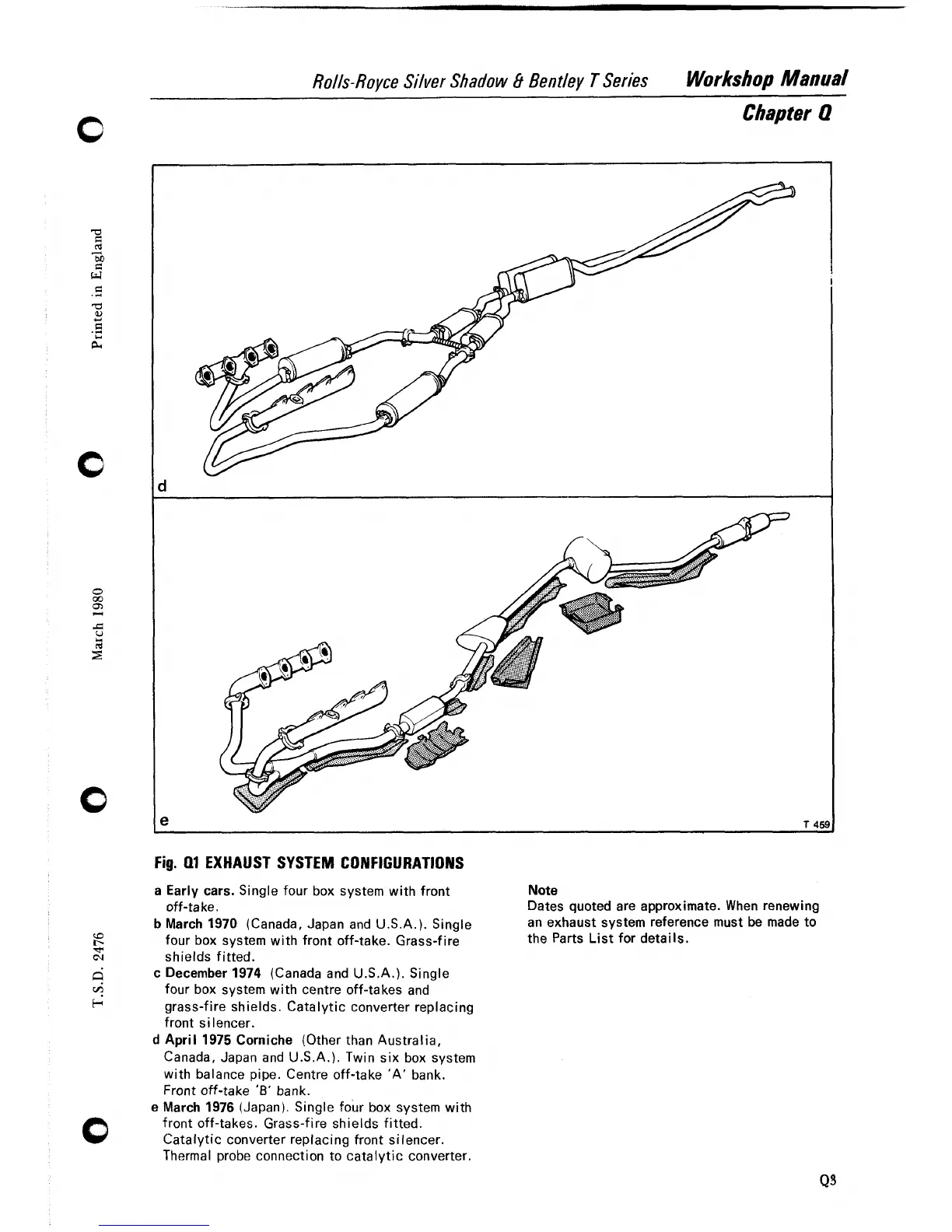

Fig. Q1 EXHAUST SYSTEM CONFIGURATIONS
a Early cars. Single four box system with front
Note
off-ta ke.
Dates quoted are approximate. When renewing
b March
1970 (Canada, Japan and U.S.A.). Single
an exhaust system reference must be made to
(D
t-
four box system with front off-take. Grass-fire
the Parts List for detai
Is.
d'
tx shields fitted.
6
c December 1974 (Canada and U.S.A.). Single
*
four box system with centre off-takes and
+
grass-fire shields. Catalytic converter replacing
front
si lencer.
d April
1975 Corniche (Other than Australia,
Canada, Japan and U.S.A.). Twin six box system
with balance pipe. Centre off-take 'A' bank.
Front off-take
'B' bank.
e March
1976 (Japan). Single four box system with
front off-takes. Grass-f ire shields fitted.
0
Catalytic converter replacing front silencer.
Thermal probe connection to catalytic converter.
