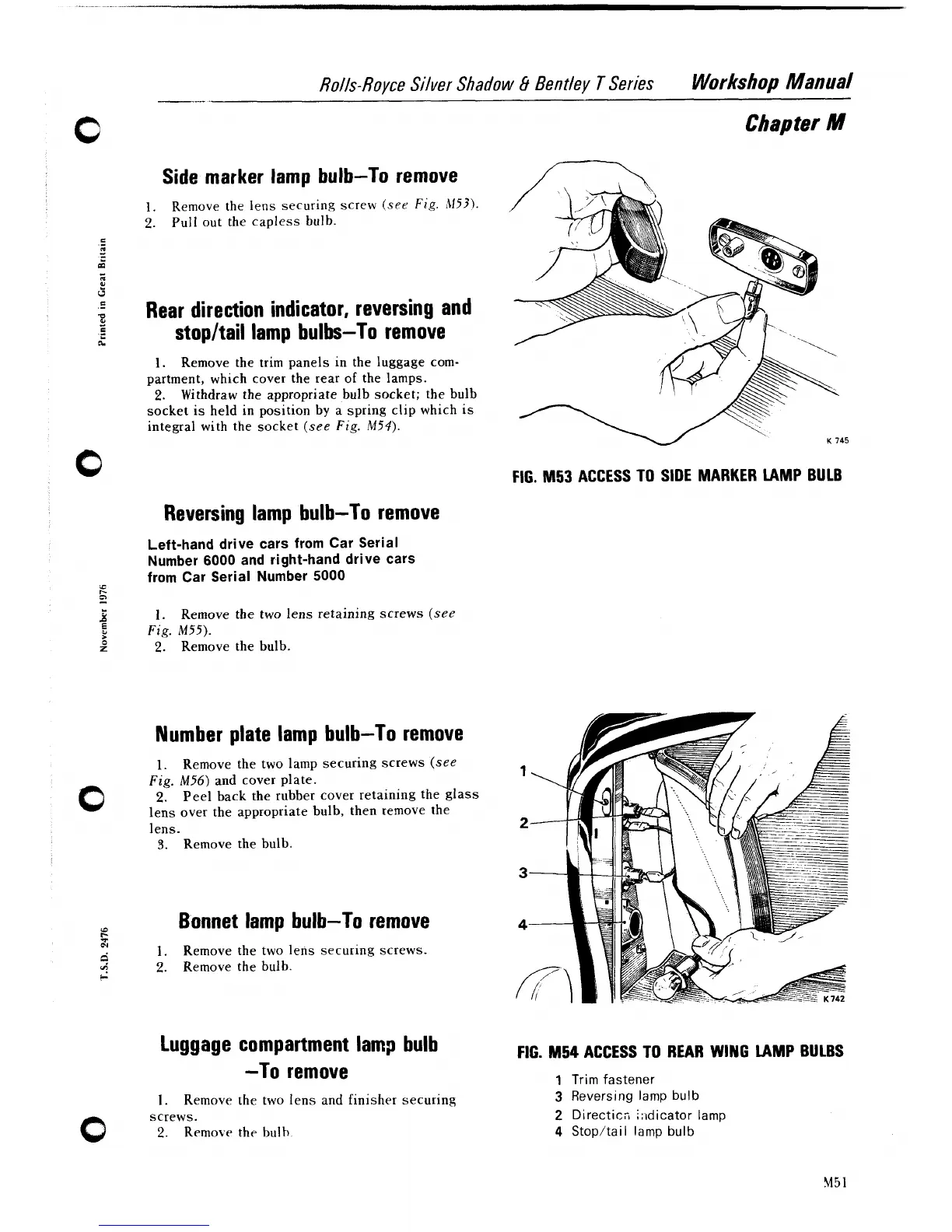

Rolls- Royce Silver Shadow 8 Bentley T Series
Workshop Manual
Chapter M
Side marker lamp bulb-To remove
/--h
1.
Remove the lens securing screw
(see Fig. 1,153).
2.
Pull out the capless bulb.
Rear direction indicator, reversing and
stopltail lamp bulbs-To remove
1.
Remove the trim panels in the luggage com-
partment, which cover the rear of the lamps.
2.
Withdraw the appropriate bulb socket; the bulb
socket is held in position by a spring clip which is
integral with the socket
(see Fig. M54).
Reversing lamp bulb-To remove
Left-hand drive cars from Car Serial
Number
6000 and right-hand drive cars
from Car Serial Number
5000
1.
Remove the two lens retaining screws (see
Fig. M55).
2. Remove the bulb.
Number plate lamp bulb-To remove
1.
Remove the two lamp securing screws
(see
Fig. M56) and cover plate.
2.
Peel back the rubber cover retaining the glass
lens over the appropriate bulb, then remove the
lens.
3. Remove the bulb.
10
c
Bonnet lamp bulb-To remove
k
1.
Remove the two lens securing screws.
6
2
2. Remove the bulb.
Luggage compartment lamp bulb
-To remove
1.
Remove the two lens and finisher securing
screws.
2. Remove the bulh
FIG. M53 ACCESS TO SIDE MARKER LAMP BULB
FIG. M54 ACCESS TO REAR WING LAMP BULBS
1 Trim fastener
3 Reversing lamp bulb
2 Directicn ii~dicator lamp
4 Stop/tail lamp bulb
