Rolls-Royce Silver Shadow
&
Bentley
T
Series
Workshop
Manual
Chapter
3
Section
J6

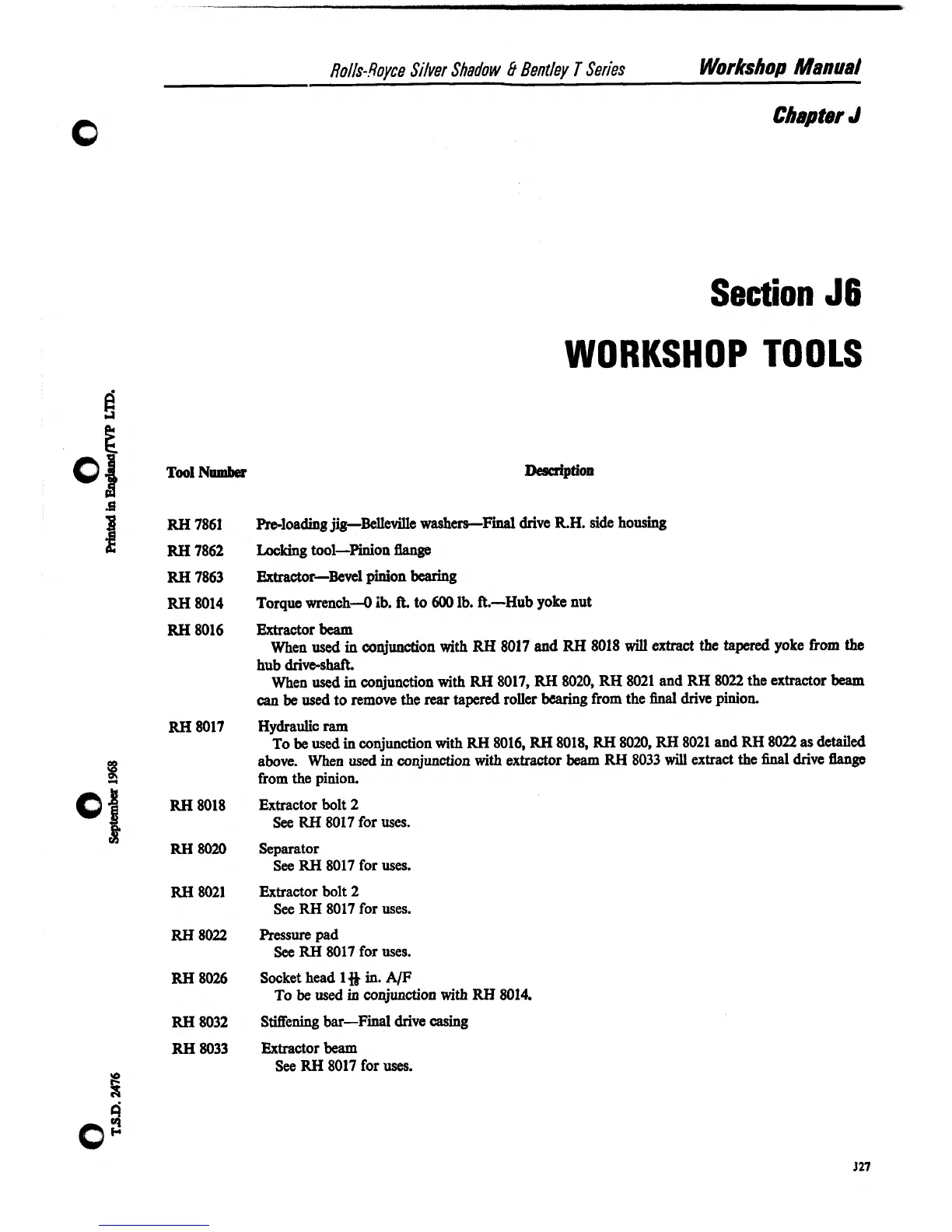

WORKSHOP TOOLS
RH
7861
Pre-loading
jig-Belleville washers-Final drive
R.H.
side housing
RH
7862 Locking tool-Pinion
flang
RH
7863 Extractor-Bevel pinion bearing
RH
8014
Torque wrench--0
ib, ft. to
600
lb. R.-Hub yoke nut
RH
8016 Extractor
beam
When used in conjunction with
RH
8017
and
RH
8018
will
extract the tapered yoke from
the
hub drive-shaft.
When used
in
conjunction with
RH
8017,
RH
8020,
RH
8021 and
RH
8022 the extractor
beam
can
be
used
to remove the
rear
tapered roller
bearing
from the
final
drive pinion.
RH
8017 Hydraulic
ram
To
be
used
in
conjunction with
RH
8016,
RH
8018,
RH
8020,
RH
8021 and RH 8022 as detailed
above. When
used
in conjunction
with
extractor
beam
RH
8033
will
extract the final drive hge
from the pinion.
RH 8018 Extractor bolt 2
See
RH
8017 for
uses.
RH
8020
Separator
See
RH
8017 for uses.
RH
8021 Extractor bolt 2
See
RH 8017 for uses.
RH
8022 Pressure pad
See
RH
8017 for uses.
RH
8026
Socket head
la
in.
A/F
To
be
used
in
conjunction
with
RH
8014.
RH
8032
Stiffening bar-Final drive
casing
RH
8033 Extractor
beam
See
RH
8017 for
uses.
