Receiver-To remove Receiver bulb-To renew
Cars fitted with cartridge player
1. Disconnect the battery.
2.
Remove the control knobs and spindle nuts.
3. Remove the ash-tray and unscrew the 2 B.A.
bolts securing the receiver brackets.
4.
Withdraw the receiver and disconnect the
Lucar connectors, aerial lead and earth braid.
Receiver fuse-To renew
Radiomobi le
1.
Remove the receiver as described in Receiver
-
To remove.
2. Unscrew and remove the two screws securing
the scale retainer and remove the embellisher and
scale.
3.
Using a screwdriver, carefully lift the small
metal lamp shield. Removal of this exposes the blue
filter for the bulb.
4. Carefully withdraw the filter and bulb holder;
remove the bulb from the holder.
1.
Remove the trim as described in Receiver
-
To remove.
2.
Remove the white coloured fuse holder from
its clip on the receiver and depress one end of
the fuse
contalner against spring pressure and turn
PY e
anti-clockwise, then remove the fuse.
1.
Remove the receiver as described in Receiver
-
To remove.
2.
Rotate the manual tune spindle to bring the
scale pointer to one end of the scale.
3.
Unscrew and remove the two screws securing
the back-plate, and carefully slide the back-plate
sideways to clear the pointer and rest on the flats
of the selector push buttons.
4.
Push a piece of 4 mm. P.V.C. sleeving over
the bulb; unscrew the bulb from its holder.
Motorola
1. Remove the receiver as described in
Receiver
- To remove.
2.
Unscrew and remove the screw which secures
the top cover of the receiver and remove the cover.
This screw is positioned at the rear of the receiver.
3. Turn the bulb anti-clockwise.

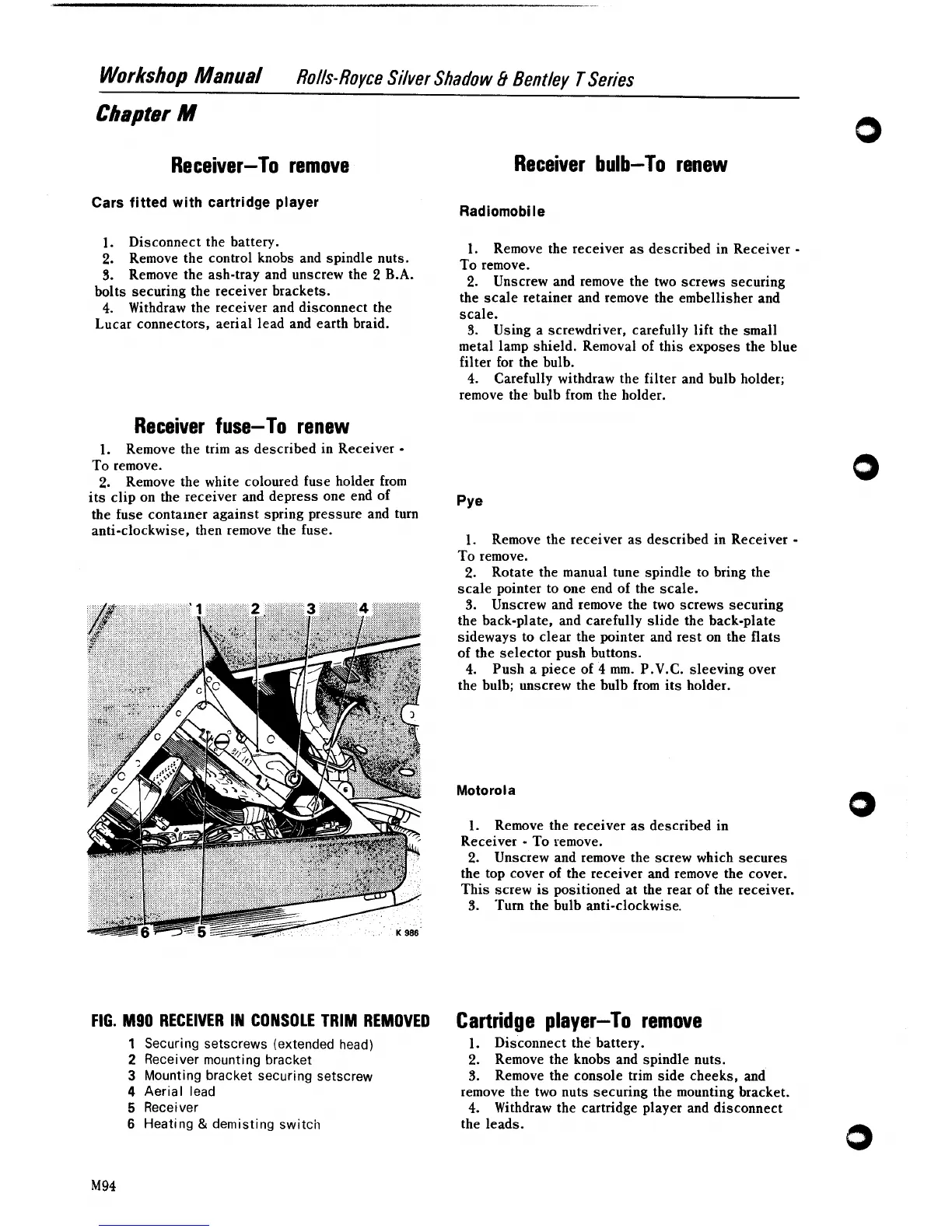

FIG. M90 RECEIVER IN CONSOLE TRIM REMOVED
Cartridge player-To remove
1 Securing setscrews (extended head) 1. Disconnect the battery.
2 Receiver mounting bracket
2.
Remove the knobs and spindle nuts.
3 Mounting bracket securing setscrew 3. Remove the console trim side cheeks, and
4 Aerial lead
remove the two nuts securing the mounting bracket.
5 Receiver
4. Withdraw the cartridge player and disconnect
6 Heating & demisting switch
the leads.
