Workshop Manual Rolls-Royce Silver Shadow & Bentley T Series
Chapter M
Water tap relay
Interior
lamps relay
Height control
re1 ay
Additional water tap relay
Alternator field relay (except on cars fitted with
C.A.V. alternators)
Rear window demister relay
Headlamp dimming relay (fitted to certain early cars)
relay
safety

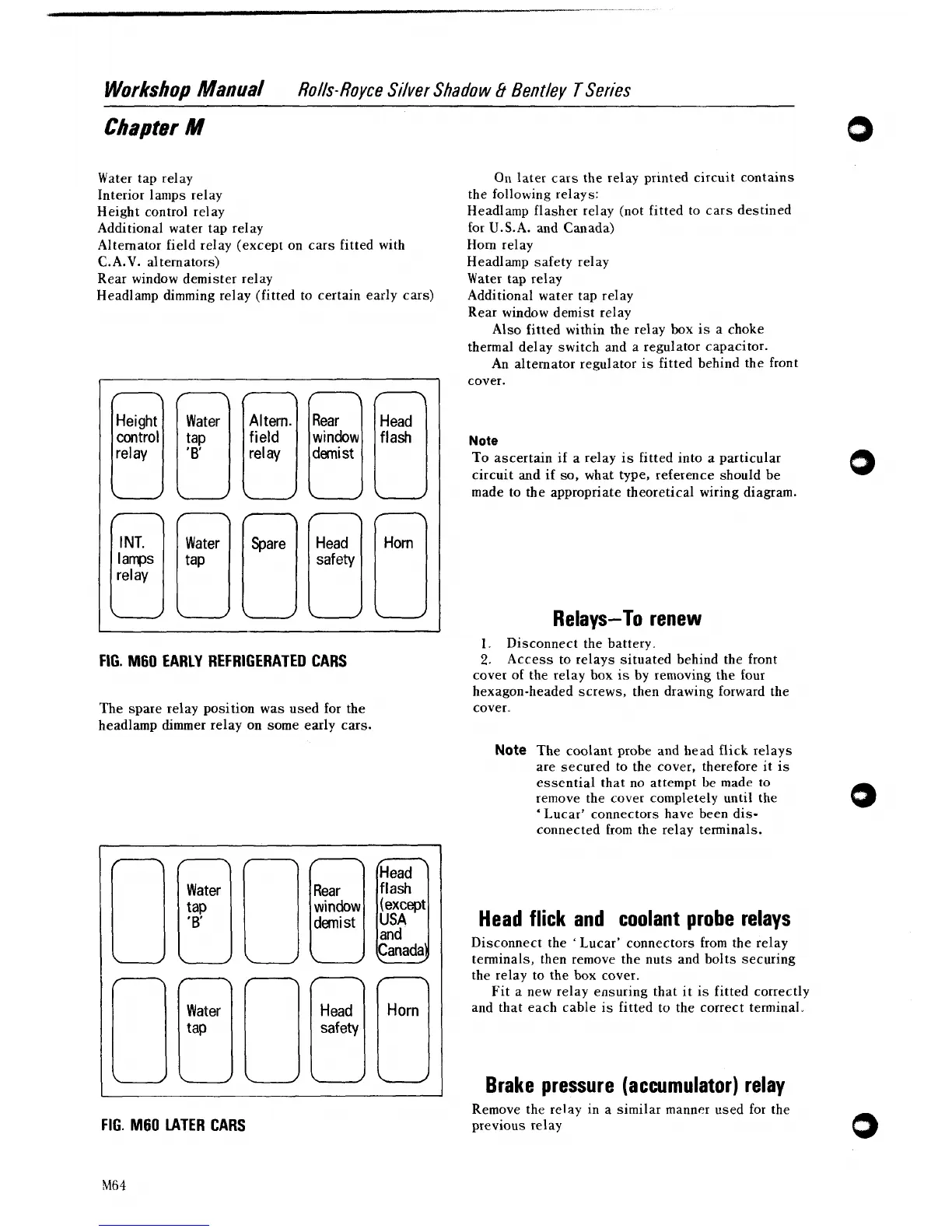

FIG. M60 EARLY REFRIGERATED CARS
The spare relay position was used for the
headlamp dimmer relay on some early cars.
Water
FJ
window
demi st
FIG. M60 LATER CARS
M6 4
safety
I"
(except
On later cars the relay printed circuit contains
the following relays:
Headlamp flasher relay (not fitted to cars destined
for U.S.A. and Canada)
Horn relay
Headlamp safety relay
Water tap relay
Additional water tap relay
Rear window demist relay
Also fitted within the relay box is a choke
thermal delay switch and a regulator capacitor.
An alternator regulator is fitted behind the front
cover.
Note
To ascertain if a relay is fitted into a particular
circuit and
if so, what type, reference should be
made to the appropriate theoretical wiring diagram.
0
Relays-To renew
1. Disconnect the battery.
2.
Access to relays situated behind the front
cover of the relay box is by removing the four
hexagon-headed screws, then drawing forward the
cover.
Note The coolant probe and head flick relays
are secured to the cover, therefore it is
essential that no attempt be made to
remove the cover completely until the
' Lucar' connectors have been dis-
connected from the relay terminals.
Head flick and coolant probe relays
Disconnect the ' Lucar' connectors from the relay
terminals, then remove the nuts and bolts securing
the relay to the box cover.
Fit a new relay ensuring that it is fitted correctly
and that each cable is fitted to the correct terminal.
Brake pressure (accumulator) relay
Remove the relay in a similar manner used for the
previous relay
