Rolls-Royce Corniche - Electrical System

To Next Page

To Previous Page

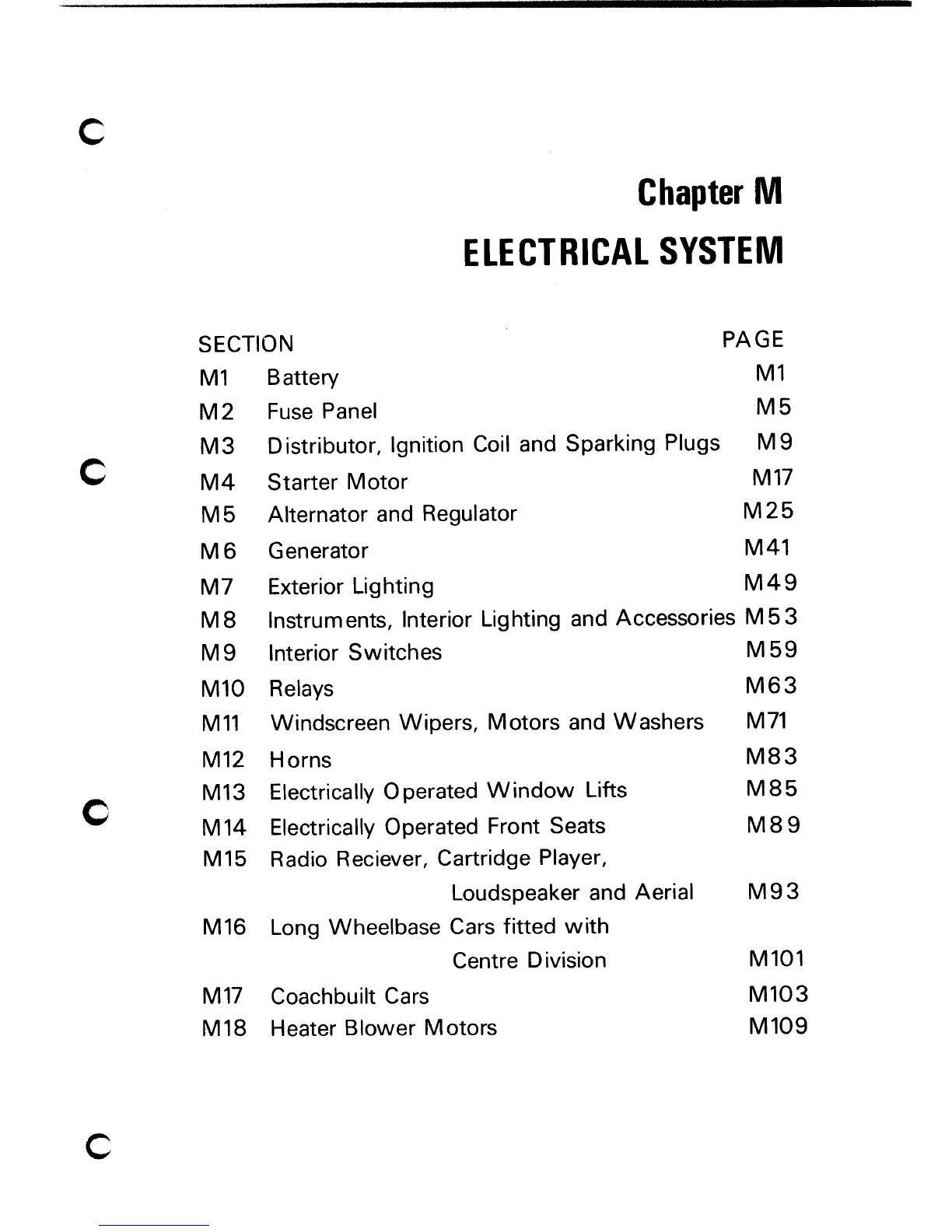

SECTION

MI Battery

M2 Fuse Panel

Chapter

ELECTRICAL SYSTEM

PAGE

M3 Distributor, Ignition Coil and Sparking Plugs

M4 Starter Motor M 17

Alternator and Regulator M25

Generator M 41

Exterior Lighting M49

Instruments, lnterior Lighting and Accessories

Interior Switches M 59

Relays M63

Windscreen Wipers, Motors and Washers

M71

Horns M83

Electrically

perated Window Lifts

M85

Electrically Operated Front Seats M89

Radio Reciever, Cartridge Player,

Loudspeaker and Aerial M93

Long Wheelbase Cars fitted with

Centre Division

MI01

Coachbuilt Cars MI03

Heater Blower Motors M 109
