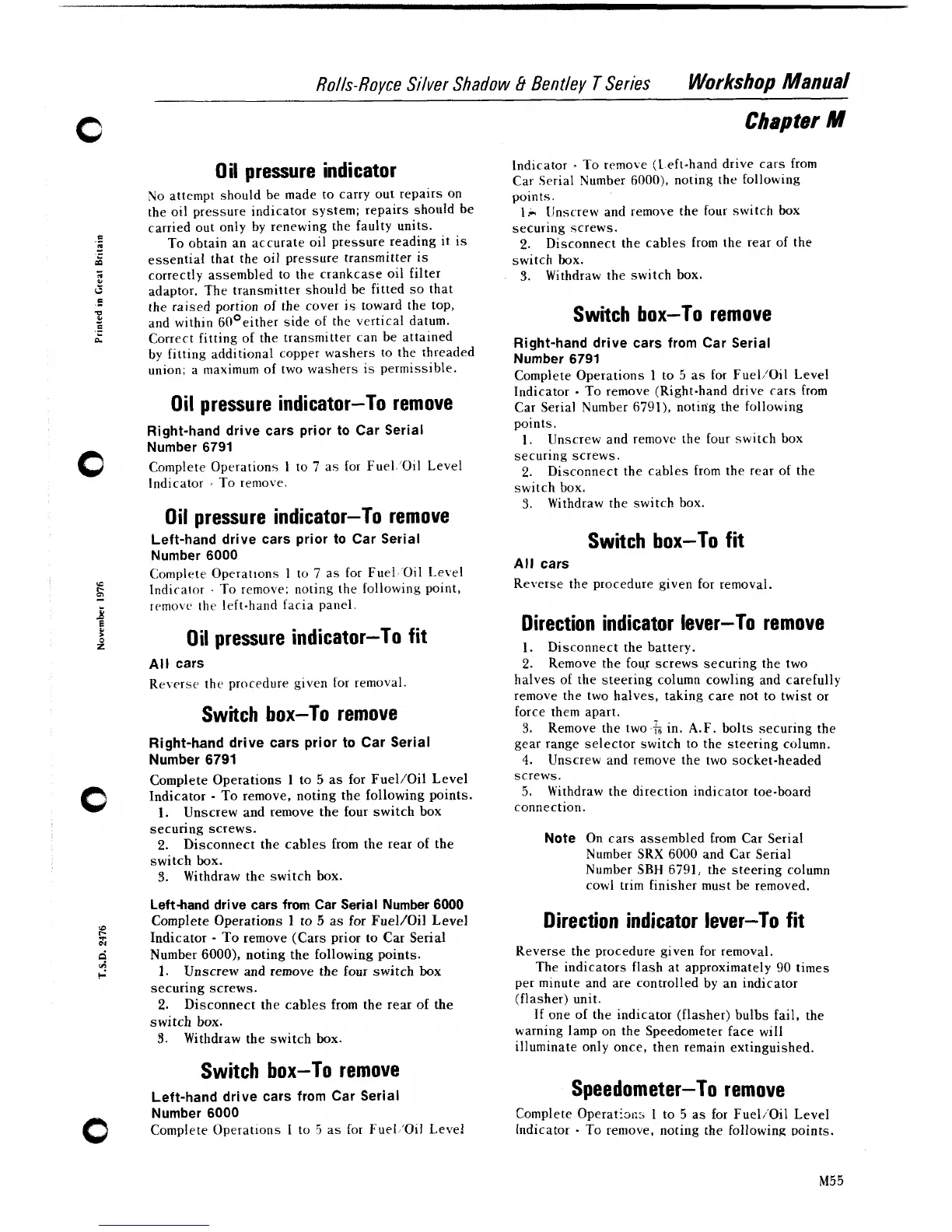

Rolls-Rovce Silver Shadow
€i
Bentley
T
Series
Workshop
Manual
Oil pressure indicator
No attempt should be made to carry out repairs on
the oil pressure indicator system; repairs should be
carried out only by renewing the faulty units.
To obtain an accurate oil pressure reading it is
essential that the oil pressure transmitter is
correctly assembled to the crankcase oil filter
adaptor. The transmitter should be fitted so that
the raised portion of the cover is toward the top,
and within
60°either side of the vertical datum.
Correct fitting of the transmitter can be attained
by fitting additional copper washers to the threaded
union;
a
maximum of two washers is permissible.
Oil pressure indicator-To remove
Right-hand drive cars prior
to
Car Serial
Number 6791
Complete Operations
1
to 7 as for Fuel.'Oil Level
lndicator
-
To remove.
Oil pressure indicator-To remove
Left-hand drive cars prior to Car Serial
Number 6000
Complete Operations 1 to
7
as for Fuel
011
Le~el
lndicalor
-
To remove, noting the following point,
rrmoLc the left-hand facia panel
Oil pressure indicator-To fit
All cars
Reverse the procedure given for removal.
Switch box-To remove
Right-hand drive cars prior to Car Serial
Number 6791
Complete Operations
1
to
5
as for Fuel/Oil Level
Indicator
-
To remove, noting the following points.
1.
Unscrew and remove the four switch box
securing screws.
2.
Disconnect the cables from the rear of the
switch box.
3.
Withdraw the switch box.
Left-hand drive cars from Car Serial Number 6000
Complete Operations
1
to
5
as for Fuel/Oil Level
Indicator
-
To remove (Cars prior to Car Serial
Number
6000),
noting the following points.
1.
Unscrew and remove the fonr switch box
securing screws.
2.
Disconnect the cables from the rear of the
switch box.
3.
Withdraw the switch box.
Switch box-To remove
Left-hand drive cars from Car Serial
Number 6000
Complete
Operations
1 to
5
as for Fuel 'Oil Level
lndicator
-
To rrmove ',L.eft-hand drive cars from
Car Serial Number 6000), noting the following
points.
1- Iinscrew and remove the four switch box
securing screws.
2.
Disconnect the cables from the rear of the
switch box.
3.
Withdraw the switch box.
Switch box-To remove
Right-hand drive cars from Car Serial
Number 6791
Complete Operations
1
to
5
as for Fuel/Oil Level
Indicator
-
To remove (Right-hand drive cars from
Car Serial Number
6791), notifig the following
points.
1.
Unscrew arid remove the four switch box
securing screws.
2.
Disconnect the cables from the rear of the
switch box.
3.
Withdraw the switch box.
Switch box-To fit
All cars
Reverse the procedure given for removal.
Direction indicator lever-To remove
1. Disconnect the battery.
2.
Remove the fouj screws securing the two
halves of the steering column cowling and carefully
remove the two halves, taking care not to twist or
force them apart.
3.
Remove the two
&
in.
A.F.
bolts securing the
gear range selector switch to the steering column.
4.
Unscrew and remove the two socket-headed
screws.
5.
Withdraw the direction indicator toe-board
connection.
Note
On cars assembled from Car Serial
Number SRX 6000 and Car Serial
Number
SBH
6791; the steering column
cowl trim finisher must be removed.
Direction indicator lever-To
fit
Reverse the procedure given for removal.
The indicators flash at approximately
90
times
per minute and are controlled by an indicator
(flasher) unit.
If one of the indicator (flasher) bulbs fail, the
warning lamp on the Speedometer face
will
illuminate only once, then remain extinguished.
Speedometer-To remove
Complete 0peratia;s 1 to
5
as for Fuel/'Oil Level
lndicator
-
To remove, noting the following points.
