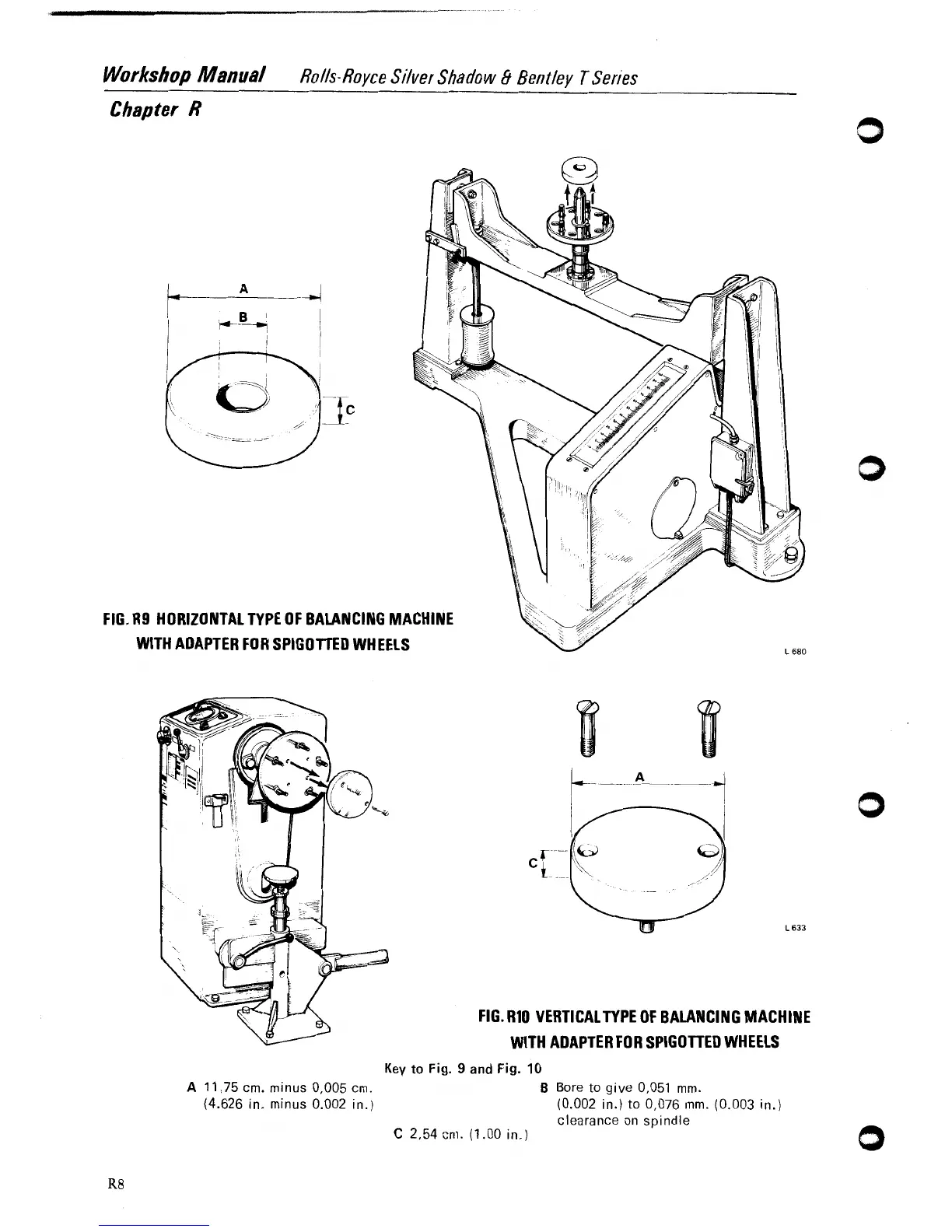

Rolls-Royce Corniche - Horizontal Type of Balancing Machine with Adapter for Spigotted Wheels; Vertical Type of Balancing Machine with Adapter for Spigotted Wheels

Workshop Manual
Rolls-Royce Silver Shadow 8 Bentley T Series
Chapter R
FIG.
Key
A 11,75 cm. minus 0,005 cm.
(4.626 in. minus 0.002 in.)
to Fig. 9
2,54 cm.
FIG. R10 VERTICALTYPE OF BALANCING MACHINE
WITH ADAPTER FOR SPIGOTTED WHEELS
and Fig. 10
B Bore to give 0,051 mm.
(0.002 in.) to 0,076
mm. (0.003 in.)
clearance on spindle
(1.00 in.)
