Fuel/oil level indicator
Inaccurate readings are usually caused by a
distorted float arm on the rheostat unit. Take care
-.- ~.- ~
The fuel level indicator is controlled by a float
not to foul the baffles in the fuel tank when fitting
o~erated rheostat unit in the fuel tank.
a new rheostat unit.
Faulty operation of the indicator may be due to
insecure wiring or connections. If the instrument
Fuelloil level indicator-To remove
- - - - - - . -
constantly indicates 'EMPTY', check the wiring
Right-hand drive cars prior to Car Serial
and connections of the feed wires. If the instrument
~~~b~~ 6791
- - --
constantly reads ' FULL' check the earth
connections to the indicator body, the
fuel/oil
1.
Remove the fuel/oil level change-over switch
change-over switch connections and the wiring of
button.
the fuel tank unit. Check the earthing of the fuel
2. Disconnect the battery.
tank.
3. Remove the small panel surrounding the handbrake.

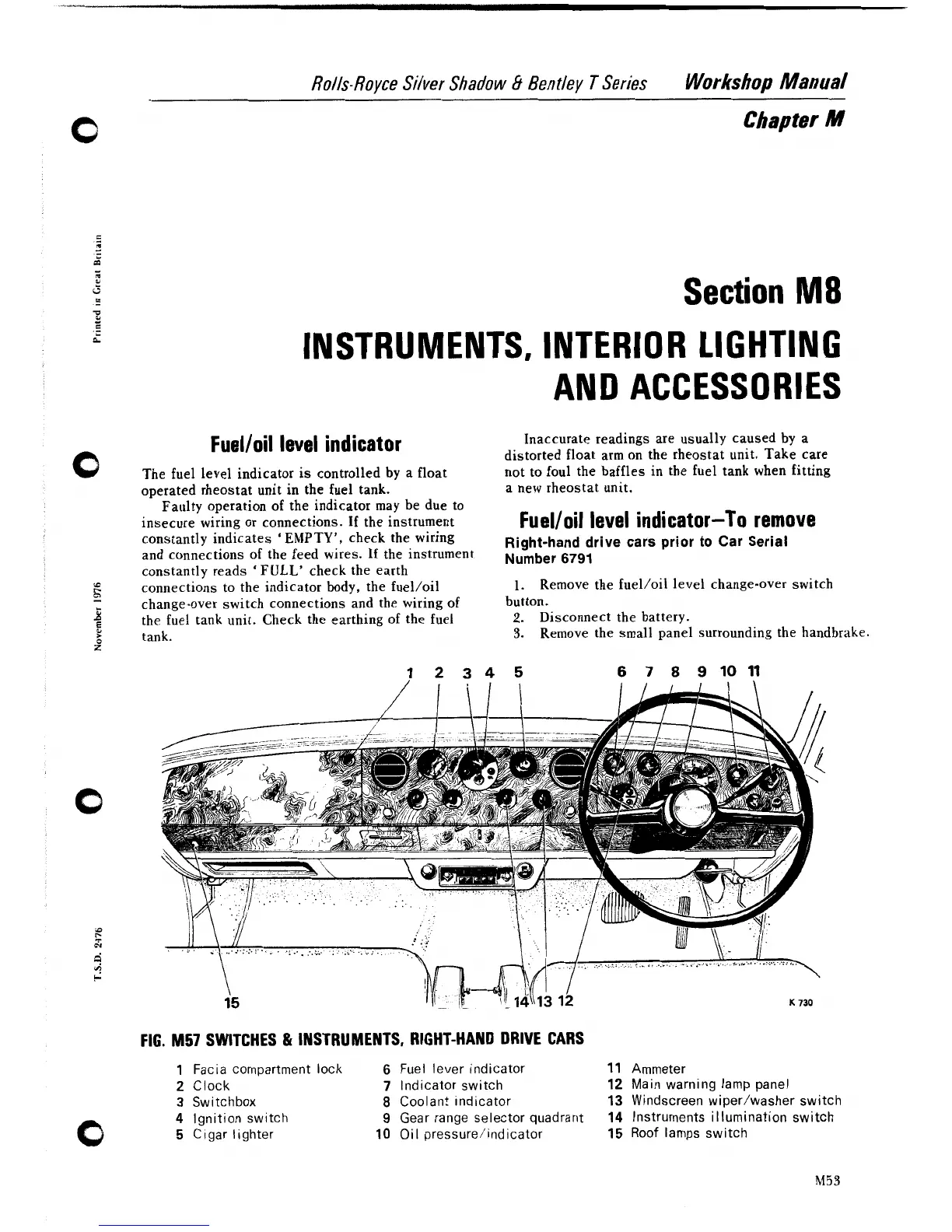

FIG. M57 SWITCHES & INSTRUMENTS, RIGHT-HAND DRIVE CARS
1 Facia compartment lock 6 Fuel lever indicator 11 Ammeter
2 Clock 7 Indicator switch 12 Main warning lamp panel
3 Switchbox 8 Coolant indicator 13 Windscreen wiper/washer switch
4 Ignition switch 9 Gear range selector quadrant
14 Instruments illumination switch
5 Cigar lighter 10 Oil pressure/indicator 15 Roof lamps switch
