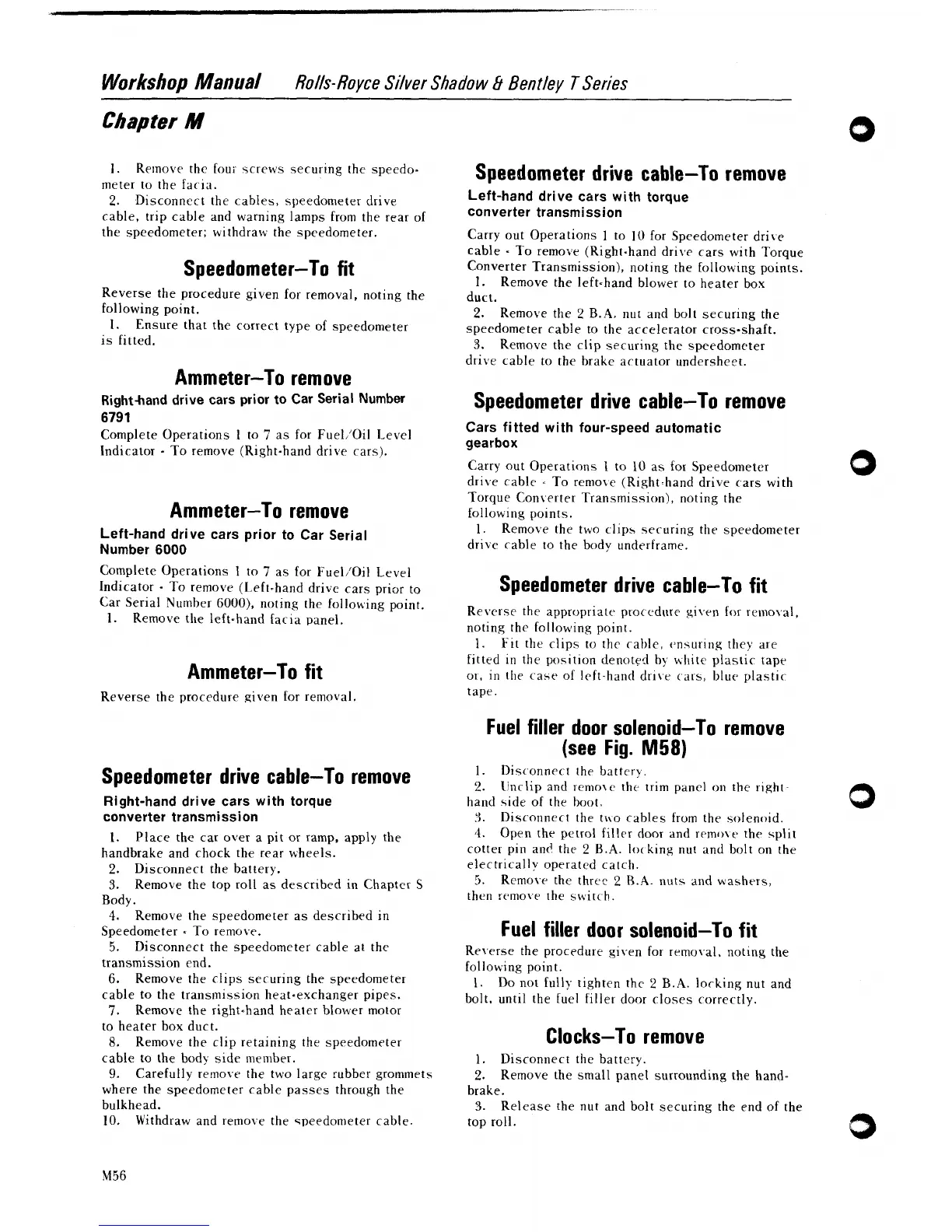

Workshop
Manual
Rolls-Royce Silver Shadow
8
Bentley
T
Series
Chapter
M
1.
Remove the fou~ screws securing the speedo-
meter to the
facia.
2.
Disconnect the cables, speedometer drive
cable, trip cable and warning lamps from the rear of
the speedometer; withdraw the speedometer.
Speedometer-To fit
Reverse the procedure given for removal, noting the
following point.
1. Ensure that the correct type of speedometer
is fitted.
Ammeter-To remove
Right-hand drive cars prior to Car Serial Number
679
1
Complete Operations 1 to
7
as for Fuel/'Oil Level
Indicator
-
To remove (Right-hand drive cars).
Ammeter-To remove
Left-hand drive cars prior to Car Serial
Number
6000
Complete Operations 1 to
7
as for Fuel/'Oil Level
Indicator
-
To remove (Left-hand drive cars prior to
Car Serial Number
6000), noting the following point.
1.
Remove the left-hand facia panel.
Ammeter-To fit
Reverse the procedure given for removal.
Speedometer drive cable-To remove
Right-hand drive cars with torque
converter transmission
1.
Place the car over a pit or ramp, apply the
handbrake and chock the rear wheels.
2.
Disconnect the battery.
3.
Remove the top roll as described in Chapter S
Body.
4.
Remove the speedometer as described in
Speedometer
-
To remove.
5.
Disconnect the speedometer cable at the
transmission end.
6.
Remove the clips securing the speedometer
cable to the transmission heat-exchanger pipes.
7.
Remove the right-hand heater blower motor
to heater box duct.
8.
Remove the clip retaining the speedometer
cable to the body side member.
9.
Carefully remove the two large rubber grommets
where the speedometer cable passes through the
bulkhead.
10. Withdraw and remove the speedometer cable.
Speedometer drive cable-To remove
Left-hand drive cars with torque
converter transmission
Carry out Operations
1
to 10 for Speedometer drive
cable
-
To remove (Right=hand drive cars with Torque
Converter Transmission), noting the following points.
1.
Remove the left-hand blower to heater box
duct.
2.
Remove the
2
B.A. nut and bolt securing the
speedometer cable to the accelerator cross-shaft.
3.
Remove the clip securing the speedometer
drive cable to the brake actuator undersheet.
Speedometer drive cable-To remove
Cars fitted with four-speed automatic
gearbox
Carry out Operations
I
to
10
as for Speedometer
drive cable
-
To remo1e (Right;hand drive cars with
Torque
ConIerter Transmission), noting the
following points.
1. Remove the two clips securing the speedometer
drive cable to the body underframe.
Speedometer drive cable-To fit
Reverse the appropriate proc.edure given
for
removal,
noting the following point.
1.
Fit the clips to the cal)le, cansuring they ale
fitted in the position denoted by white plastic tape
01,
in the case of left-hand dri1.e cars, blue plastic
tape.
Fuel filler door solenoid-To remove
(see Fig.
M58)
1. Disconnect the battery.
2.
linclip
and
remole
the
trim panel
on
the right-
hand side of the hoot.
3.
Disconnect the tr~o cables from the solenoid.
4.
Open the petrol filler door and rrmrnr the split
cotter pin and the
2
B.A.
lo( king nut and bolt on the
electrically
operated catch.
5.
Remo1.e the three
2
R.A.
nuts
and
washers,
then
:emo\.e the s~vitch.
Fuel filler door solenoid-To fit
Reverse the procedure given for removal, noting the
following point.
1.
Do not fully tighten the
2
B.A.
locking nut and
bolt. until the fuel filler door closes correctly.
Clocks-To remove
1. Disconnect the battery.
2.
Remove the small panel surrounding the hand-
brake.
3.
Release the nut and bolt securlng the end of the
top roll.
