Rolls-Royce Corniche - Exhaust System Alignment

Rolls- R~yce Silver Shadow & Bentley T Series
Workshop Manual
Chapter Q

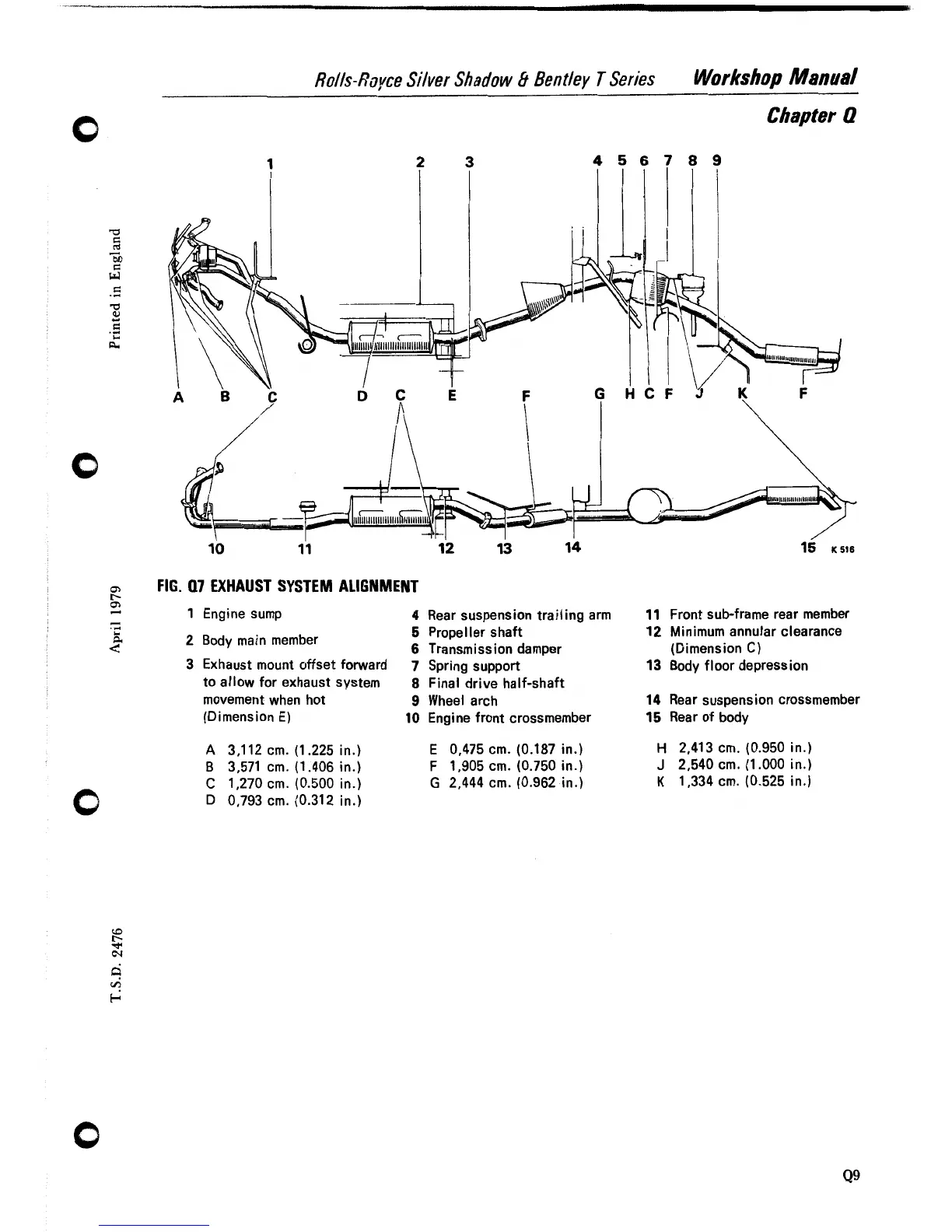

FIG. 07 EXHAUST SYSTEM ALIGNMENT
1 Engine sump
4 Rear suspension trailing arm
11 Front sub-frame rear member
5 Propeller shaft
12 Minimum annular clearance
2 Body main member
6 Transmission damper (Dimension C)
3 Exhaust mount offset forward
7 Spring support
13 Body floor depression
to allow for exhaust system
8 Final drive half-shaft
movement when hot
9 Wheel arch
14 Rear suspension crossmember
(Dimension
E)
10 Engine front crossmember 15 Rear of body
A 3,112 cm. (1.225 in.) E 0,475 cm. (0.187 in.)
H 2,413 cm. (0.950 in.)
B 3,571 cm. (1.406 in.) F 1,905cm. (0.750 in.) J 2,540 cm. (1.000 in.)
C 1,270 cm. (0.500 in.) G 2,444 cm. (0.962 in.) K 1,334 cm. (0.525 in.)
D 0,793 cm. (0.31 2 in.)
