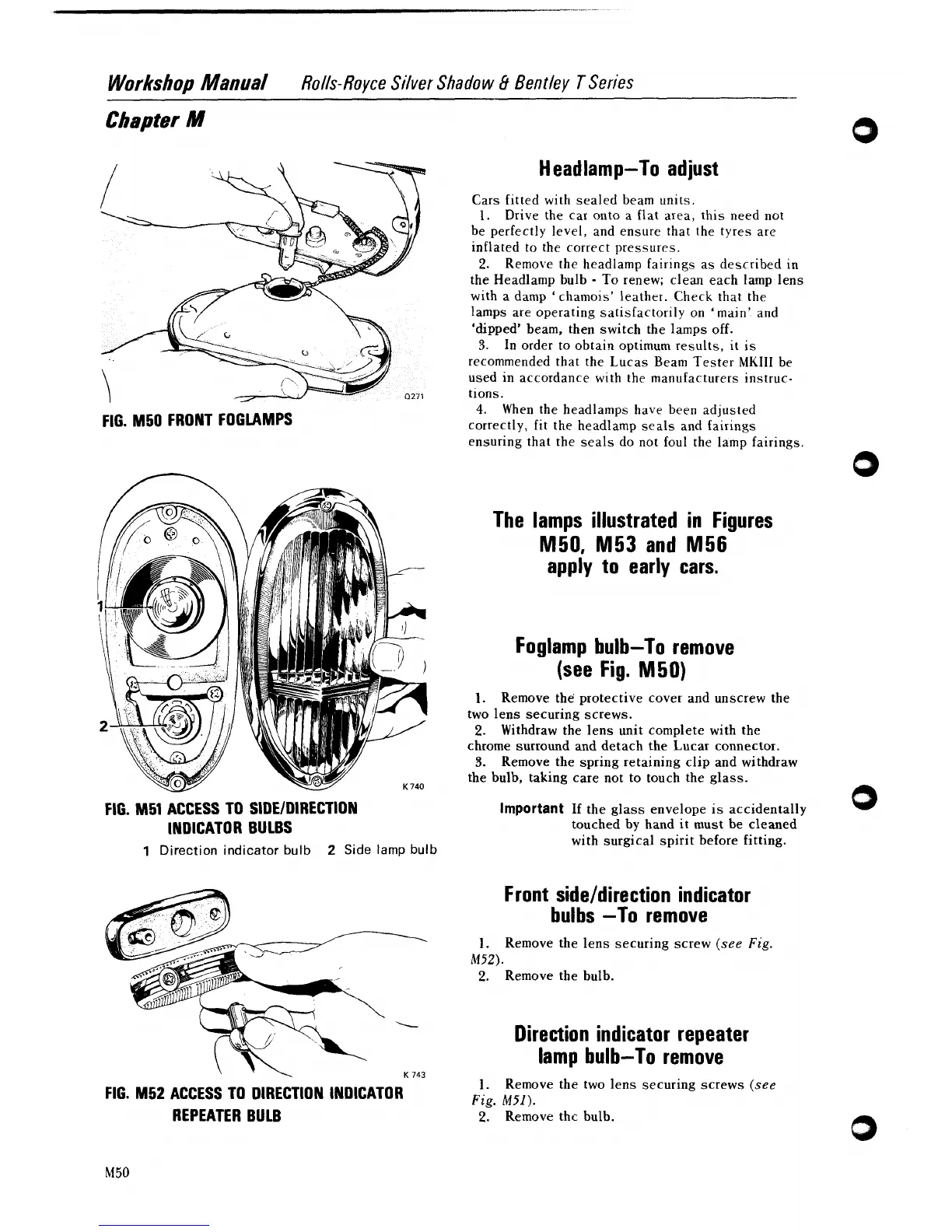

Workshop Manual
Rolls- Royce Silver Shadow 8 Bentley T Series
Chapter M
FIG. M50 FRONT FOGLAMPS
n
FIG. 111151 ACCESS TO SIDEIDIRECTION
INDICATOR BULBS
1 Direction indicator bulb 2 Side lamp bulb
!\ K 743
FIG. M52 ACCESS TO DIRECTION INDICATOR
REPEATER BULB
H eadlamp-To adjust
Cars fitted with sealed beam units.
1.
Drive the car onto a flat area, this need not
be perfectly level, and ensure that the tyres are
inflated to the correct pressures.
2.
Remove the headlamp fairings as described in
the
Headlamp bulb - To renew; clean each lamp lens
with a damp
' chamois' leather. Check that the
lamps are operating satisfactorily on 'main' and
'dipped' beam, then switch the lamps off.
3. In order to obtain optimum results, it is
recommended that the Lucas Beam Tester
MKIII be
used in accordance with the manufacturers instruc-
tions.
4. When the headlamps have been adjusted
correctly, fit the
headlamp seals and fairings
ensuring that the seals do not foul the lamp fairings.
The lamps illustrated in Figures
M50, M53 and M56
apply to early cars.
Foglamp bulb-To remove
(see Fig.
M50)
1.
Remove the protective cover and unscrew the
two lens securing screws.
2.
Withdraw the lens unit complete with the
chrome surround and detach the Lucar connector.
3.
Remove the spring retaining clip and withdraw
the bulb, taking care not to touch the glass.
Important If the glass envelope is accidentally
touched by hand it must be cleaned
0
with surgical spirit before fitting.
Front sideldirection indicator
bulbs -To remove
1.
Remove the lens securing screw
(see Fig.
M52).
2. Remove the bulb.
Direction indicator repeater
lamp bulb-To remove
1.
Remove the two lens securing screws (see
Fig. M51).
2. Remove thc bulb.
