Rolls-Royce Corniche - View of Electrically Operated Front Seats

Workshop Manual
Rolls- Royce Silver Shadow 8 Bentley T Series
Chapter df 0

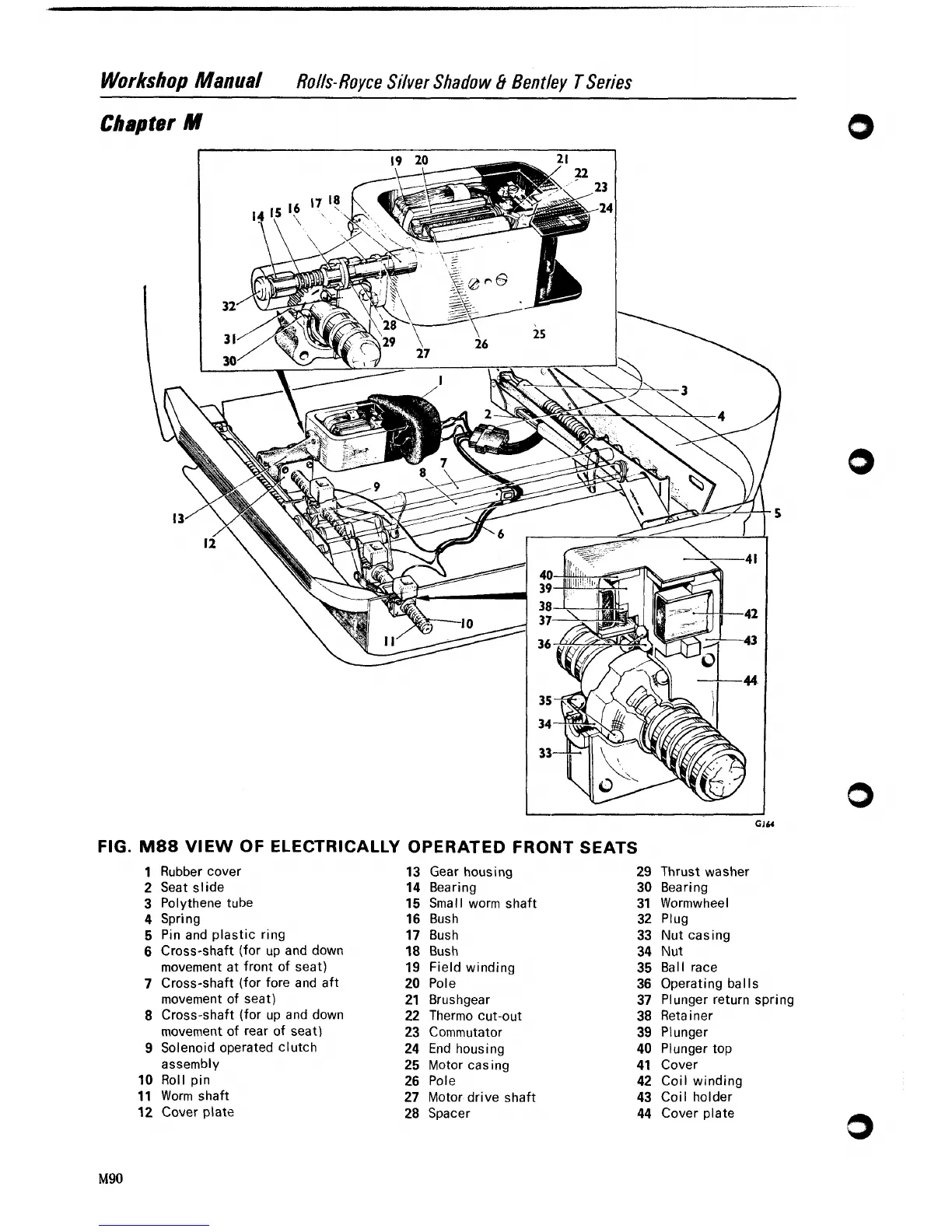

FIG. M88 VIEW OF ELECTRICALLY OPERATED FRONT SEATS
1 Rubber cover
2 Seat slide
3 Polythene tube
4 Spring
5 Pin and plastic ring
6 Cross-shaft (for up and down
movement at front of seat)
7 Cross-shaft (for fore and aft
movement of seat)
8 Cross-shaft (for up and down
movement of rear of seat)
9 Solenoid operated clutch
assembly
10 Roll pin
11 Worm shaft
12 Cover plate
13 Gear housing
14 Bearing
15 Smal
l worm shaft
16 Bush
17 Bush
18 Bush
19 Field winding
20 Pole
21 Brushgear
22 Thermo cut-out
23 Commutator
24 End housing
25 Motor casing
26 Pole
27 Motor drive shaft
28 Spacer
29 Thrust washer
30 Bearing
31 Wormwheel
32 Plug
33 Nut casing
34
Nut
35 Ball race
36 Operating balls
37 Plunger return spring
38 Retainer
39 Plunger
40 Plunger top
41 Cover
42 Coil winding
43 Coil holder
44 Cover plate
