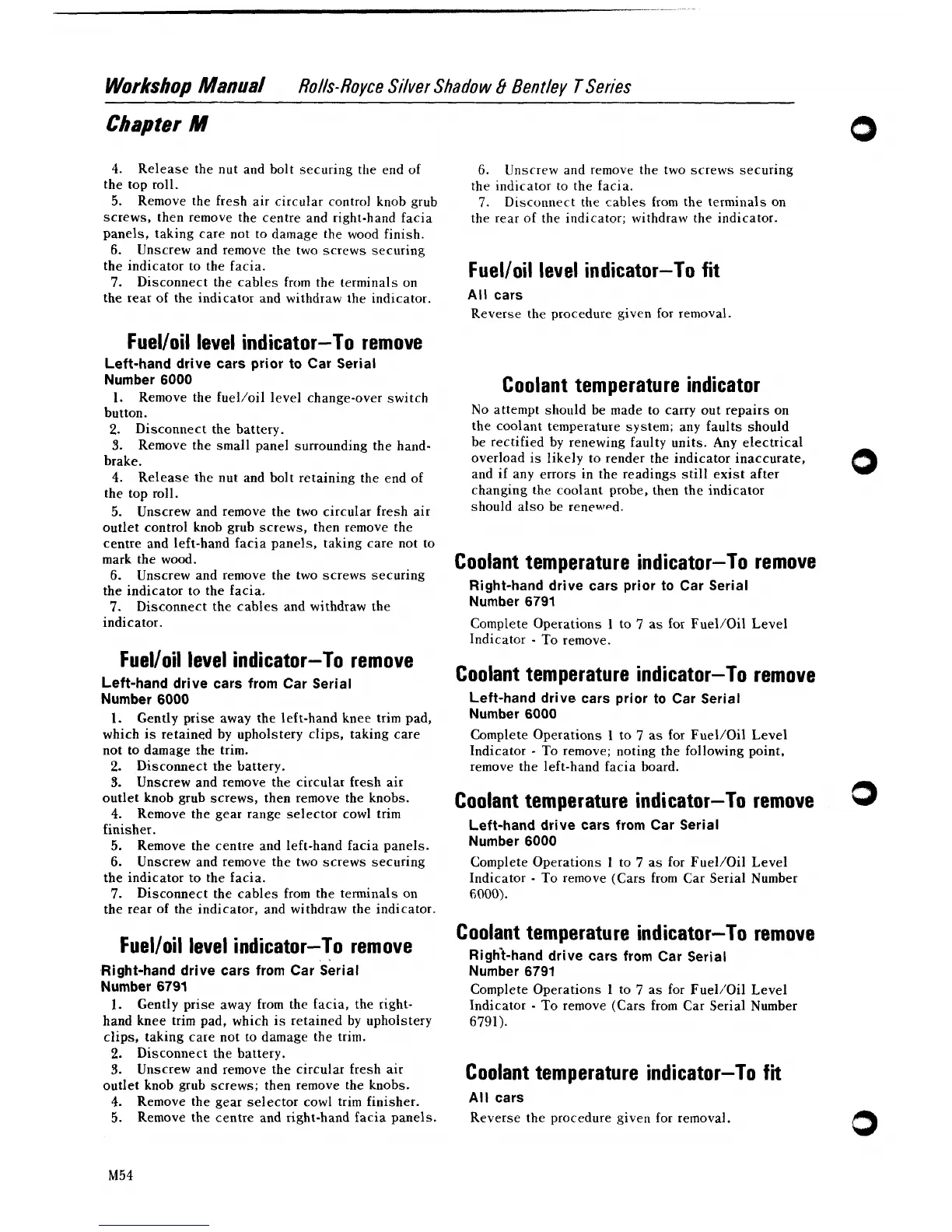

Workshop
Manual
Rolls- Royce Silver Shadow
8
Bentle y
T
Series
Chapter
M
4.
Release the nut and bolt securing tlie end of
the top roll.
5.
Remove the fresh air circular control knob grub
screws, then remove the centre and right-hand
facia
panels, taking care not to damage the wood finish.
6.
Unscrew and remove the two screws securing
the indicator to the
facia.
7.
Disconnect the cables from the terminals on
the rear of the indicator and withdraw the indicator.
Fuel/oil level indicator-To remove
Left-hand drive cars prior to Car Serial
Number 6000
1.
Remove the
fuel/oil level change-over switch
button.
2.
Disconnect the battery.
3.
Remove the small panel surrounding the hand-
brake.
4.
Release the nut and bolt retaining the end of
the top roll.
5.
Unscrew and remove the two circular fresh air
outlet control knob grub screws, then remove the
centre and left-hand
facia panels, taking care not to
mark the wood.
6.
Unscrew and remove the two screws securing
the indicator to the
facia.
7.
Disconnect the cables and withdraw the
indicator.
Fuel/oil level indicator-To remove
Left-hand drive cars from Car Serial
Number 6000
1.
Gently prise away the left-hand knee trim pad,
which is retained by upholstery clips, taking care
not to damage the trim.
2.
Disconnect the battery.
3.
Unscrew and remove the circular fresh air
outlet knob grub screws, then remove the knobs.
4.
Remove the gear range selector cowl trim
finisher.
5.
Remove the centre and left-hand facia panels.
6.
Unscrew and remove the two screws securing
the indicator to the
facia.
7.
Disconnect the cables from the terminals on
the rear of the indicator, and withdraw the indicator.
Fuelloil level indicator-To remove
,Right-hand drive cars from Car serial
Number 6791
1.
Gently prise away from the facia, the right-
hand knee trim pad, which is retained by upholstery
clips, taking care not to damage the trim.
2.
Disconnect the battery.
3.
Unscrew and remove the circular fresh air
outlet knob grub screws; then remove the knobs.
4.
Remove the gear selector cowl trim finisher.
5.
Remove the centre and right-hand facia panels.
6.
Unscrew and remove the two screws securing
the indicator to the
facia.
7.
Disconnect the cables from the terminals on
the rear of the indicator; withdraw the indicator.
Fuelloil level indicator-To fit
All cars
Reverse the procedure given for removal.
Coolant temperature indicator
No attempt should be made to carry out repairs on
the coolant temperature system; any faults should
be rectified by renewing faulty units. Any electrical
overload is likely to render the indicator inaccurate,
and if any errors in the readings still exist after
changing the coolant probe, then the indicator
should also be
renewed.
Coolant temperature indicator-To remove
Right-hand drive cars prior to Car Serial
Number 6791
Complete Operations 1 to
7
as for Fuel/Oil Level
Indicator
-
To remove.
Coolant temperature indicator-To remove
Left-hand drive cars prior to Car Serial
Number 6000
Complete Operations
1
to
7
as for Fuel/Oil Level
Indicator
-
To remove; noting the following point.
remove the left-hand
facia board.
Coolant temperature indicator-To remove
3
Left-hand drive cars from Car Serial
Number 6000
Complete Operations 1 to
7
as for Fuel/Oil Level
Indicator
-
To remove (Cars from Car Serial Number
6000).
Coolant temperature indicator-To remove
Right-hand drive cars from Car Serial
Number 6791
Complete Operations 1 to
7
as for Fuel/'Oil Level
Indicator
-
To remove (Cars from Car Serial Number
6791).
Coolant temperature indicator-To fit
All cars
Reverse the procedure given for removal.
