Rolls-Royce Corniche - Exploded View of Lucas 6 W Wiper Motor

To Next Page

To Previous Page

Rolls- Royce Silver Shadow

Bentley

Series

Workshop

Manual

Chapter

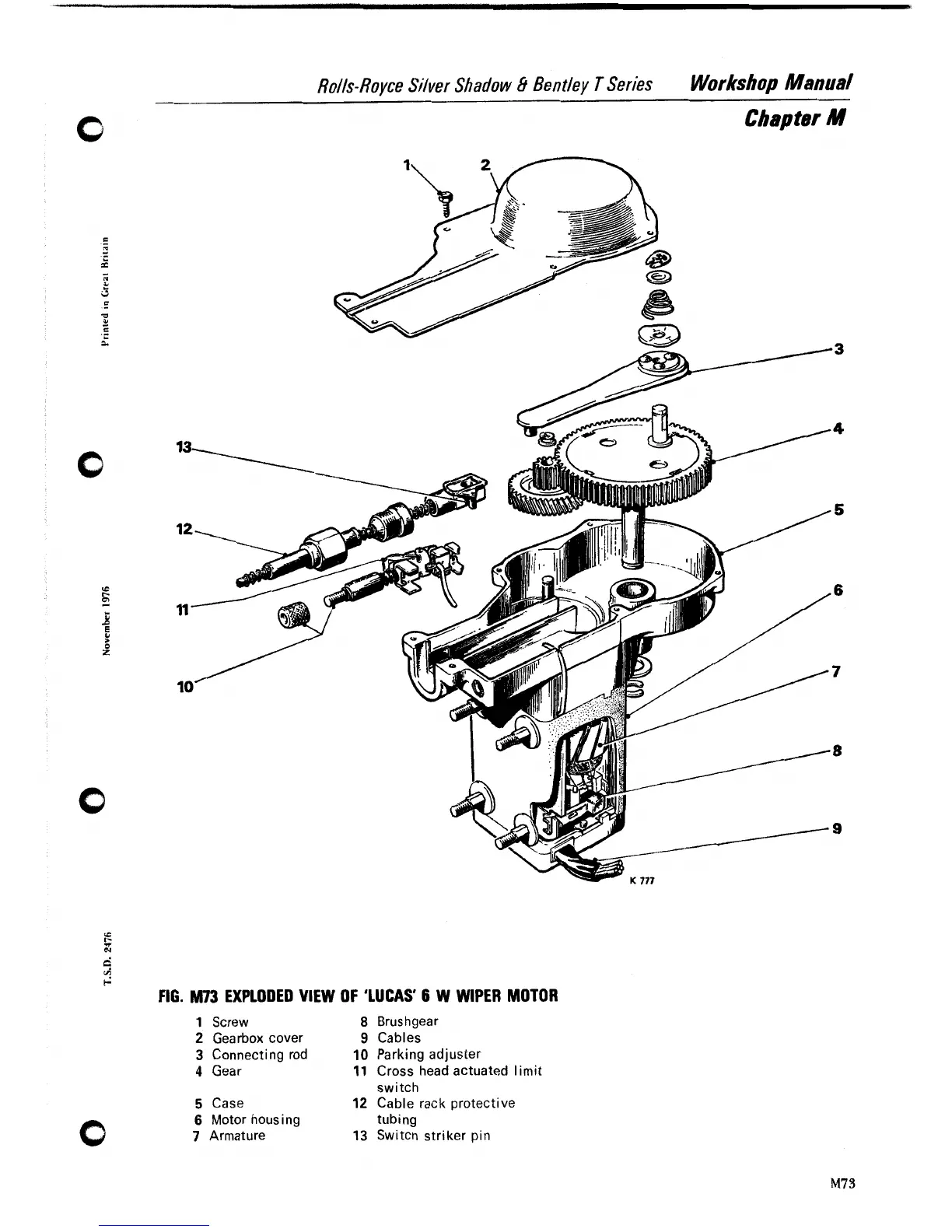

FIG. M73 EXPLODED VIEW OF 'LUCAS'

W WIPER MOTOR

Screw

Brushgear

Gearbox cover

Cables

Connecting rod

Parking adjuster

Gear

Cross head actuated limit

switch

Case

Cable rack protective

Motor housing tubing

Armature

Switch striker pin
