Workshop
Manual
Rolls 8oyce Silver Shadow
d
Bentley
7
Ser~es
Chapter
K
2.
Slacken the
2
B.A.
setscrew which secures the
Purge line filter-To fit
nylon retaining clip.
Fit the purge line filter by reversing the procedure
des-
3.
Withdraw the component from the clip.
cribed for removal, noting the following point.
1.
Ensure that the rubber hoses are in a good con-
dition and new hose retaining clips are used
(if
fitted).
FIG.

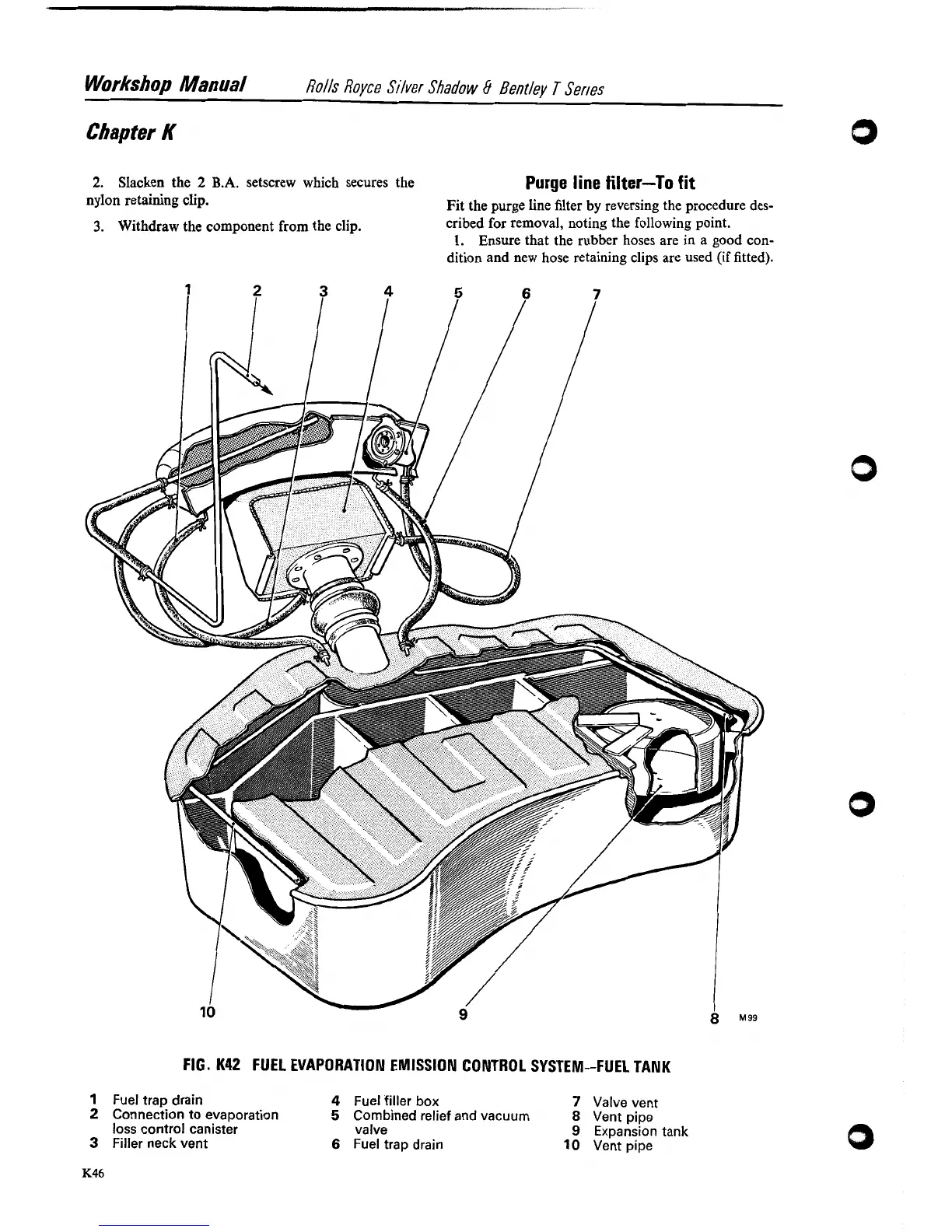

K42 FUEL EVAPORATION EMISSION CONTROL SYSTEM-FUEL TANK
1
Fuel trap drain
4
Fuel filler box
7
Valve vent
2
Connection to evaporation
5
Combined relief and vacuum
8
Vent pipe
loss control canister valve
9
Expansion tank
3
Filler neck vent
6
Fuel trap drain
10
Vent pipe
K46
