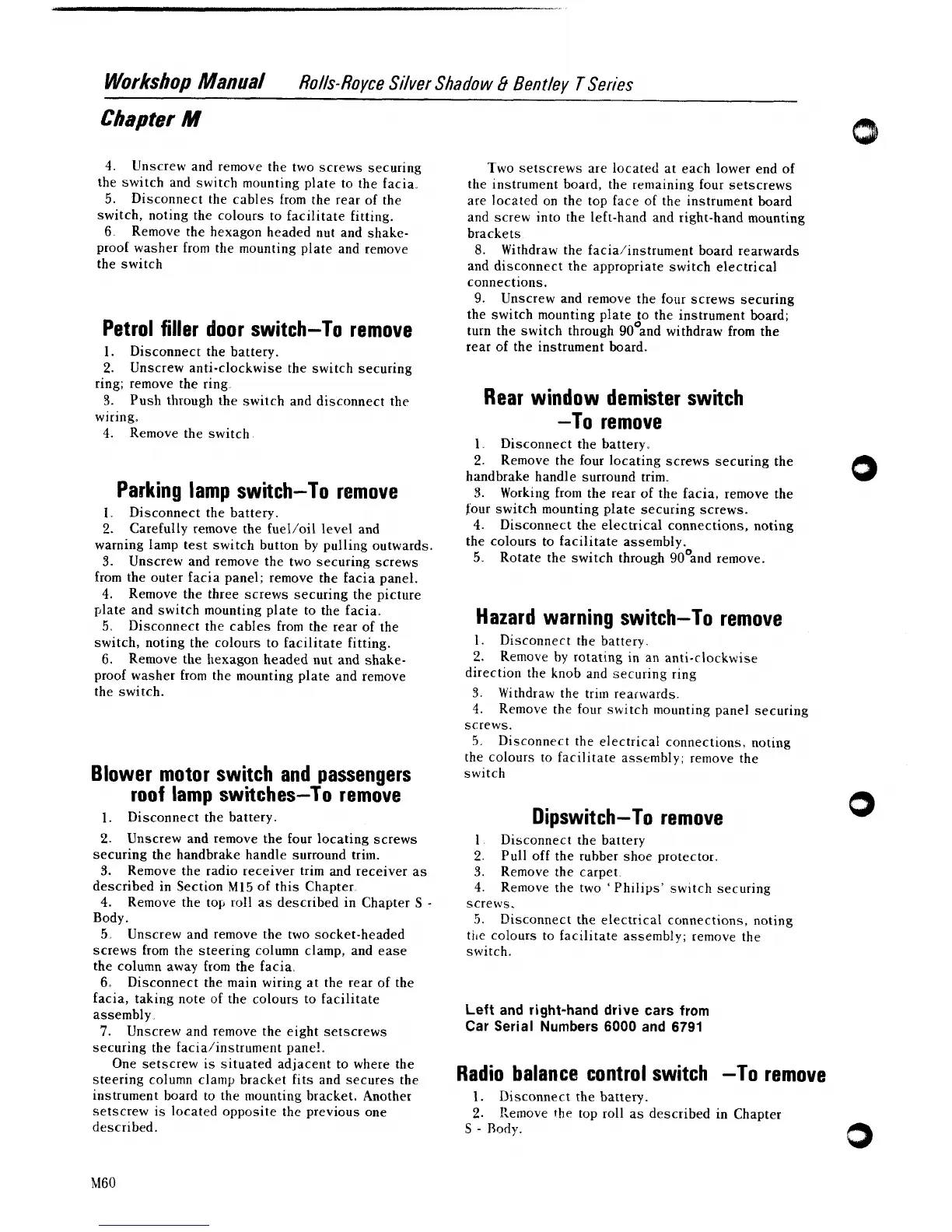

8
Bentlev
T
Series
Chapter
M
4.
Unscrew and remove the two screws securing
the switch and switch mounting plate to the
facia.
5.
Disconnect the cables from the rear of the
switch, noting the colours to facilitate fitting.
6.
Remove the hexagon headed nut and shake-
proof washer from the mounting plate and
remove
the switch
Petrol filler door switch-To remove
1.
Disconnect the battery.
2.
Unscrew anti-clockwise the switch securing
ring; remove the ring
3.
Push through the switch and disconnect the
wiring.
4.
Remove the switch
Parking lamp switch-To remove
1.
Disconnect the battery.
2.
Carefully remove the fuel/oil level and
warning lamp test switch button by pulling outwards.
3.
Unscrew and remove the two securing screws
from the outer
facia panel; remove the facia panel.
4.
Remove the three screws securing the picture
plate and switch mounting plate to the
facia.
5.
Disconnect the cables from the rear of the
switch, noting the colours to facilitate fitting.
6.
Remove the hexagon headed nut and shake-
proof washer from the mounting plate and remove
the switch.
Blower motor switch and passengers
roof
lamp
switches-To remove
1.
Disconnect the battery.
2.
Unscrew and remove the four locating screws
securing the handbrake handle surround trim.
3.
Remove the radio receiver trim and receiver as
described in Section
M15
of this Chapter
4.
Remove the top roll as described in Chapter
S
-
Body.
5.
Unscrew and remove the two socket-headed
screws from the steering column clamp, and ease
the column away from the
facia.
6.
Disconnect the main wiring at the rear of the
facia, taking note of the colours to facilitate
assembly
7.
Unscrew and remove the eight setscrews
securing the
facia/instrument pane!.
One setscrew is situated adjacent to where the
steering column clamp bracket fits and secures the
instrument board to the mounting bracket. Another
setscrew is located opposite the previous one
described.
Two setscrews are located at each lower end of
the instrument board, the remaining four setscrews
are located on the top face of the instrument board
and screw into the left-hand and right-hand mounting
brackets
8.
Withdraw the facialinstrument board rearwards
and disconnect the appropriate switch electrical
connections.
9.
Unscrew and remove the four screws securing
the switch mounting plate
(50
the instrument board;
turn the switch through
90
and withdraw from the
rear
~f
the instrument board.
Rear window demister switch
-To remove
1.
Disconnect the battery.
2.
Remove the four locating screws securing the
handbrake handle surround trim.
3.
Working from the rear of the facia, remove the
four switch mounting plate securing screws.
4.
Disconnect the electrical connections, noting
the colours to facilitate assembly.
5.
Rotate the switch through 9o0and remove.
Hazard warning switch-To remove
1.
Disconnect the battery.
2.
Remove by rotating in an anti-clockwise
direction the knob and securing ring
3.
Withdraw the trim rearwards.
4.
Remove the four switch mounting panel securing
screws.
5.
Disconnect the electrical connections, noting
the colours to facilitate assembly;
remove the
switch
Dipswitch-To remove
1
Disconnect the battery
2.
Pull off the rubber shoe protector.
3.
Remove the carpet.
4.
Remove the two
'
Philips' switch securing
screws.
5.
Disconnect the electrical connections, noting
tire colours to facilitate assembly; remove the
switch.
Left
and right-hand drive cars from
Car Serial Numbers
6000
and
6791
Radio balance control switch -To remove
1.
Disconnect the battery.
2.
Remove the top roll as described in Chapter
S
-
rod)^.
