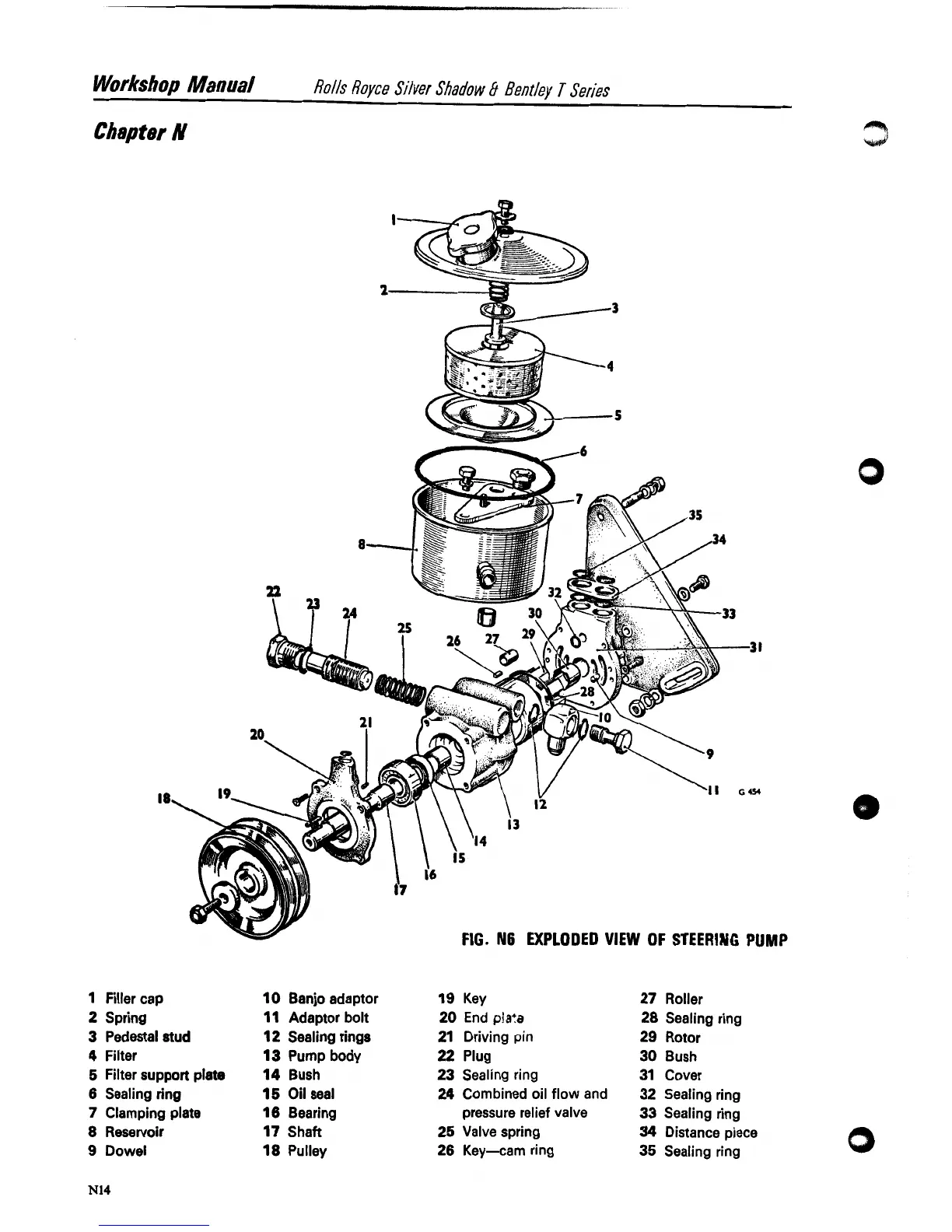

Rolls-Royce Corniche - Exploded View of Steering Pump

Workshop Manual
Rolls Royce Silver Shadow B Bentley T Series
Chapter N
1 Filler cap
2 Spring
3 Pedestal stud
4 Filter
5 Filter support plate
6 Sealing ring
7 Clamping plate
8 Reservoir
9 Dowel
10 Banjo adaptor
11 Adaptor bolt
12 Sealing rings
13 Pump body
14 Bush
15 Oil seal
16 Bearing
17 Shaft
18 Pulley
19 Key 27 Roller
20 End plala
28 Sealing ring
21 Driving pin
29 Rotor
22 Plug 30 Bush
23 Sealing ring 31 Cover
24 Combined oil flow and
32 Sealing ring
pressure relief valve
33 Sealing ring
25 Valve spring
34 Distance piece
26 Key-cam ring
35 Sealing ring
