Rolls-Royce Corniche - Cut-Away View of Fuel Tank (Early Cars)

Workshop Manual
Rolls Royce Silver Shadow B Bentley 7. Series
A
Chapter K

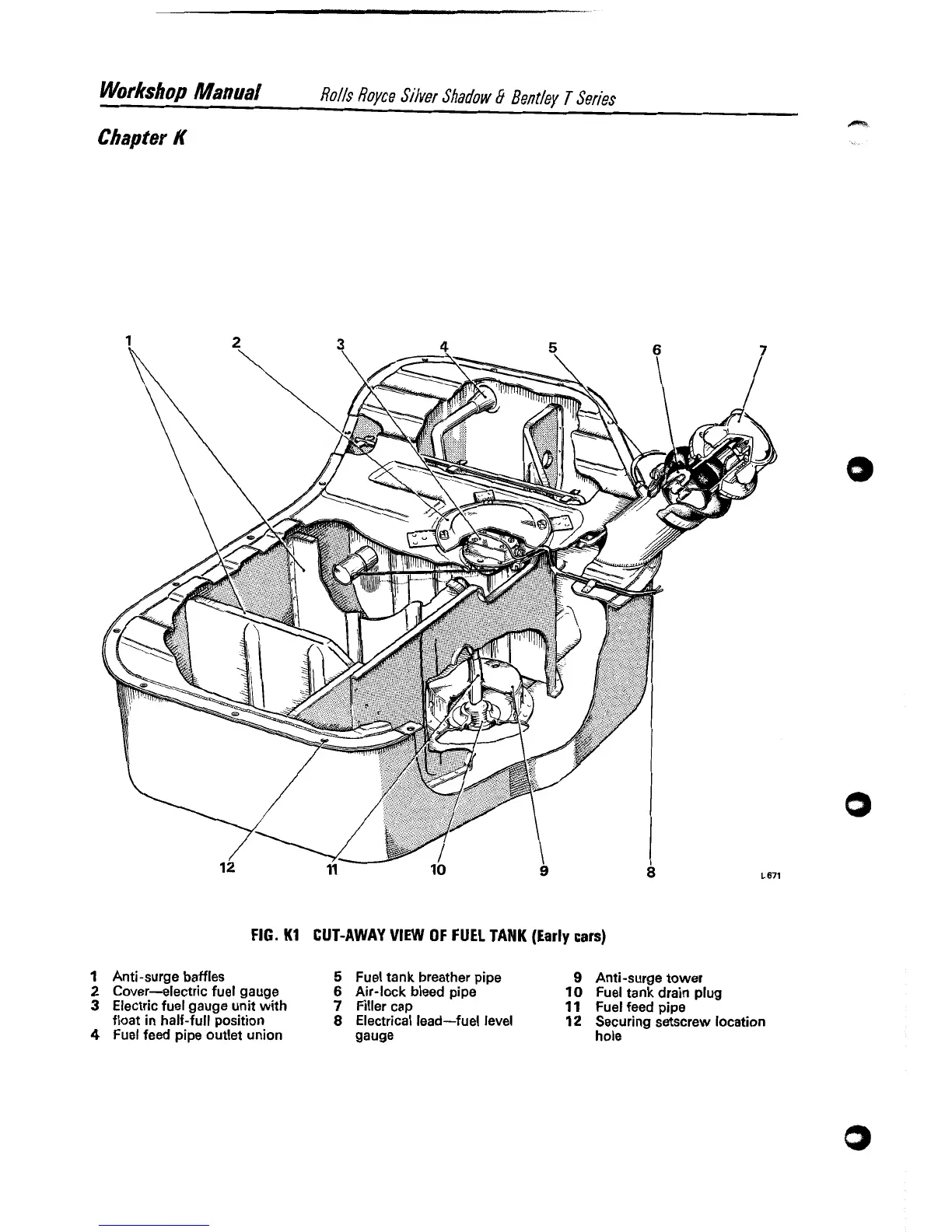

FIG. K1 CUT-AWAY VIEW OF FUEL TANK (Early cars)
1 Anti-surge baffles 5 Fuel tank breather pipe
9 Anti-surge tower
2 Cover-electric fuel gauge 6 Air-lock bleed pipe
10 Fuel tank drain plug
3 Electric fuel gauge unit with 7 Filler cap
11 Fuel feed pipe
float in half-full position
8 Electrical lead-fuel level 12 Securing setscrew location
4 Fuel feed pipe outlet union gauge hole
