Workshop
Manual
Rolls- Rovce Silver Shadow
8
Bentlev
T
Series
Chapter
M
Fuse panel-To remove
The glass fuses are fitted with a plastic extractor.
The bakelite fuses have an integral grip.
The flasher unit, the thermal cut-out with re-set
button and the
headlamp protection thermal cut-out
have blade terminals. To remove the fuse panel
printed circuit base proceed as follows.
1.
Rem8,ve the knurled retaining screw and the
six screws securing the panel to the support
framework.
2.
Lift the fuse panel carefully from the
supporting frame sufficiently to enable the wiring
loom sockets to be detached. Each socket is
designed to fit only the terminals from which it was
removed.
Diode-To renew
It is important to note the position of the existing
diodes to ensure correct assembly before attempting
to renew one or more of the diodes. The red end of
the diode is fitted toward the left-hand terminal of
the fuse panel. The diode connectors are secured
to the fuse panel by small nuts, bolts and washers.

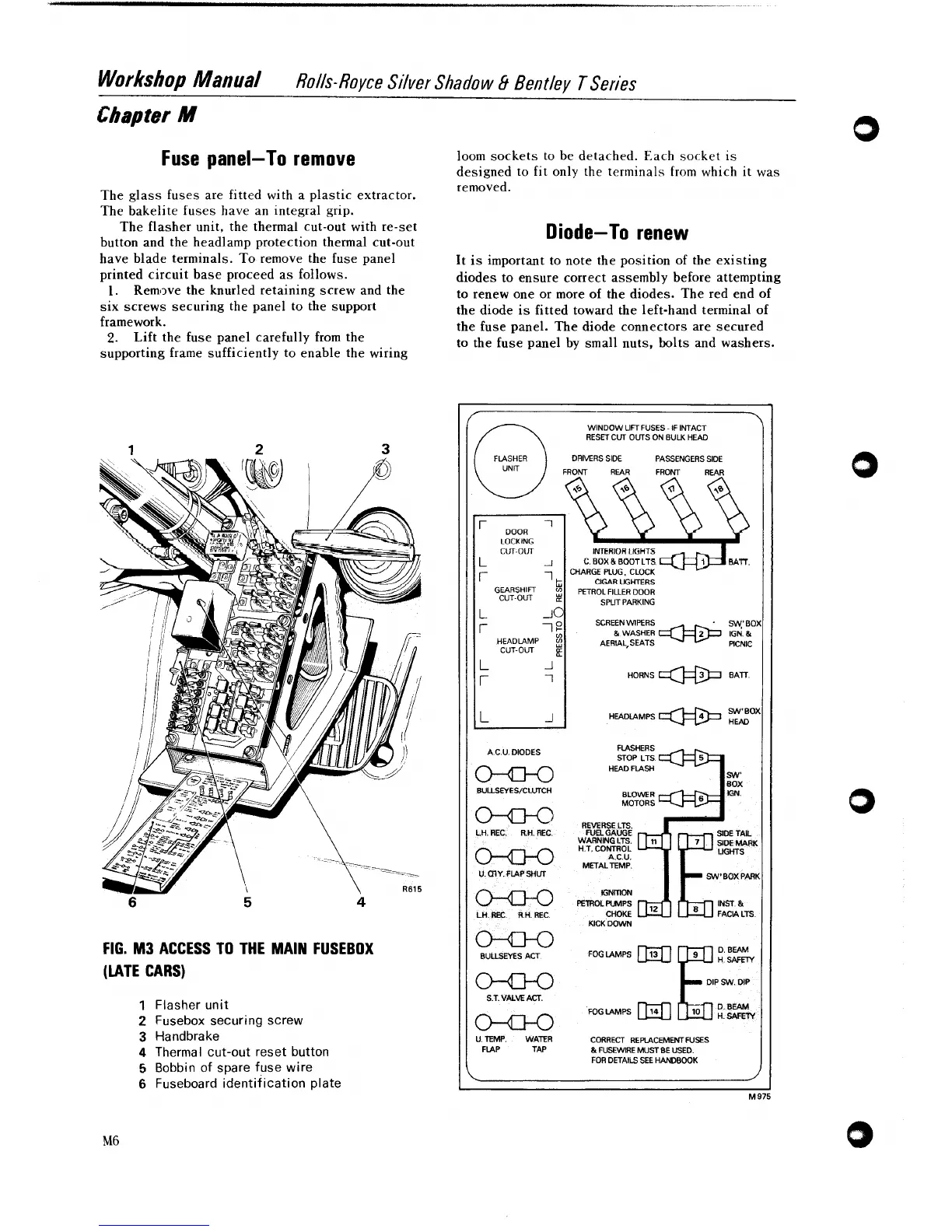

FIG. M3 ACCESS TO THE MAIN FUSEBOX
(LATE CARS)
1
Flasher unit
2
Fusebox securing screw
3
Handbrake
4
Thermal cut-out reset button
5
Bobbin of spare fuse wire
6
Fuseboard identification plate
WINDOW LIFTFUSES
-
IF INTACT
RESETCUT OUTS ON BULK HEAD
(
FLASHER DRMRSSIOE PASSENGERS SIDE
\
UNrr
I
FRONT REAR FROM REAR
LOCKING
INTERIOR LIGHTS
C BOX
&
BOOT
LTS
CHARGE PLUG, CLOCK
SWTPARKING
L
SCREEN WlPERS SW8' BOX
&WASHER IGN
&
AERtAL,SEATS
FiCNlC
HORNS BATT
A C
U
DIODES
0-a-o
BCIUNES/CLWCH
OdIO
U
(I1Y
FLAP YlW
KASHERS
STOP LTS
HEAD FLASH
BLOWER
MOTORS
REVERSE
LTS
H T CONTROL
A
C
U
METALTEMP
SW'BOXPAM
ffim
PEmOC
AJMPS
CHOKE FACIA LTS
KICK
DOWN
BUUSEYES ACT
FOG LAMPS
Lmm
I
I
DIP SW MP
ST
VALVE
ACT
FOGLAMPS D BEAM
H
SAFER
U
TEMP
WATER CORRECT
REPL4CEMENT
FUSES
FLAP TAP
&
FUSEWIRE MUSTBE USED
FOR DETAILS SEE
HANDBOOK
